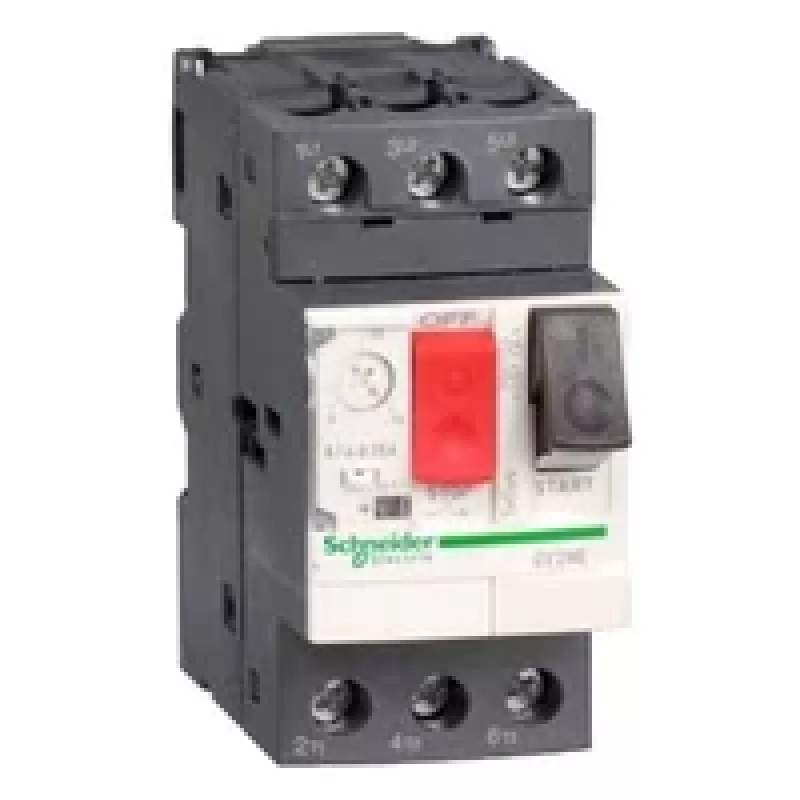

APC Schneider Electric TeSys GV2 motorový ochranný spínač, 2,5-4 A, IP20

The APC Schneider Electric TeSys GV2 is a high-performance motor protection circuit breaker designed for reliable protection of motors and electrical circuits. With an adjustable thermal protection range of 2.5-4 A and a magnetic tripping current of 51 A, it ensures precise and safe operation. Rated for operational voltages up to 690 V AC and with a breaking capacity of 100 kA at 400/415 V, this 3-pole device is ideal for industrial applications. Its IP20 protection degree and screw clamp terminals make it suitable for installation on 35 mm DIN rails.

Advantages

This circuit breaker offers thermal-magnetic tripping technology, combining overload and short-circuit protection in one compact unit. It features push-button control for easy reset and manual operation. With high mechanical and electrical durability (100,000 cycles each), it provides long-lasting performance. The device complies with international standards including IEC 60947-2 and UL 60947-4-1, ensuring global acceptance.

Suitable for

• Motor protection in industrial machinery
• Control panels and distribution boards
• HVAC systems and pumps
• Conveyor systems and compressors

Key specifications

• Thermal protection adjustment range: 2.5-4 A
• Magnetic tripping current: 51 A
• Rated operational voltage (Ue): 690 V AC 50/60 Hz
• Rated insulation voltage (Ui): 690 V AC 50/60 Hz
• Rated impulse withstand voltage (Uimp): 6 kV
• Breaking capacity (Icu) at 400/415 V: 100 kA
• Number of poles: 3P
• Control type: Push-button
• Mounting support: 35 mm symmetrical DIN rail, screw clamp
• Protection degree (IP): IP20
• Standards: IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Operating temperature: -20 to 60 °C
• Connection type: Screw clamp terminals
• Motor power compatibility at 400/415 V: 1.5 kW
• Motor power compatibility at 690 V: 3 kW
• Tripping technology: Thermal-magnetic
• Category of use: AC-3
• Degree of pollution: 3
• Mechanical durability: 100,000 cycles
• Electrical durability: 100,000 cycles (AC-3 at 400 V)

Recommendations

For optimal performance, ensure proper installation on a 35 mm DIN rail and use appropriate screw clamp terminals. This device is suitable for motor protection in AC-3 applications. Always refer to the user manual for detailed wiring and configuration instructions.
