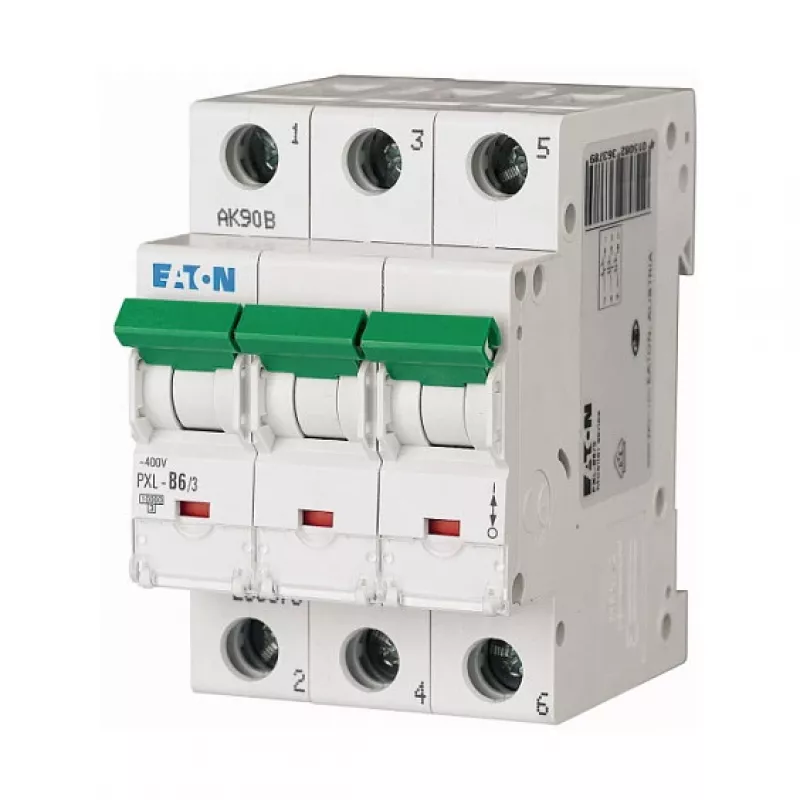

Eaton PXL-B6/3 Istič 6A 3-pólový B-charakteristika 10kA

The Eaton PXL-B6/3 is a 3-pole miniature circuit breaker (MCB) with a rated current of 6 A and B tripping characteristic, engineered for reliable protection of electrical circuits against overload and short-circuit. Its 10 kA breaking capacity and energy limiting class 3 ensure robust performance in residential and commercial installations.

Advantages

This MCB offers precise protection with a B-curve, ideal for circuits with moderate inrush currents such as lighting and socket outlets. The 3-pole configuration provides simultaneous disconnection of all phases, enhancing safety in three-phase systems. With a mechanical life of 20,000 operations and electrical life of 10,000 operations, it delivers long-term durability. The device is designed for DIN rail mounting (EN 60715) with a compact width of 3 modules (52.5 mm), optimizing space in distribution boards. Terminals accommodate solid conductors up to 25 mm² and flexible up to 16 mm², allowing versatile wiring. Operating temperature range from -25°C to +75°C ensures reliability in harsh environments.

Suitable for

• Protection of lighting circuits in residential and commercial buildings
• Socket outlet circuits with moderate inrush currents
• Three-phase distribution boards requiring simultaneous phase disconnection
• Applications requiring DIN rail mounting and space-saving design
• Installations in environments with wide temperature variations

Key specifications

• Number of poles: 3P
• Rated current (In): 6 A
• Tripping characteristic: B
• Rated voltage (Ue): 400 V AC
• Rated short-circuit breaking capacity (Icn): 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Energy limiting class: 3
• Degree of protection: IP20 (terminals), IP40 (enclosure)
• Standards: IEC/EN 60898-1
• Operating temperature: -25°C to +75°C
• Electrical life: 10,000 operations
• Mechanical life: 20,000 operations
• Module width: 3 modules (52.5 mm)

Recommendations

For reliable circuit protection in three-phase systems with moderate loads, the Eaton PXL-B6/3 offers a proven solution with high breaking capacity and long service life. Its compact design and easy DIN rail installation make it a preferred choice for electricians and panel builders.
