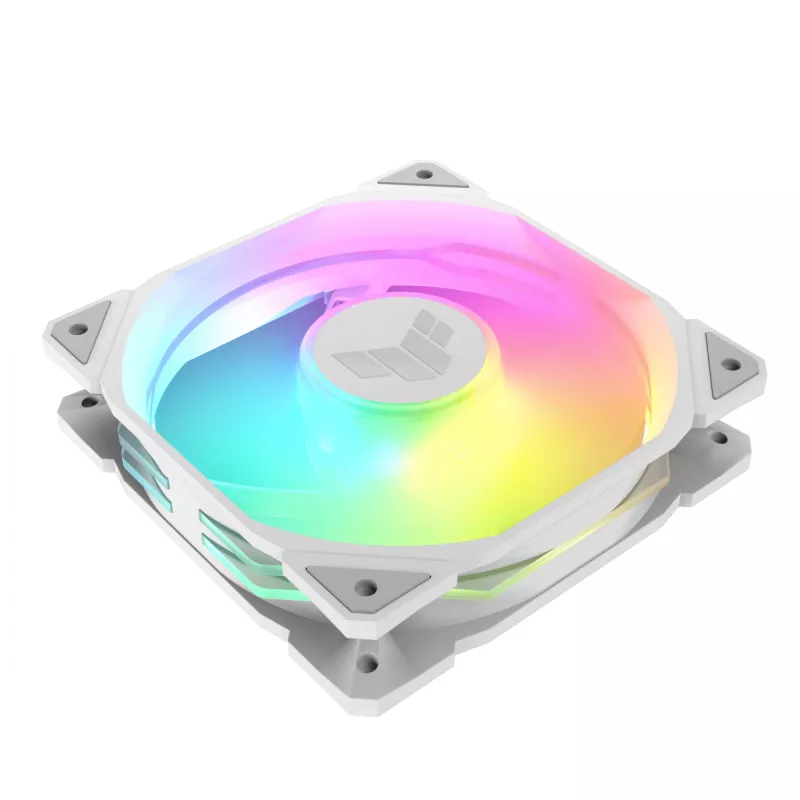

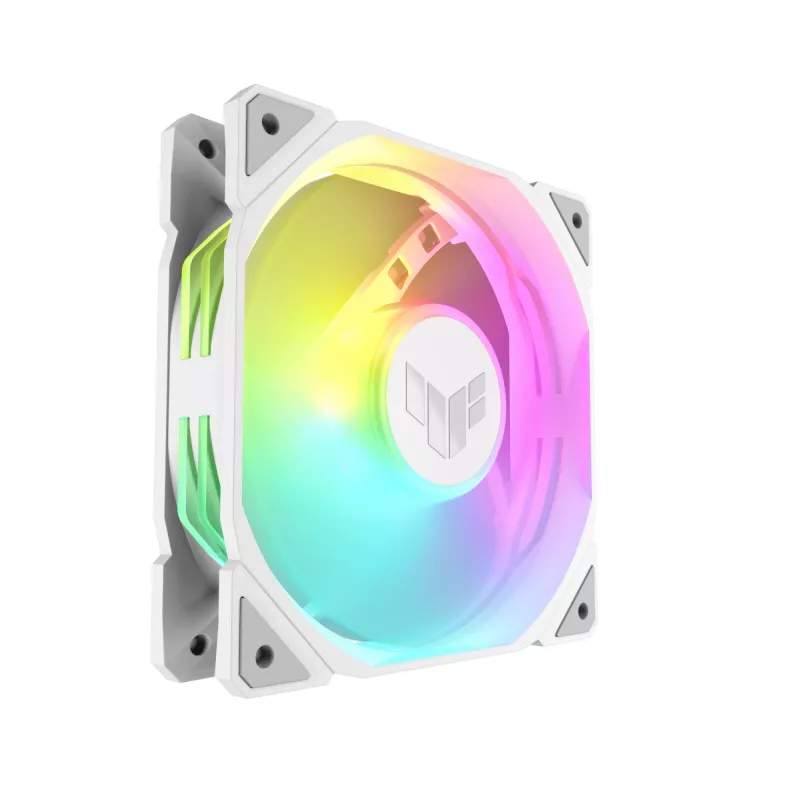

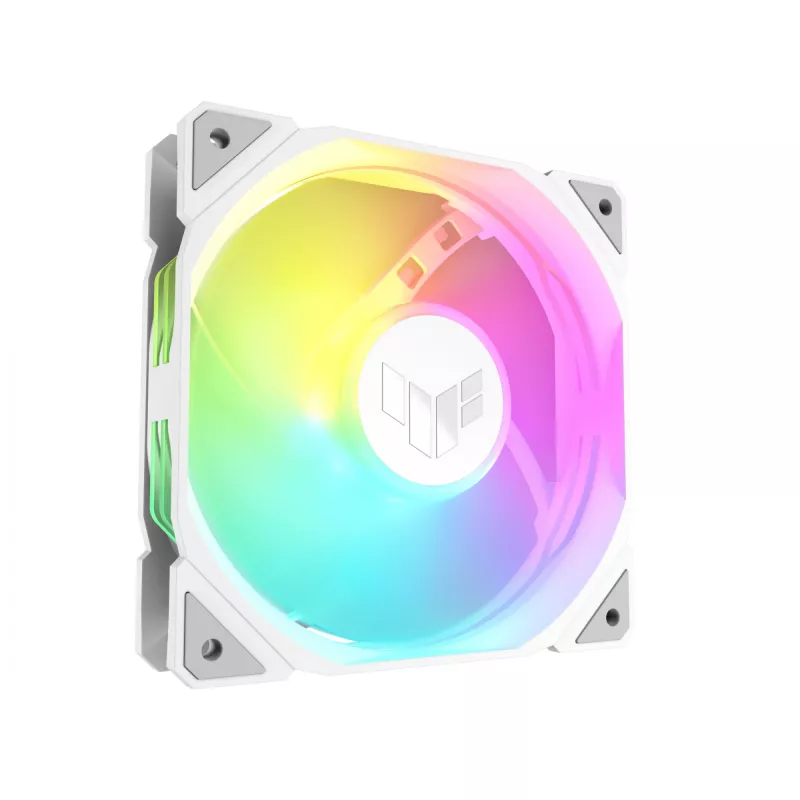

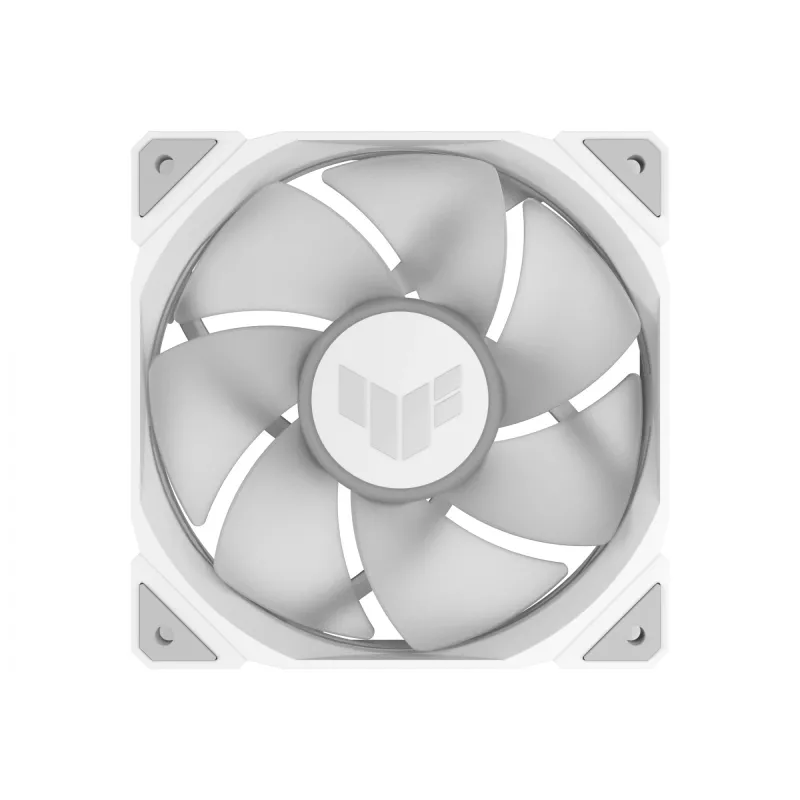

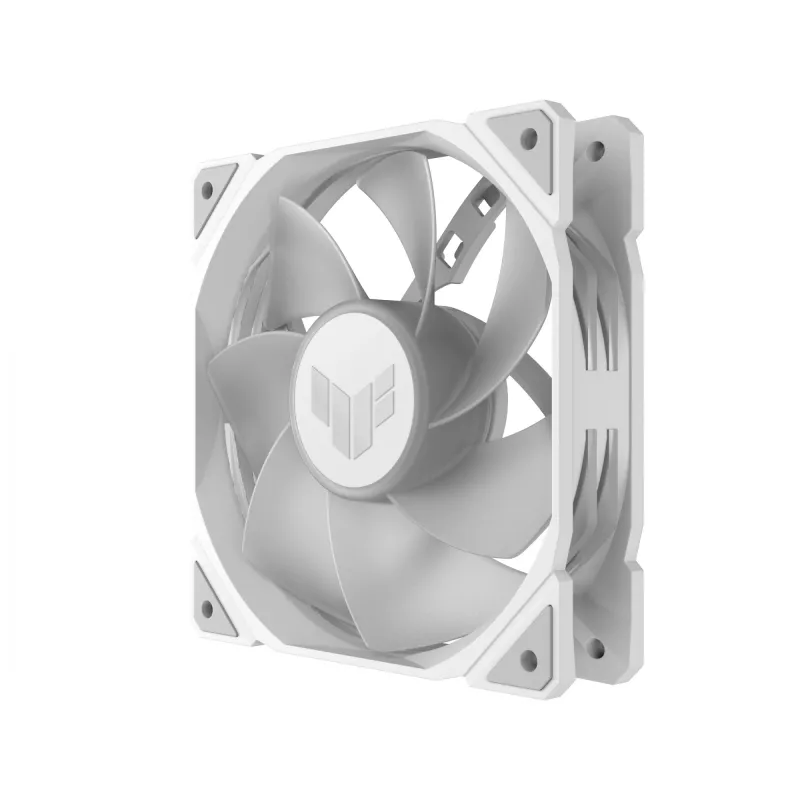

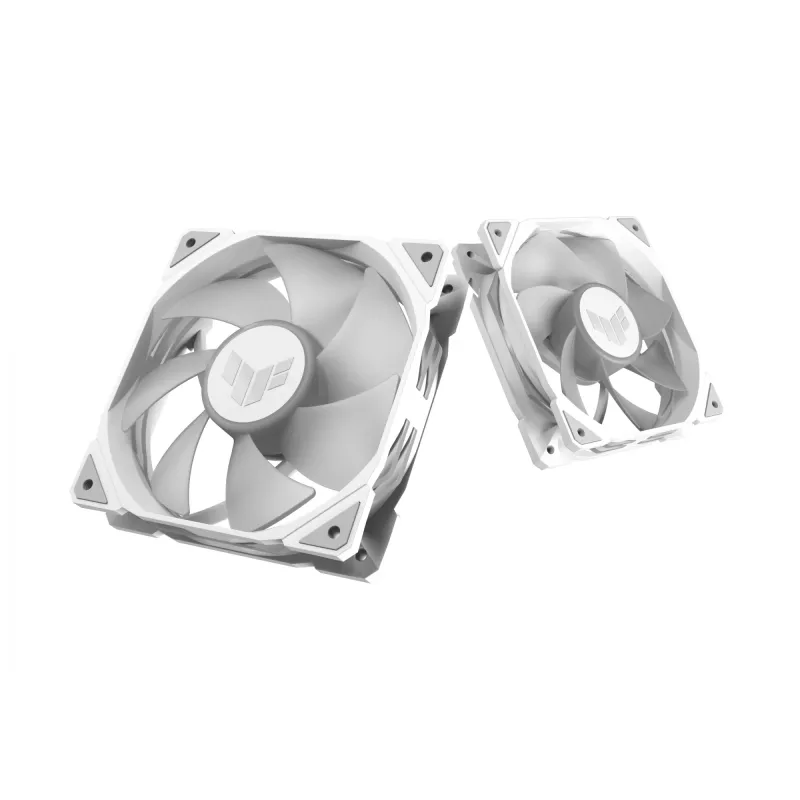

ASUS TUF GAMING TR120 ARGB REVERSE 120 mm 2000 RPM biely, hydraulické ložisko, 76.3 CFM

The ASUS TUF GAMING TR120 ARGB REVERSE is a 120 mm case fan engineered for elevated cooling performance and customizable lighting. It features an extra-thick 28 mm frame, optimized reverse fan blades, PWM control and a double-layer addressable LED array. With a maximum airflow of 76.3 CFM, a static pressure of 2.75 mmH2O and a top speed of 2000 RPM, this fan is suitable for both chassis and radiator mounting and is available in black or white and in standard or reverse orientations.

Advantages

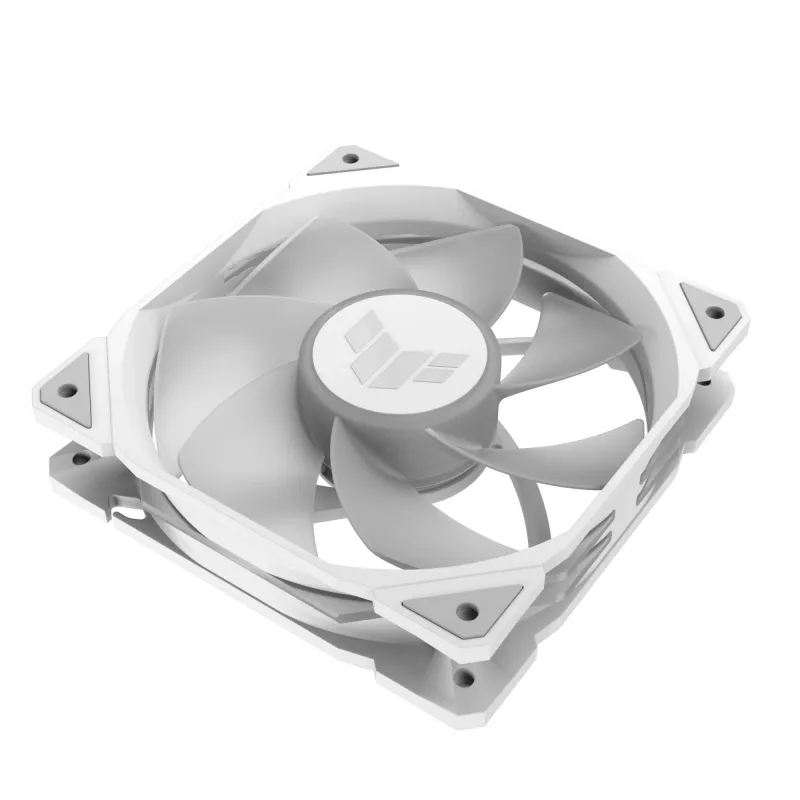

The 28 mm thick frame provides a sturdy mounting base and supports improved airflow and static pressure. Reverse fan blades and optimized blade geometry deliver targeted airflow control and higher cooling efficiency for radiators and confined chassis channels. PWM support allows precise speed regulation from 0 to 2000 RPM to balance silence and performance. The double-layer ARGB LED array and duo side lighting patterns produce even, vivid illumination across the fan blades while remaining compatible with Aura Sync for synchronized lighting.

Suitable for

• Airflow or push/pull configurations on 120 mm radiators
• Front, top or rear case intake/exhaust in gaming or performance PCs
• Builds requiring controlled static pressure in restricted airflow channels

Key specifications

• Fan size: 120 mm
• Frame thickness: 28 mm
• Maximum speed: 2000 RPM (PWM)
• Maximum airflow: 76.3 CFM
• Static pressure: 2.75 mmH2O
• Noise level (high speed): up to 29 dB
• Bearing type: hydraulic bearing
• Lighting: addressable double-layer ARGB, Aura Sync compatible
• Colors/versions: black or white; standard and reverse orientations
• MPN: 90DA00D3-B09000
• EAN: 4711387543474

How to use

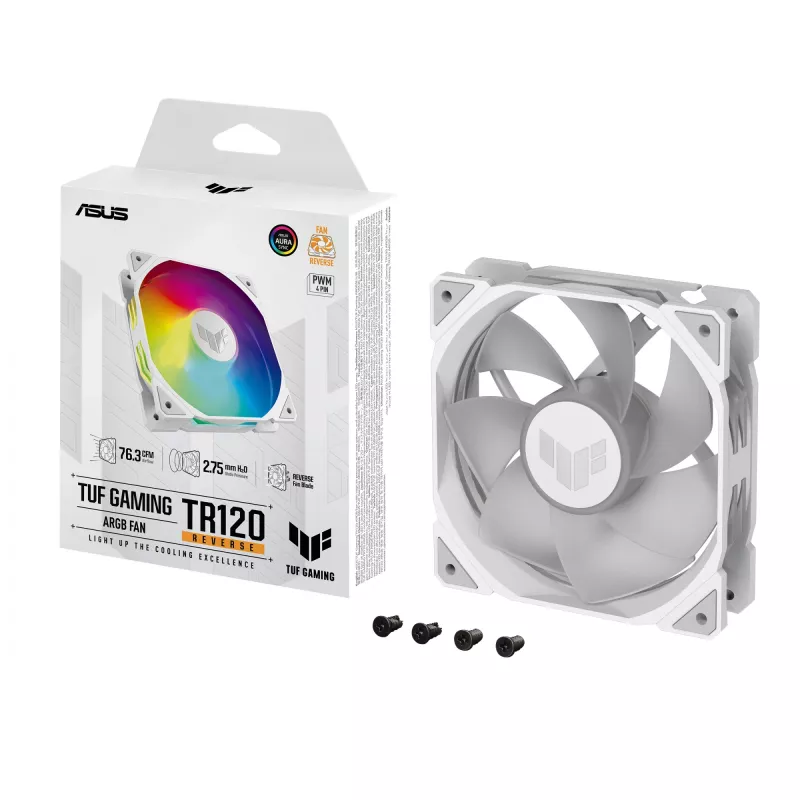

Mount the TR120 ARGB REVERSE to a 120 mm fan location using the supplied screws, observing the indicated airflow direction when installing in intake or exhaust positions. Connect the 4-pin PWM fan connector to a compatible motherboard header for automatic speed control, and attach the ARGB cable to an addressable RGB header or compatible controller for lighting control and synchronization via Aura Sync. For radiator push/pull setups, align the reverse blade orientation to achieve the desired static pressure and airflow balance.

Recommendations

For quieter operation during light loads, configure fan curves in the motherboard UEFI or software to keep speeds low and allow higher RPMs under heavy CPU or GPU workloads. When using multiple TR120 fans on a radiator, maintain consistent orientation (standard or reverse) to optimize airflow and lighting uniformity.
