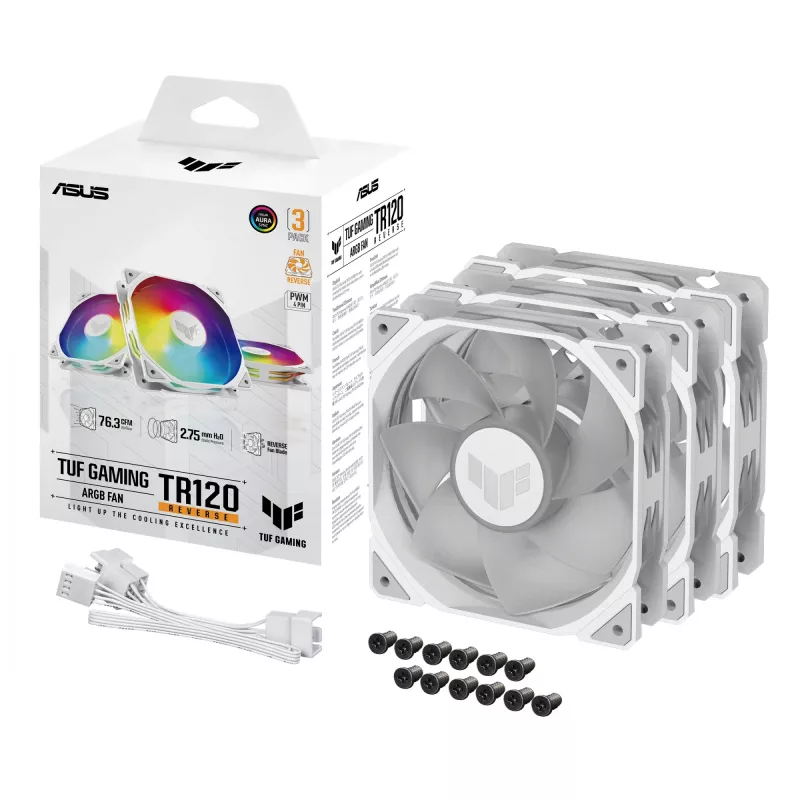

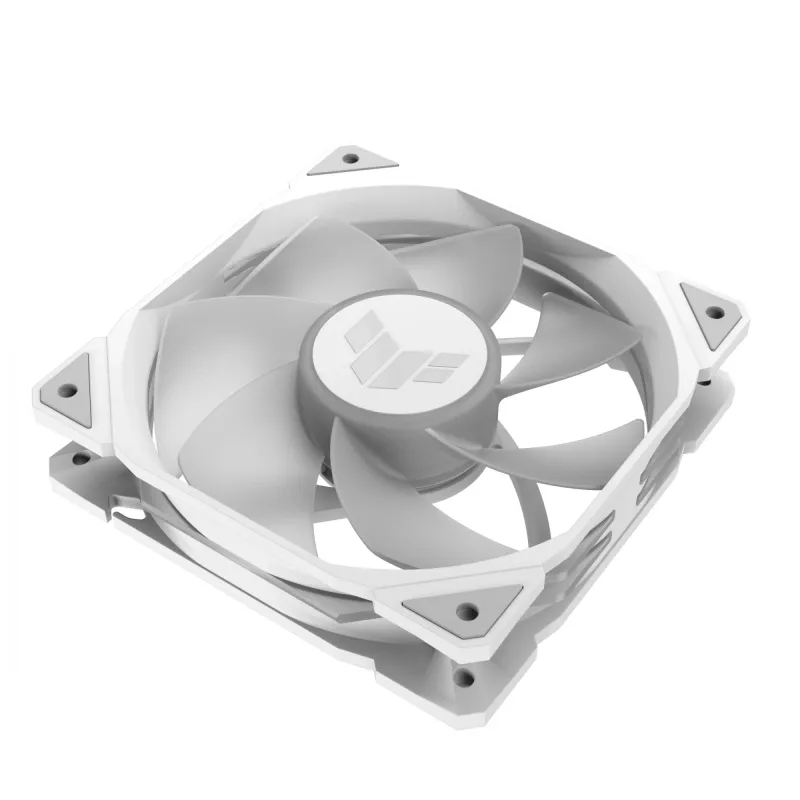

ASUS TUF GAMING TR120 ARGB REVERSE 3IN1 biela počítačové puzdro vzduchový chladič 12 cm

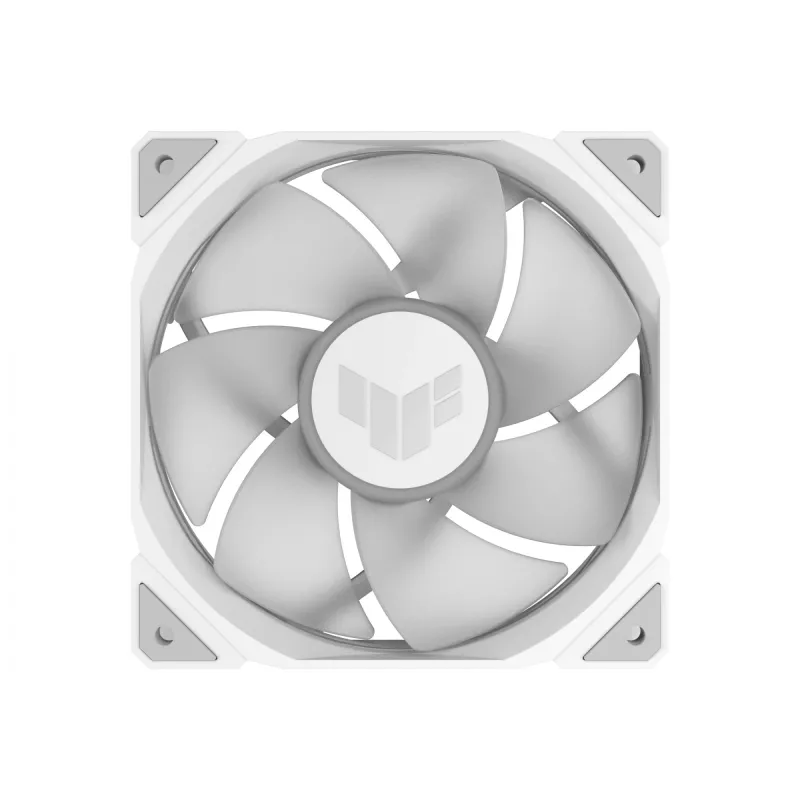

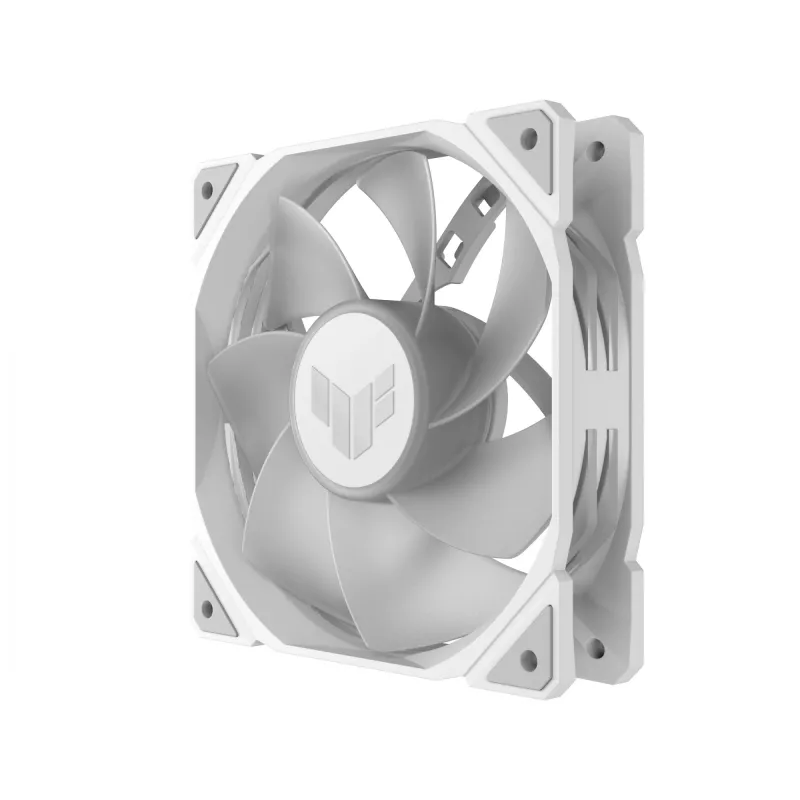

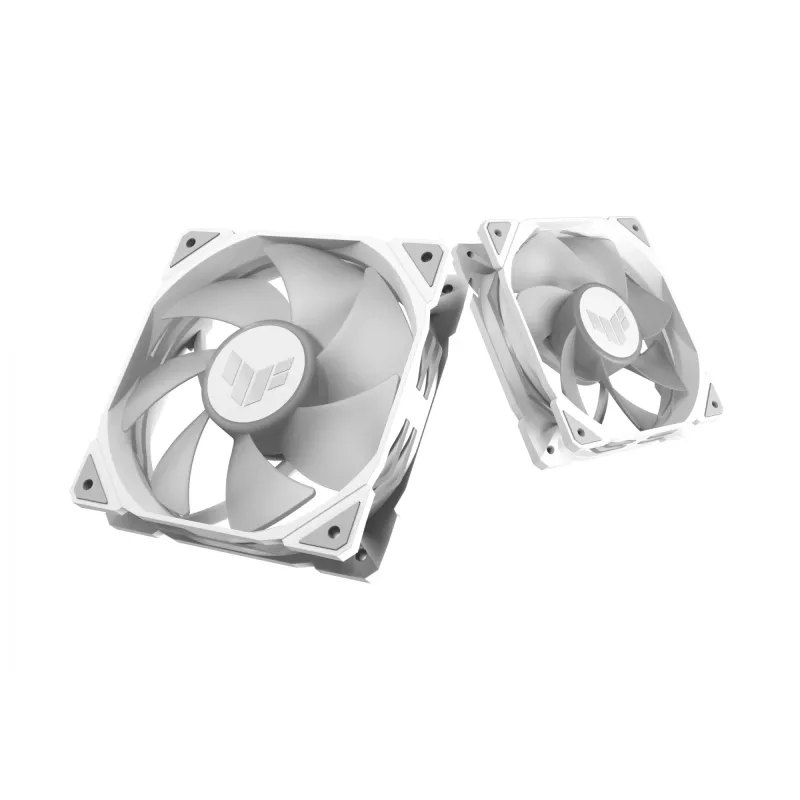

TUF GAMING TR120 ARGB REVERSE is a 120 mm case fan designed with an extra-thick 28 mm frame to provide improved static pressure and airflow for chassis and radiator cooling. The fan combines a double-layer addressable LED array with dual side lighting patterns and is available in standard and reverse blade orientations and in black or white finishes for flexible integration into gaming builds.

Advantages

The extra-thick 28 mm frame creates a stable platform that supports higher cooling performance. Optimized fan blades deliver up to 2.75 mmH2O static pressure and a maximum airflow of 76.3 CFM, making the fan suitable for both tight chassis air channels and radiator use. PWM support enables precise speed control from 0 to 2000 RPM, allowing quiet operation at low loads and maximum airflow under heavy loads. Addressable double-layer LEDs and dual side patterns produce even illumination and versatile lighting layouts to match your system’s aesthetics.

Key specifications

• Size: 120 mm
• Frame thickness: 28 mm (extra-thick)
• Static pressure: 2.75 mmH2O
• Airflow: 76.3 CFM
• Speed range: 0–2000 RPM (PWM control)

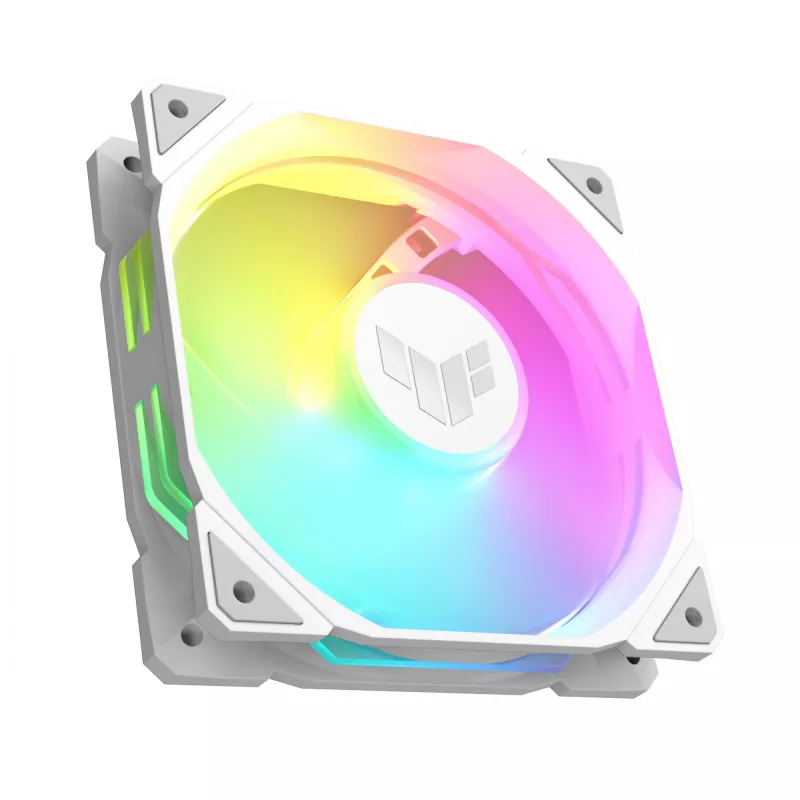

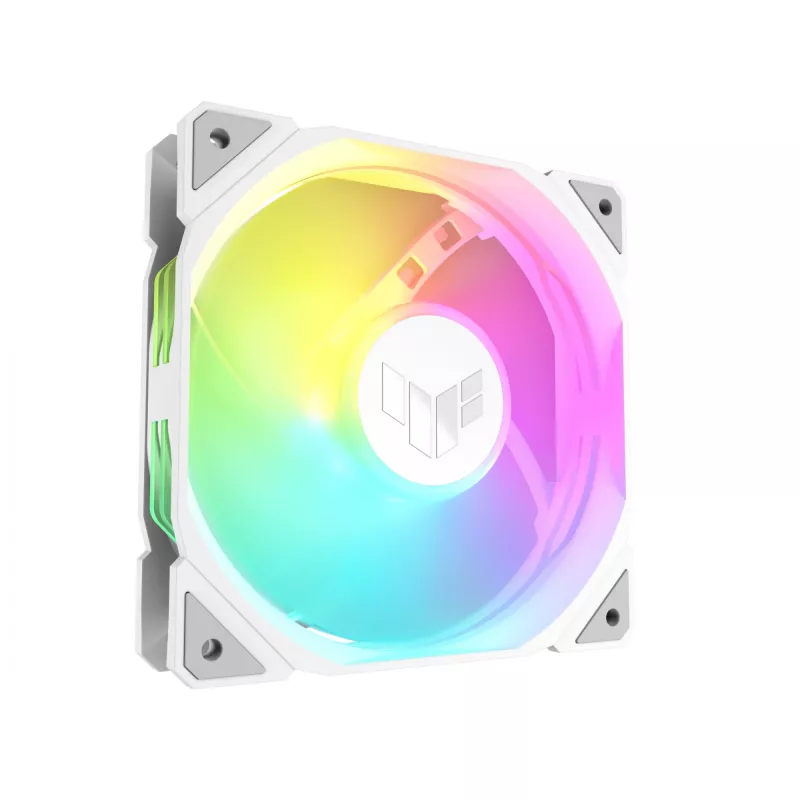

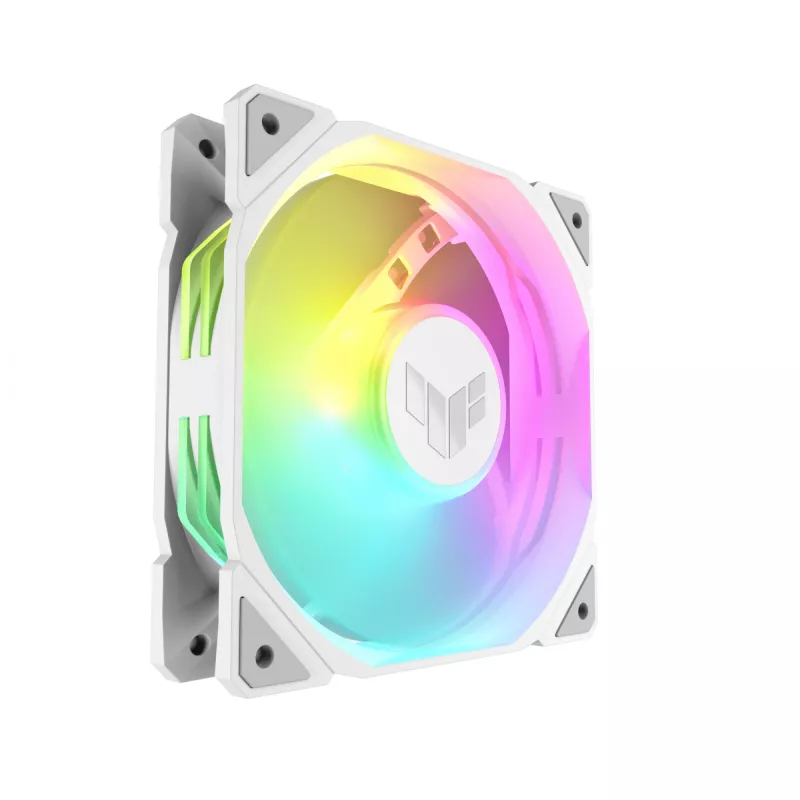

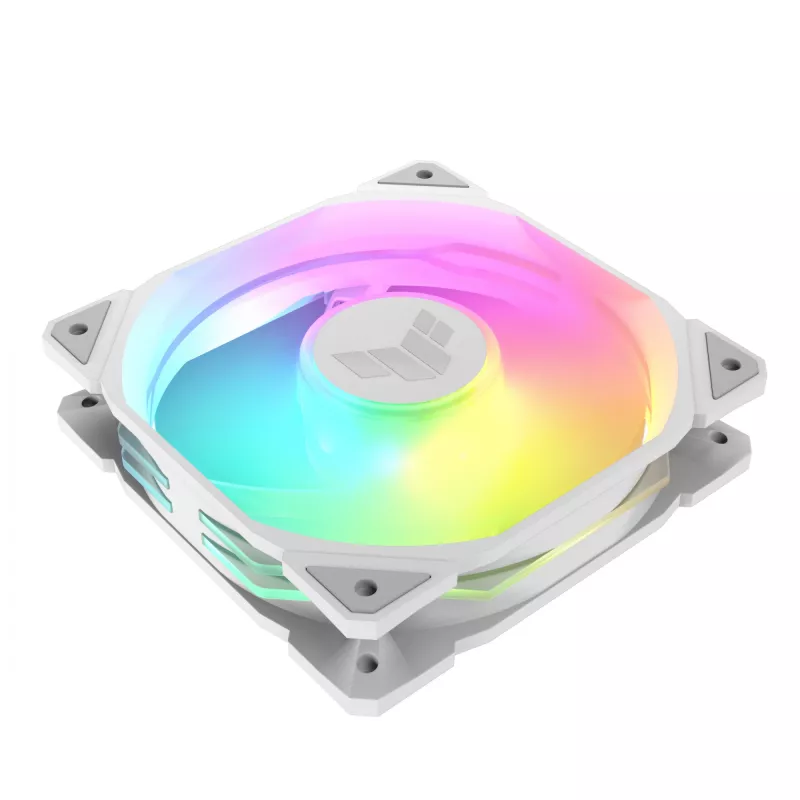

• Lighting: Addressable double-layer ARGB LED array, dual side lighting patterns
• Orientations: Standard and Reverse blade versions
• Color options: Black and White

How to use

Install the TUF GAMING TR120 ARGB REVERSE in your chassis or on a radiator using the standard 120 mm mounting holes. Connect the PWM fan connector to a compatible motherboard header for automatic speed control and connect the ARGB cable to a compatible addressable header or controller to manage lighting via Aura Sync or other supported software. Choose standard or reverse orientation depending on desired airflow direction and lighting effect, and set fan curves in BIOS or software to balance noise and cooling performance.

Recommendations

For best results, use the reverse or standard blade version according to your case airflow plan: place intake fans at the front and bottom and exhaust fans at the rear and top. Ensure the ARGB header and PWM header on your motherboard are compatible with the fan to enable synchronized lighting and precise speed control.
