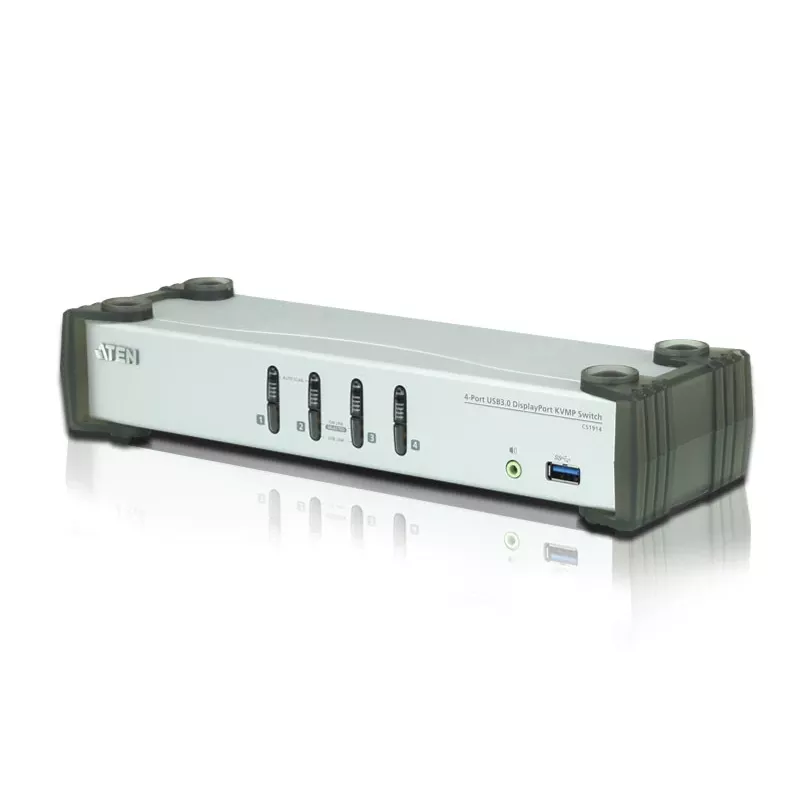

ATEN 4-portový USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ switch s reproduktorom (KVM kábel v balení)

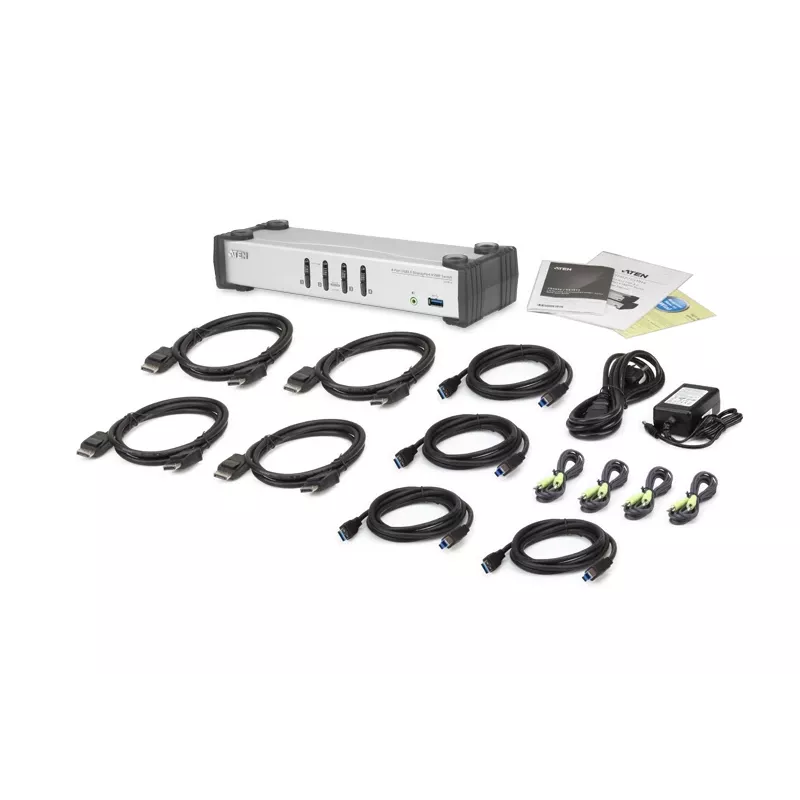

The ATEN CS1914 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP switch enables control of up to four computers from a single keyboard, mouse and DisplayPort monitor. It supports resolutions up to 3840 x 2160 at 30 Hz, incorporates a SuperSpeed USB 3.1 Gen 1 hub (5 Gbps) for fast file transfers, and comes in a durable metal and plastic housing with LED indicators for status and USB connectivity. The package includes the CS1914 unit, four DisplayPort cables, four USB 3.0 cables, four audio cables, a power adapter and user instructions.

Advantages

The ATEN CS1914 offers high-resolution video support combined with USB 3.1 Gen 1 data throughput, reducing the need for separate switchers for video and peripherals. Its KVMP design lets users share keyboard, video, mouse and USB devices between four computers while maintaining a compact desktop footprint. The unit's robust casing, clear LED indicators and included connection cables simplify setup and long-term use.

Suitable for

• Multi-computer workstations (up to 4 PCs)
• Office environments requiring shared keyboard/mouse/monitor
• Workflows needing 4K (3840 x 2160 @ 30 Hz) DisplayPort output
• File transfer and peripheral sharing via USB 3.1 Gen 1 (5 Gbps)

Key specifications

• Model: ATEN CS1914 (MPN: CS1914-AT-G, EAN: 4719264645044)
• Controls: up to 4 computers
• Video: DisplayPort 1.1, up to 3840 x 2160 @ 30 Hz
• USB hub: USB 3.1 Gen 1 / USB 3.0 SuperSpeed, up to 5 Gbps
• Keyboard/mouse ports: USB
• Weight: 1.97 kg
• Colours: Black, Grey
• Power consumption (typical): 2.99 W
• Compliance: RoHS

How to use

Place the CS1914 on your desk and connect each computer to the unit using the supplied DisplayPort, USB 3.0 and audio cables. Connect your monitor to the console DisplayPort output, and attach your keyboard and mouse to the front or designated USB console ports. Plug in the power adapter and turn on the unit. Switch between connected computers using the device's front-panel controls, keyboard hotkeys or the provided switching method according to the user instructions.

Recommendations

For optimal video performance at 3840 x 2160 @ 30 Hz, use high-quality DisplayPort cables and ensure connected graphics cards support DisplayPort 1.1 output at that resolution. When transferring large files, connect devices to the USB 3.1 Gen 1 ports to benefit from SuperSpeed transfer rates.
