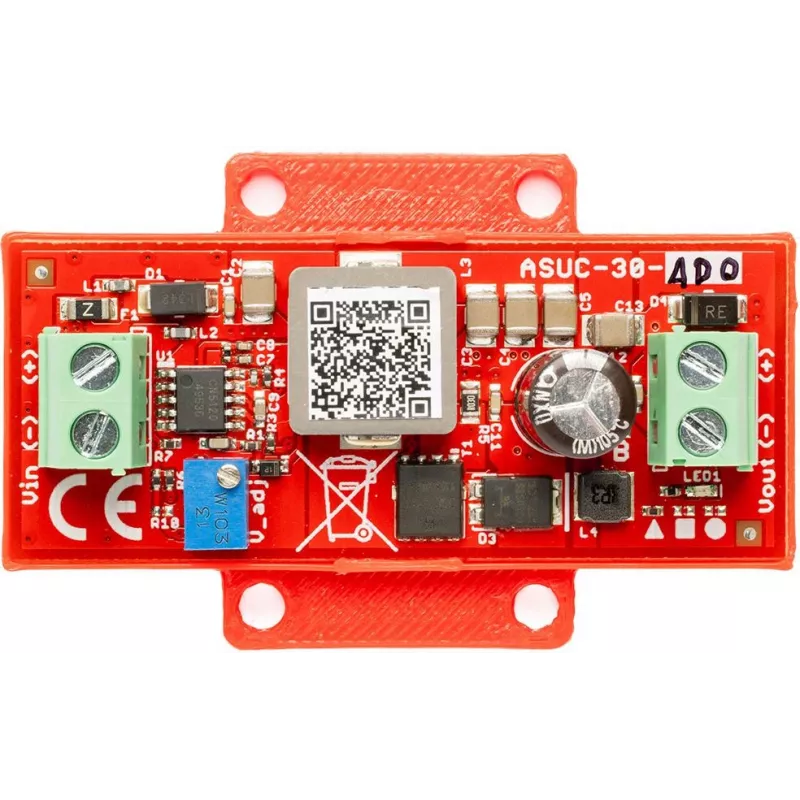

ATTE ASUC-30-AD0-OF nastaviteľný DC-DC boost menič 12-48V 30W

The ATTE ASUC-30-AD0-OF is a high-performance DC-DC boost converter designed to step up input voltages from 10.5-15V DC to an adjustable output range of 12-48V DC. With a maximum output power of 30W and current up to 2.5A (at 12V output), this converter is ideal for applications requiring a stable, adjustable higher voltage from a lower voltage source. Its compact PCB design with mounting holes allows for easy integration into various electronic projects and systems.

Advantages

This boost converter offers high efficiency up to 90%, ensuring minimal power loss. It features comprehensive protection including short circuit, overload, overvoltage, and input reverse polarity, safeguarding both the converter and connected devices. The adjustable output via a potentiometer provides flexibility for a wide range of applications.

Suitable for

• Powering LED strips and lighting systems
• Battery-powered devices requiring higher voltage
• DIY electronics and prototyping
• Industrial control systems
• Automotive and marine applications

Key specifications

• Converter Type: DC-DC Boost Converter
• Input Voltage Range: 10.5V - 15V DC
• Output Voltage Range: 12V - 48V DC (Adjustable)
• Max Output Power: 30W
• Max Output Current: 2.5A (at 12V output)
• Efficiency: Up to 90%
• Protection: Short Circuit, Overload, Overvoltage, Input Reverse Polarity
• Operating Temperature: -10°C to +50°C
• Mounting: PCB with mounting holes
• Connectors: Screw Terminal Blocks (Input and Output)

Recommendations

For optimal performance, ensure the input voltage is within the specified range and the load does not exceed 30W. Use appropriate wire gauge for the current. The output voltage should be set using the potentiometer before connecting the load. This converter is non-isolated, so ensure proper grounding.
