ATTE IPUPS-17-11-R5U0 PoE switch pre až 17 IP kamier

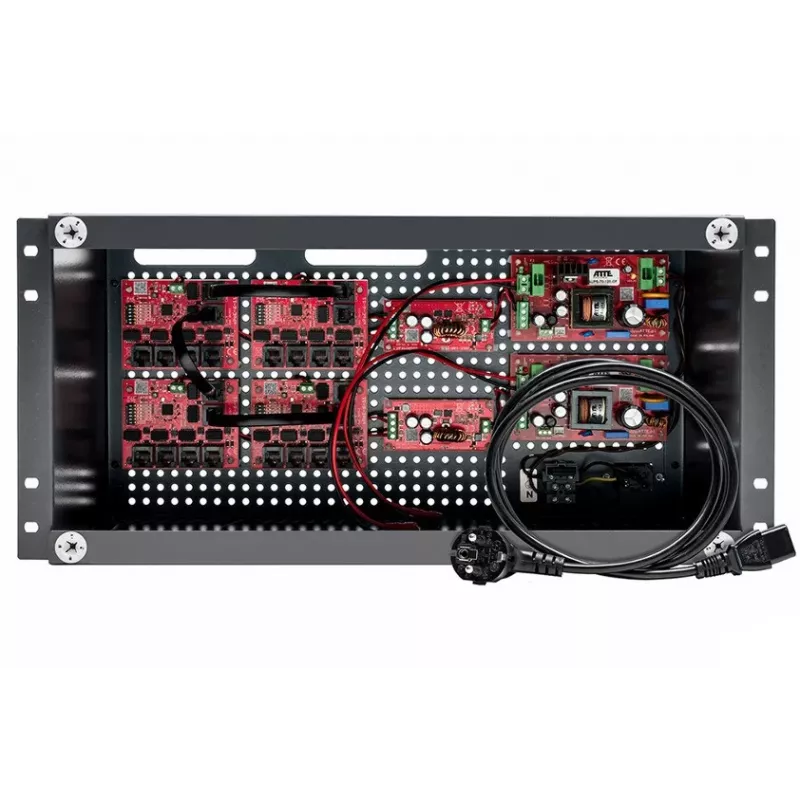

The ATTE IPUPS-17-11-R5U0 is an unmanaged PoE switch with buffer power supply, designed for up to 17 IP cameras and other network devices powered via PoE 802.3at/af or PoE PASSIVE. It supports data transmission up to 280 m in Long Range mode and features independent electronic fuses for each PoE channel with auto-return. The modular design allows easy expansion and maintenance.

Key features

• Buffer power supply for 17 PoE receivers (802.3at/af or PASSIVE)
• Data transmission up to 280 m in Long Range mode
• Independent electronic fuse per PoE channel with auto-return
• Ability to disable power on selected PoE ports
• Clear optical indication of power and data transmission status
• Up to 65 W power on PoE IN/OUT port
• Up to 40 W power on other PoE ports
• Easy and quick start-up without configuration
• High efficiency of power supply module (90%)
• Two supply voltage values available: 12 VDC and 48 VDC
• Modular construction for easy service and expansion
• Space for 2 batteries 18 Ah
• Main cable glands at the back of the enclosure
• Additional cable gland is the gap between the body and the cover
• Tool-free assembly and disassembly of the masking cover (push-fit)
• Graphite color matching both dark and light cabinets
• Enclosure equipped with connector and electrical terminal block with fuse
• Possibility to keep cable slack inside the enclosure

Specifications

• Brand: ATTE
• MPN: IPUPS-17-11-R5U0
• LAN ports: 18 RJ45 10/100 Mbps (17x LAN+PoE, 1x Uplink)
• Supported PoE receivers (standard / max power): 802.3af – up to 15.4 W (LAN_1...LAN_5); 802.3at – up to 30 W (LAN_1...LAN_5); PoE PASSIVE – up to 65 W (LAN_5) / up to 40 W (LAN_1...LAN_4)
• PoE outputs (standard / power mode): LAN_1...LAN_5 PoE PASSIVE, mode B (4,5+) (7,8-)
• PoE output protection (overcurrent / short circuit): LAN_1...LAN_4 0.75 A / electronic (auto-return); LAN_5 1.25 A / electronic (auto-return)
• Microswitches SW1: switch 1 "MODE" – switch operation mode; switches 2...6 "PoE ON/OFF" – PoE power on ports LAN_1...LAN_5
• Operation mode "Standard": switch 1 "MODE" in OFF position; LAN_1...LAN_6 – range up to 100 m (10/100 Mbps)
• Operation mode "Long Range": switch 1 "MODE" in ON position; LAN_1...LAN_4 – range up to 280 m (10 Mbps); LAN_5...LAN_6 – range up to 100 m (10/100 Mbps)
• Power supply (type / model): switching SMPS / 2x AUPS-70-120-OF
• Power supply output protection (overcurrent / short circuit): 9 A (each power supply separately), electronic (after short circuit a restart of the power supply may be required)
• Thermal protection of power supply: TSD (thermal shutdown) 130°C, requires restart
• Input voltage range of power supplies / input protection: 180... (incomplete in source)
