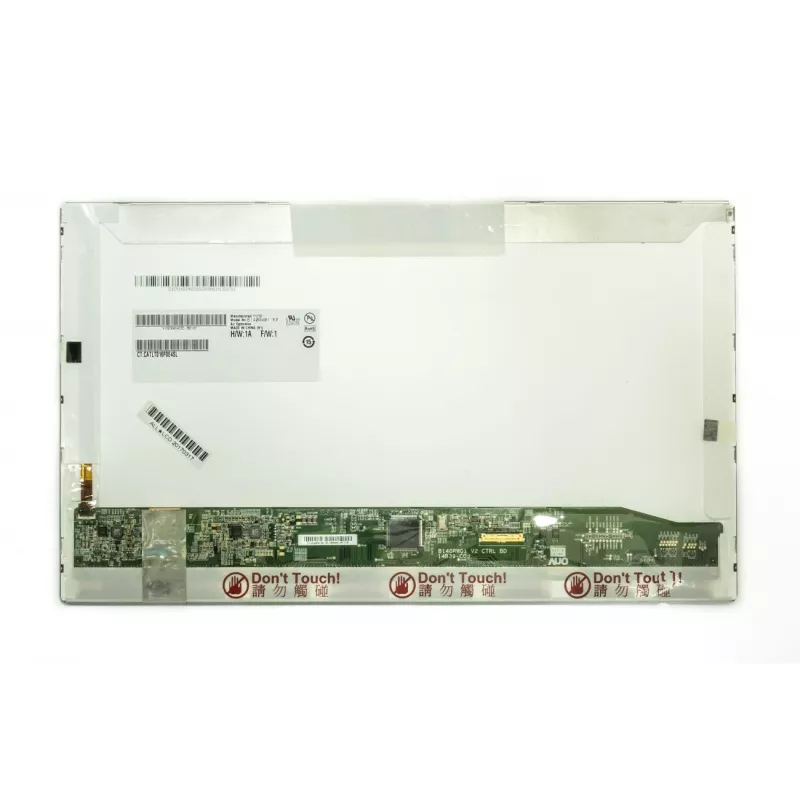

AUO LC300488 14,0" WXGA++ 1600x900 60Hz matný 30-pin LVDS LCD panel notebooku

Replace a faulty laptop screen with this AUO 14.0-inch LCD panel. The 1600x900 resolution and matte finish suit everyday computing in offices, schools, and homes. The 30-pin LVDS connector is positioned on the right side when viewed from the back, so check your laptop's cable placement before ordering.

Key specifications

• Display size: 14.0 inches
• Resolution: 1600 x 900 (WXGA++)
• Refresh rate: 60 Hz
• Surface finish: Matte (anti-glare)
• Connector: 30-pin LVDS, right-side position
• Backlight: LED
• Aspect ratio: 16:9
• Panel technology: TFT-LCD
• Brightness: 200-220 cd/m²
• Response time: 8-12 ms
• Viewing angles: 45/45/20/45 (L/R/U/D)
• Color support: 262K colors (6-bit)

Why choose it

This panel is a direct replacement for many laptops that use a 14.0-inch 1600x900 screen with a 30-pin LVDS interface. The matte coating reduces reflections, making it easier to work under bright lighting. LED backlighting offers consistent brightness and energy efficiency.

Ideal use cases

• Replacing a cracked or dim laptop display
• Upgrading a laptop with a compatible panel
• DIY repair projects for technicians and hobbyists

Good to know

The panel is sold as a bare unit without mounting brackets or cables. Verify the connector position and pin count match your original screen. The 6-bit color depth is standard for budget and mid-range laptops.
