Avision ADF skener AD360GF — A4 ADF, 600 x 1200 DPI, 100-listový podávač, CIS, duplex, LCD, biely

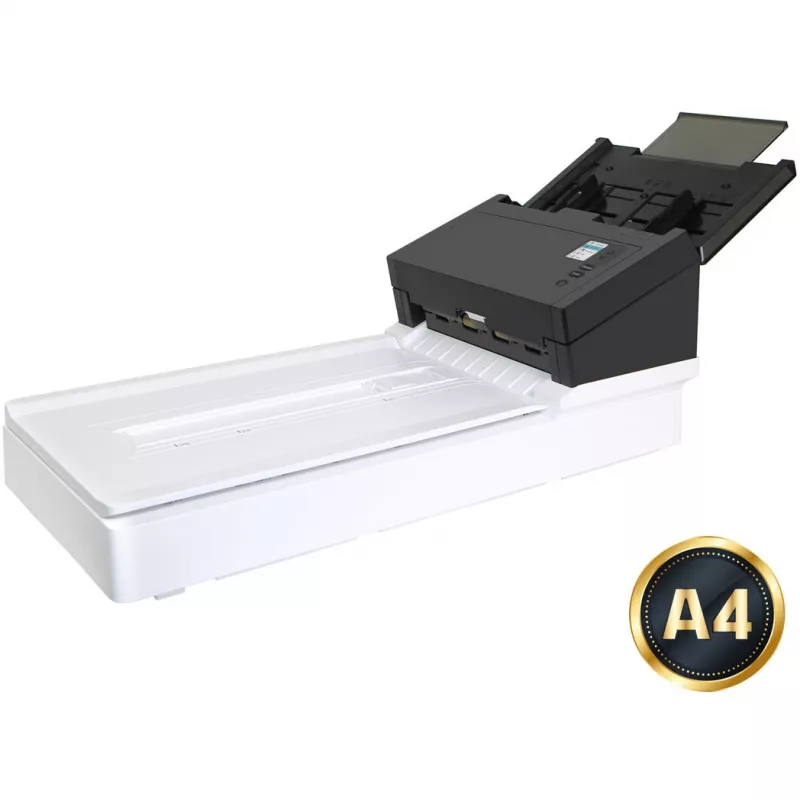

The Avision AD360GF is an A4 document scanner with an automatic document feeder (ADF) and a flatbed-style capability for mixed media. It uses contact image sensor (CIS) optics with an effective optical resolution of 600 x 1200 DPI and supports 48-bit colour depth. The unit includes a 100-sheet ADF, duplex scanning, LED illumination, an LCD panel for operation, and an advanced image processor that crops, deskews and optimizes images automatically. Designed for office digitisation and frequent scanning tasks, the AD360GF is rated for a daily duty cycle up to 10,000 pages and can handle business cards, plastic cards and standard ISO A-series up to A4.

Advantages

The scanner combines a high-throughput ADF with a compact footprint and integrated display for simple control. With a rated scanning speed of up to 80 ppm (single-sided) and 160 ipm (duplex), it supports high-volume workflows while maintaining space efficiency. Built-in image processing accelerates cropping, straightening and image optimisation. A robust paper path and reverse roller design improve feeding reliability and help prevent multi-feeds. Ultrasonic multi-feed detection and adjustable settings allow reliable scanning of mixed batches including receipts, documents and embossed plastic cards.

Suitable for

• Office digitisation of invoices, contracts and employee records
• High-volume scanning centres requiring daily throughput
• Scanning batches with mixed sizes and media (receipts, A4 documents, business cards)
• Processing ID cards, credit cards and other embossed plastic cards
• Creating searchable PDFs and sending scans to e-mail, printers or cloud services

Key specifications

• Maximum paper size: A4
• Optical scanning resolution: 600 x 1200 DPI
• Colour depth: 48-bit colour
• Automatic document feeder capacity: 100 sheets
• Duplex (double-sided) scanning: Yes
• Sensor type: CIS (contact image sensor)
• Scan speed: up to 80 ppm (single-sided), 160 ipm (duplex)
• Supported media: business cards, plastic/embossed cards, ISO A-series up to A4
• Maximum card thickness supported: up to 1.25 mm
• Paper weight handling: up to 413 g/m2 (110 lb)
• Built-in display: LCD for preset selection and operation
• Interface options: USB and Ethernet LAN
• Internal memory: 512 MB
• Power consumption: AC 44 W
• Operating noise level: 52 dB
• Weight: 6.9 kg
• Colour: White

How to use

Place original documents into the 100-sheet ADF or position single items for flatbed-style feeding as needed. Use the LCD panel to select a destination, profile or preset (up to nine presets can be stored) and press the Scan button to start. The scanner’s image processor will crop, deskew and optimise images automatically; use included TWAIN/ISIS drivers and bundled software (Button Manager, AVScan, PaperPort) to configure scan formats, create searchable PDFs, or send scans to e-mail, print or cloud services. For embossed cards, feed them in the orientation recommended by the manufacturer and verify the card thickness setting if applicable.

Recommendations

Use the ultrasonic multi-feed detection for most mixed-batch jobs to reduce double feeds, and disable it when scanning documents with labels, adhesive notes or tapes. Regularly clean the CIS module and paper path, and keep the reverse roller area free from dust to maintain feeding reliability. For best OCR and searchable PDF results, select appropriate resolution (300 DPI for text, 600 DPI for fine graphics) and enable image processing presets provided in the bundled software.
