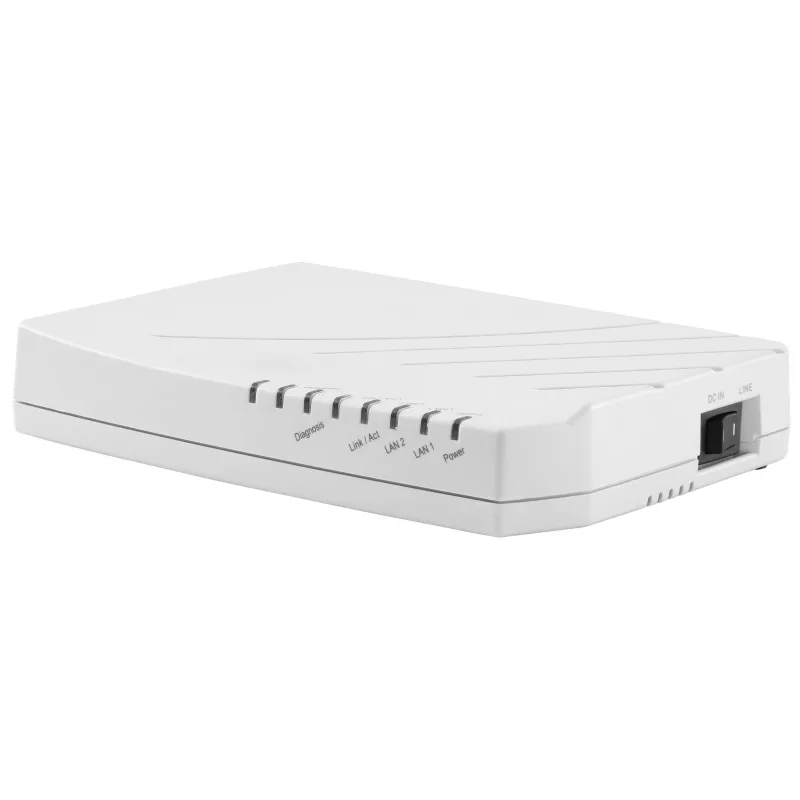

AXING EOC 30-21 Ethernet over Coax Dual-Master 1800 Mbps

The AXING EOC 30-21 is a high-performance Ethernet over Coax (EoC) Dual-Master bridge designed to extend Gigabit Ethernet connectivity over existing coaxial cable infrastructure. Leveraging G.hn Wave 2 technology, it delivers gross data rates up to 1800 Mbps and net throughput up to 1000 Mbps, making it ideal for broadband distribution in multi-dwelling units, hotels, and campus environments. The dual-master mode allows operation as two independent masters or as a redundant pair, supporting up to 32 EoC clients.

Advantages

Utilizes existing coax wiring, eliminating the need for new cable runs. Dual-master configuration provides flexibility and redundancy. High throughput ensures smooth streaming, gaming, and data transfer. Robust security with 128-bit AES encryption. Easy management via web GUI, SNMP, or TR-069.

Suitable for

• Multi-dwelling units (MDUs) and apartment buildings
• Hotels and hospitality networks
• Office and campus environments
• IPTV and broadband distribution
• Extending network reach over coax

Key specifications

• Technology: G.hn Wave 2 (ITU-T G.9960/G.9961)
• Gross Data Rate: Up to 1800 Mbps
• Net Throughput: Up to 1000 Mbps
• Operating Mode: Dual-Master (configurable)
• Coax Frequency Range: 2 - 200 MHz

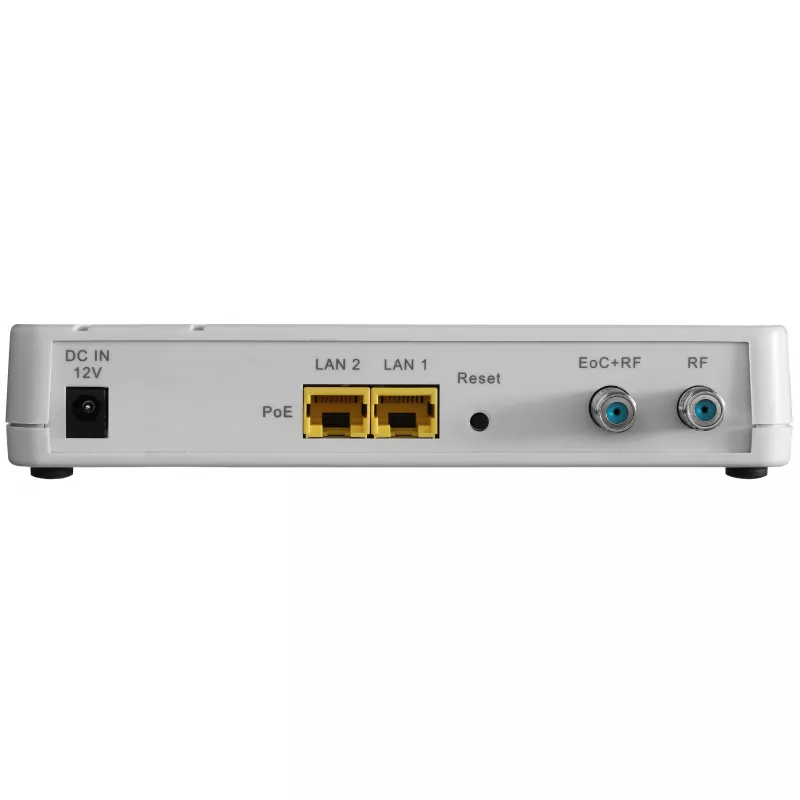

• Ethernet Ports: 2x Gigabit Ethernet (RJ45)
• Coax Ports: 2x F-connector
• Max EoC Clients: 16 per master (32 total in dual-master)
• Power Supply: 12 V DC, 1.5 A (external adapter included)
• Power Consumption: Max. 10 W
• Management: Web GUI, SNMP, TR-069
• Security: 128-bit AES Encryption
• Housing Material: Metal
• Operating Temperature: -10°C to +50°C
• VLAN Support: IEEE 802.1Q
• QoS Support: Yes (Packet Prioritization)

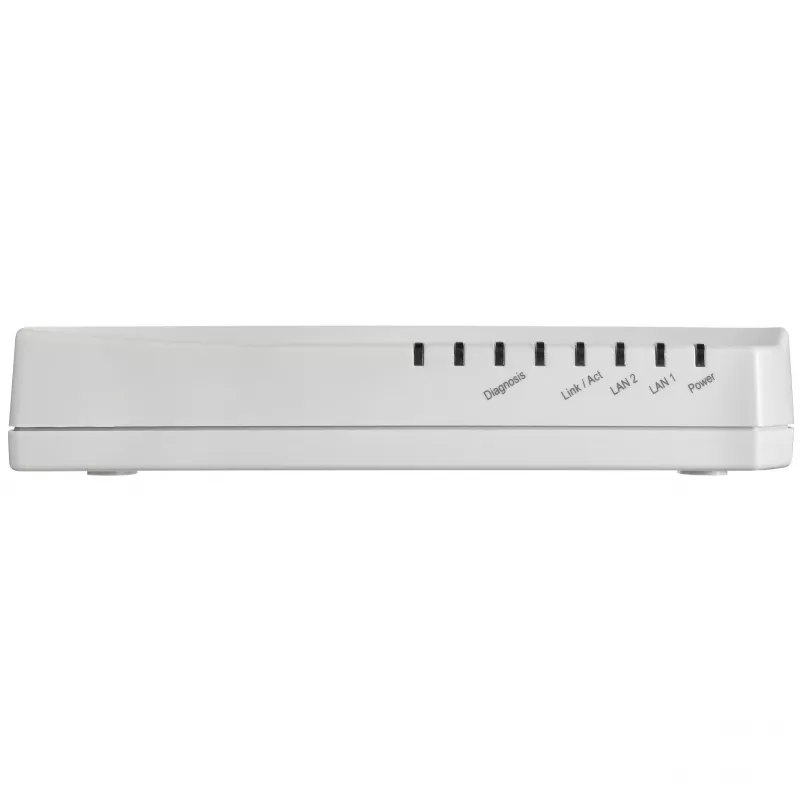

• LED Indicators: Power, Coax Link, Ethernet Link 1, Ethernet Link 2
• Standards: ITU-T G.9960/G.9961, IEEE 802.3, 802.3u, 802.3ab
• Mounting: Wall mountable
• Latency: < 1 ms (typical)

Recommendations

For optimal performance, use high-quality RG6 or RG11 coaxial cable. Configure dual-master mode for redundancy or to serve separate networks. Ensure power adapter is connected to a surge-protected outlet.
