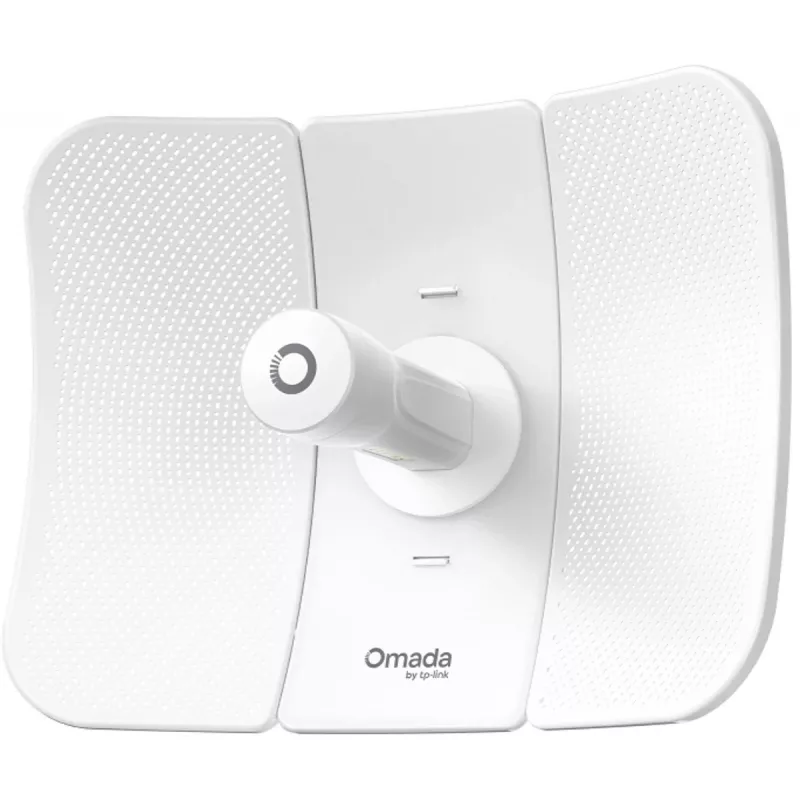

Sieťový most TP-LINK Beam Bridge 5 UR KIT, 5 GHz Single-Band, Wi‑Fi 5 (802.11ac), Gigabit Ethernet, externá anténa, max. dosah 15000 m, biela

The TP-LINK Beam Bridge 5 UR KIT is a 5 GHz single-band network bridge based on Wi‑Fi 5 (802.11ac) designed for long-distance point-to-point links up to 15 km. It includes high-gain directional 23 dBi external antennas and a Gigabit Ethernet (10/100/1000 Mbps) port for stable backhaul connectivity. The unit supports both standalone operation and centralized management via Omada SDN, and is built for outdoor use with IP65 weatherproofing, 6 kV lightning protection and an operating temperature range from -40 °C to +70 °C.

Advantages

The Beam Bridge 5 UR KIT provides ultra-range wireless transmission with preconfigured plug-and-play operation for immediate point-to-point auto-pairing. It offers app-guided alignment and instant speed testing for accurate installation, a single Gigabit PoE port compatible with 802.3af and passive PoE for easy deployment, and remote monitoring and management options through Web UI or App. The robust outdoor design reduces downtime and simplifies long-distance network extension.

Suitable for

• Extending networks between buildings on the same site
• Connecting remote offices, warehouses or outdoor facilities
• Providing dedicated wireless backhaul for CCTV or Internet links

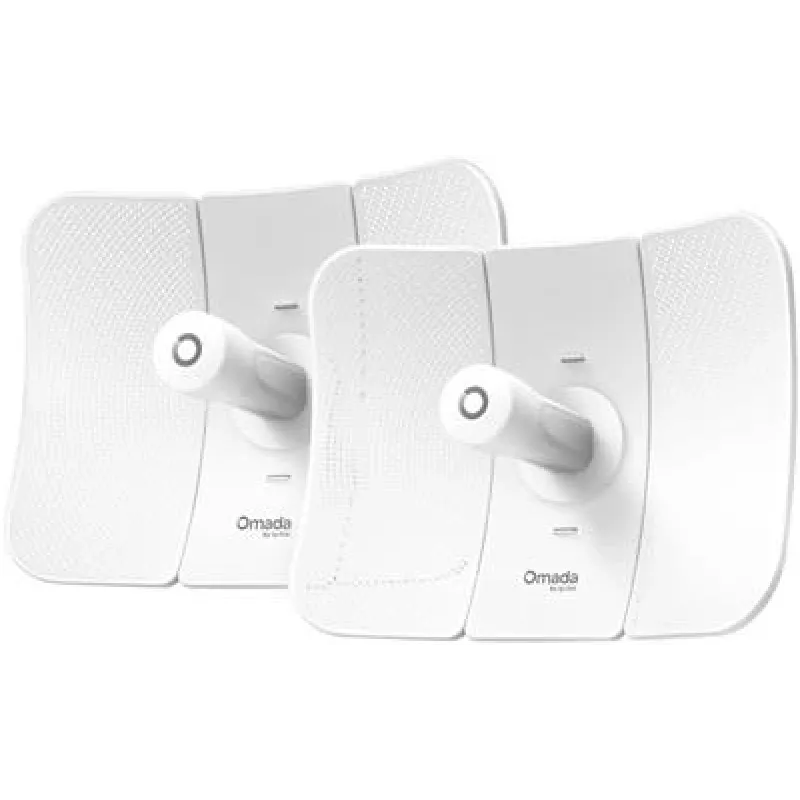

• Temporary or permanent point-to-point links at distances up to 15 km

Key specifications

• Wireless band: 5 GHz single-band (Wi‑Fi 5, 802.11ac)
• Maximum range: up to 15,000 m (15 km) with 23 dBi directional antennas

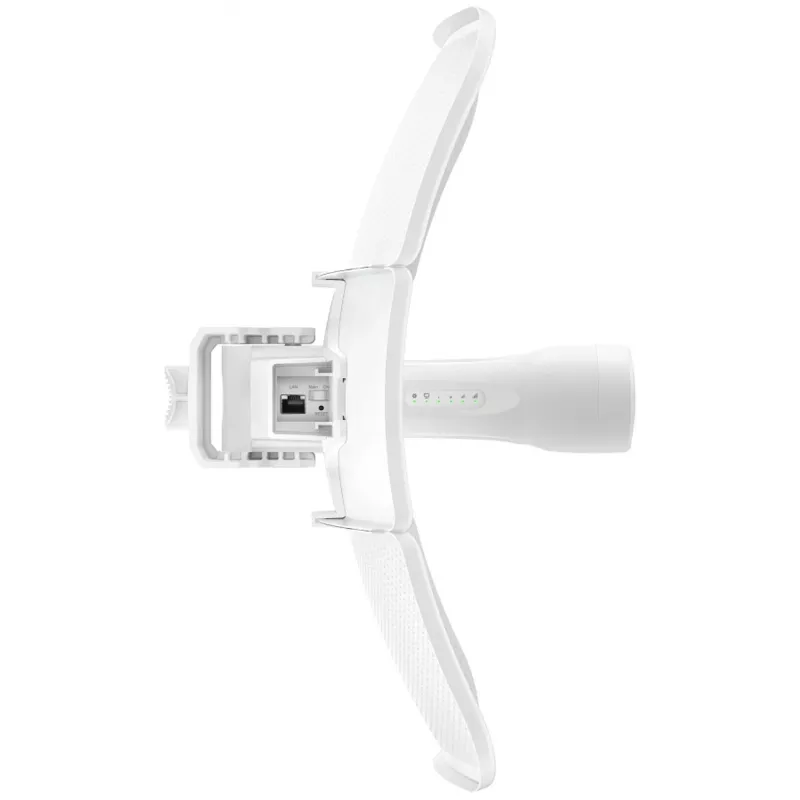

• Ethernet: 1 × Gigabit Ethernet (10/100/1000 Mbps) LAN

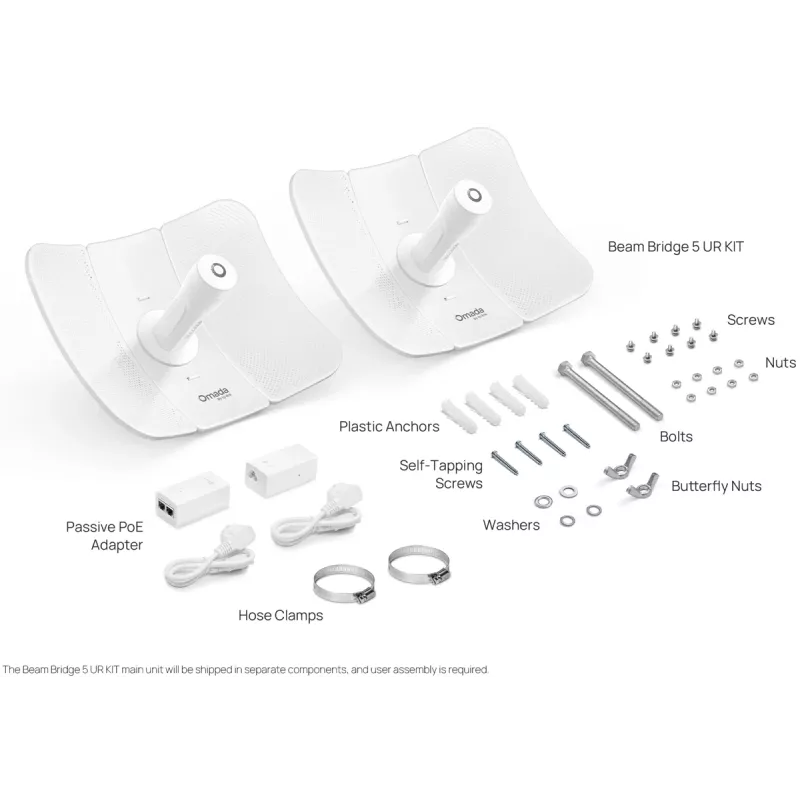

• PoE: Gigabit PoE port supporting 802.3af and Passive PoE
• Management: Standalone Web UI/App or Omada SDN centralized management
• Environmental protection: IP65 weatherproof, 6 kV lightning protection
• Operating temperature: -40 °C to +70 °C

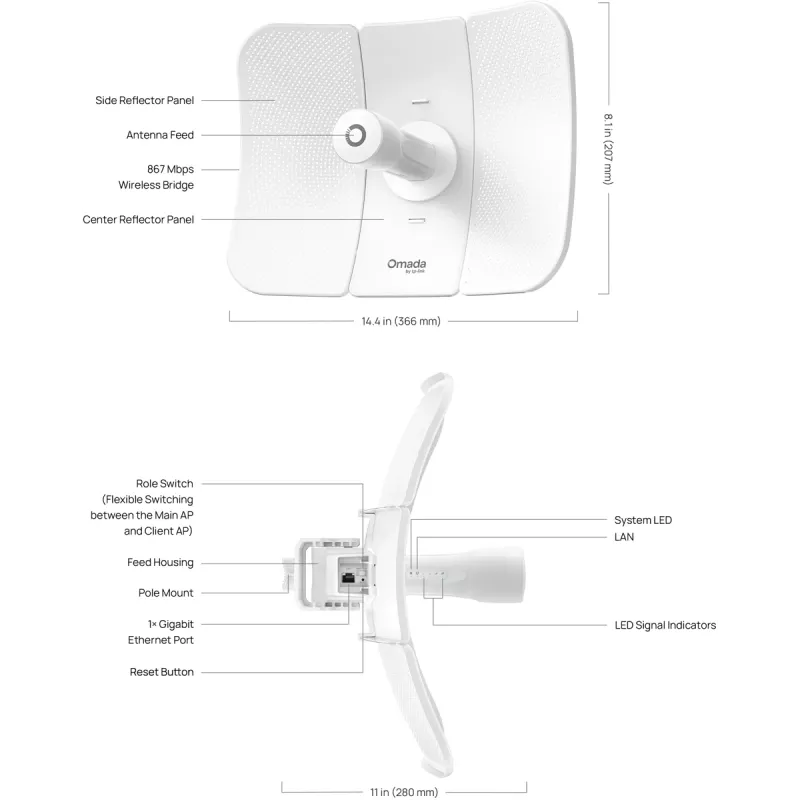

• Color: White; Weight: 1.1 kg; Antenna: External

How to use

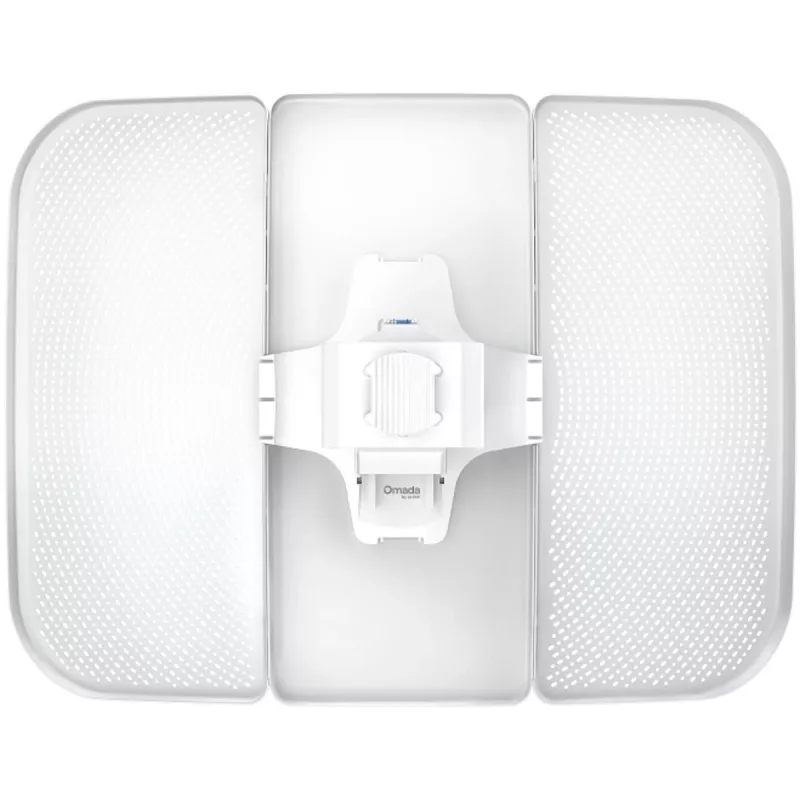

Mount the Beam Bridge 5 UR KIT on a stable outdoor structure with clear line of sight to the remote unit. Connect the Ethernet cable to the Gigabit PoE port and power the device using a compatible PoE injector (802.3af or passive PoE). Use the mobile app to follow the visual alignment guide and perform instant speed testing to verify the link. For larger deployments, switch to Omada SDN mode for centralized configuration and monitoring via Web UI or App.

Recommendations

For optimal performance, ensure unobstructed line of sight between bridges and secure mounting to minimize movement. Use the app-guided alignment during installation and verify lightning protection grounding according to site electrical standards.
