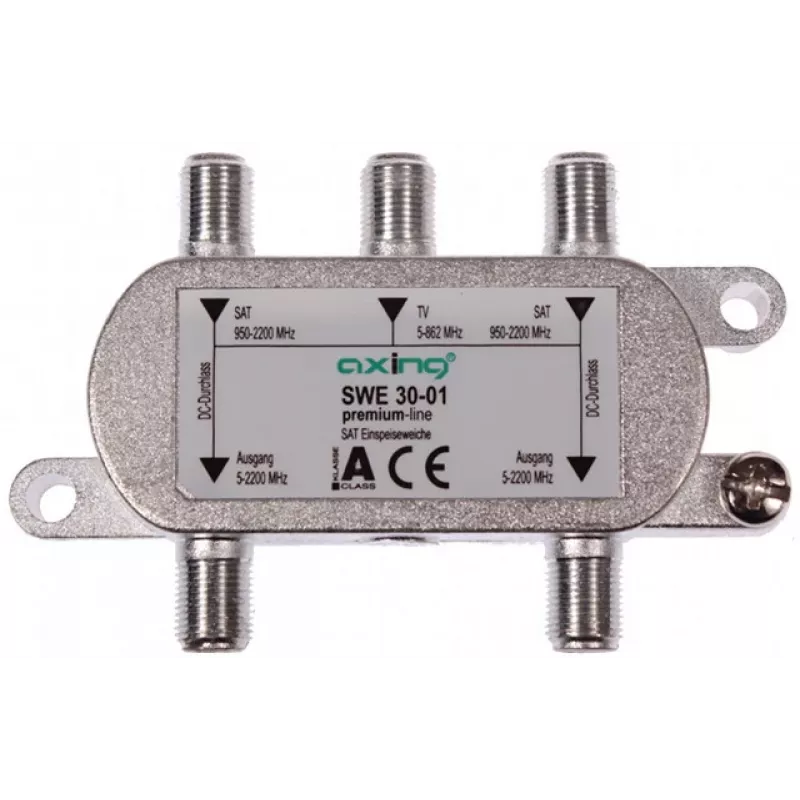

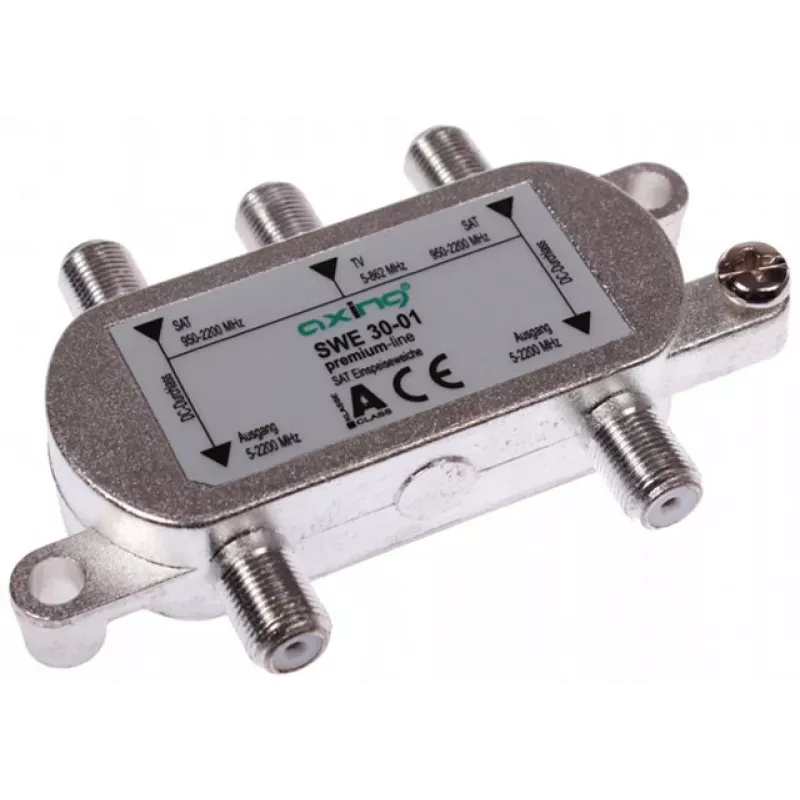

AXING SUMATOR AX SWE 30-01 satelitný/terestriálny kombinátor signálu (diplexer)

The AXING SUMATOR AX SWE 30-01 is a high-performance satellite/terrestrial signal combiner (diplexer) designed to merge terrestrial (DVB-T/T2) and satellite (DVB-S/S2) signals onto a single coaxial cable. This compact and reliable device is ideal for indoor installations where space is limited and signal integrity is paramount.

Advantages

Combines terrestrial and satellite signals into one cable, reducing cabling complexity. Features low insertion loss for both terrestrial and satellite paths, ensuring minimal signal degradation. Provides DC pass on the satellite input for powering an LNB, with a maximum current of 500 mA. Class A shielding offers excellent immunity against interference. Robust metal housing ensures durability and long-term performance.

Suitable for

• Indoor satellite and terrestrial TV installations
• Single-cable distribution in apartments, hotels, and offices
• Upgrading existing coax networks to support both terrestrial and satellite signals

Key specifications

• Product Type: Satellite/Terrestrial Signal Combiner (Diplexer)
• Inputs: 2 (1x Terrestrial, 1x Satellite)
• Outputs: 1 (Combined)
• Terrestrial Frequency Range: 5 - 862 MHz
• Satellite Frequency Range: 950 - 2400 MHz
• Terrestrial Insertion Loss: < 1.5 dB
• Satellite Insertion Loss: < 2.0 dB
• Isolation (Terrestrial to Satellite): > 20 dB
• Isolation (Satellite to Terrestrial): > 20 dB
• DC Pass: Yes, on Satellite input
• Max DC Current (Satellite): 500 mA
• Impedance: 75 Ohm
• Connector Type: F-Type
• Shielding Factor: Class A
• Return Loss: > 10 dB
• Housing Material: Metal
• Installation Environment: Indoor
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper cable termination. This combiner is designed for indoor use only; avoid exposure to moisture or extreme temperatures.
