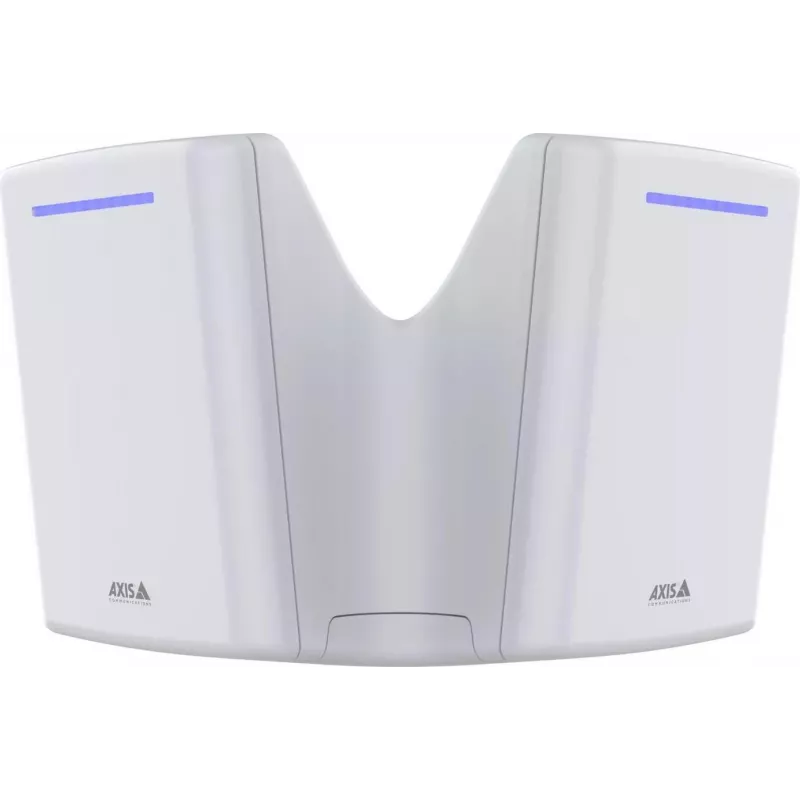

Axis D2122-VE Radar White sieťový bezpečnostný radar

The Axis D2122-VE Radar White is a high-performance network security radar designed for outdoor perimeter detection. Utilizing FMCW radar technology at 60 GHz, it reliably detects and classifies humans and vehicles up to 50 meters away, even in challenging weather conditions. Its robust IP66/IP67 and IK10-rated housing ensures durability in extreme environments, making it an ideal choice for critical infrastructure protection.

Advantages

Advanced radar detection with object classification reduces false alarms. Easy Power over Ethernet (PoE) installation simplifies deployment. ONVIF compliance ensures seamless integration with existing video management systems. Edge-based analytics powered by ARTPEC-8 processor provide real-time intelligence.

Suitable for

• Perimeter security for industrial sites, airports, and data centers
• Border and critical infrastructure monitoring
• Smart city and traffic management applications

Key specifications

• Detection Technology: FMCW Radar (60 GHz)
• Detection Range: Up to 50 m (164 ft)
• Horizontal Detection Angle: 90°
• Vertical Detection Angle: 30°
• Object Classification: Human, Vehicle
• Power: PoE IEEE 802.3af/at Type 1 Class 3, max 12.95 W
• IP Rating: IP66, IP67
• IK Rating: IK10
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Connectivity: RJ45 10BASE-T/100BASE-TX PoE
• I/O Ports: 2 configurable supervised inputs, 2 configurable digital outputs
• Processor: ARTPEC-8
• Memory: 1024 MB RAM, 8192 MB Flash
• Security: Signed firmware, secure boot, Axis Edge Vault, FIPS 140-2 level 2 certified TPM
• Housing Material: Aluminum, polycarbonate
• Color: White
• Mounting: Wall, ceiling, pole (with optional accessories)

Recommendations

For optimal performance, pair with Axis network video recorders or compatible ONVIF systems. Use Axis mounting accessories for flexible installation. Regular firmware updates ensure the latest security features.
