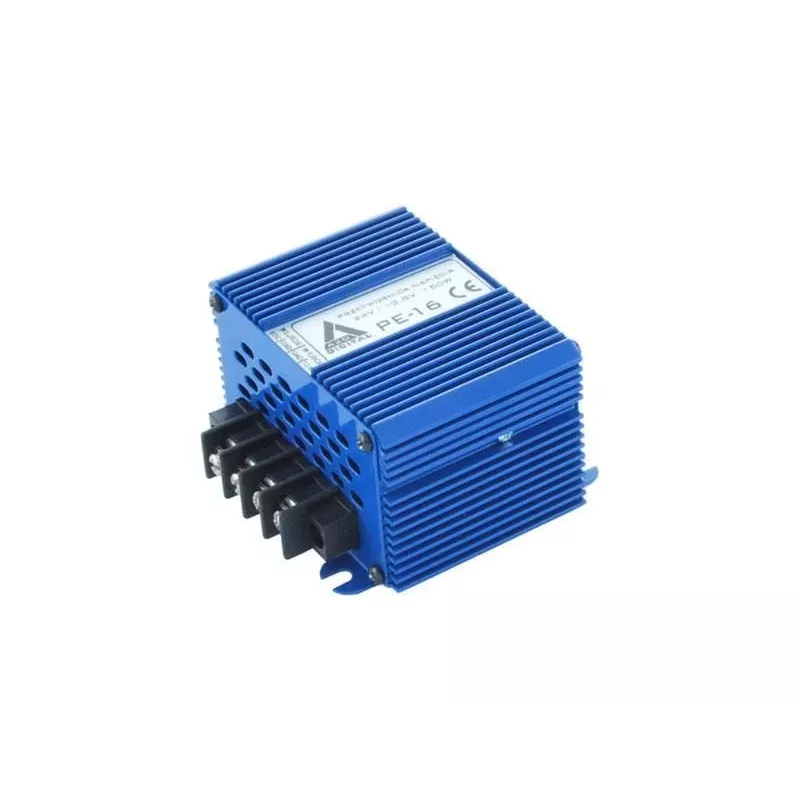

AZO Digital 24 VDC / 13,8 VDC menič napätia PE-16 150W IP21

DC-DC step-down converter engineered to deliver a stable 13.8 VDC output from a 24 VDC input, with a continuous power rating of 150 W. Its regulated output and passive cooling ensure dependable operation for sensitive 12V-nominal equipment in industrial and mobile environments.

Advantages

The PE-16 provides clean, regulated power conversion without active cooling, eliminating fan noise and reducing maintenance. Built-in protection against overload, short circuit, and over-temperature safeguards both the converter and connected devices. The IP21 rating offers basic protection against vertically falling water drops and solid objects larger than 12.5 mm, making it suitable for indoor installations.

Suitable for

• Powering 12V communication equipment from 24V battery banks
• Industrial control systems requiring stable low-voltage DC
• Mobile installations in vehicles with 24V electrical systems
• Backup power systems and DC distribution panels

Key specifications

• Input voltage: 24 VDC nominal
• Output voltage: 13.8 VDC regulated
• Maximum continuous output power: 150 W
• Maximum continuous output current: 10.87 A
• Efficiency: High
• Protection: Overload, short circuit, over-temperature
• Cooling: Passive (fanless)
• Ingress protection: IP21

Recommendations

For reliable DC-DC conversion in 24V systems, the AZO Digital PE-16 delivers consistent 13.8V output with robust protection. Install in a dry, indoor location and ensure adequate ventilation around the unit to maintain optimal operating temperature.
