LevelOne 24V DC priemyselný napájací zdroj, 120W, montáž na DIN lištu

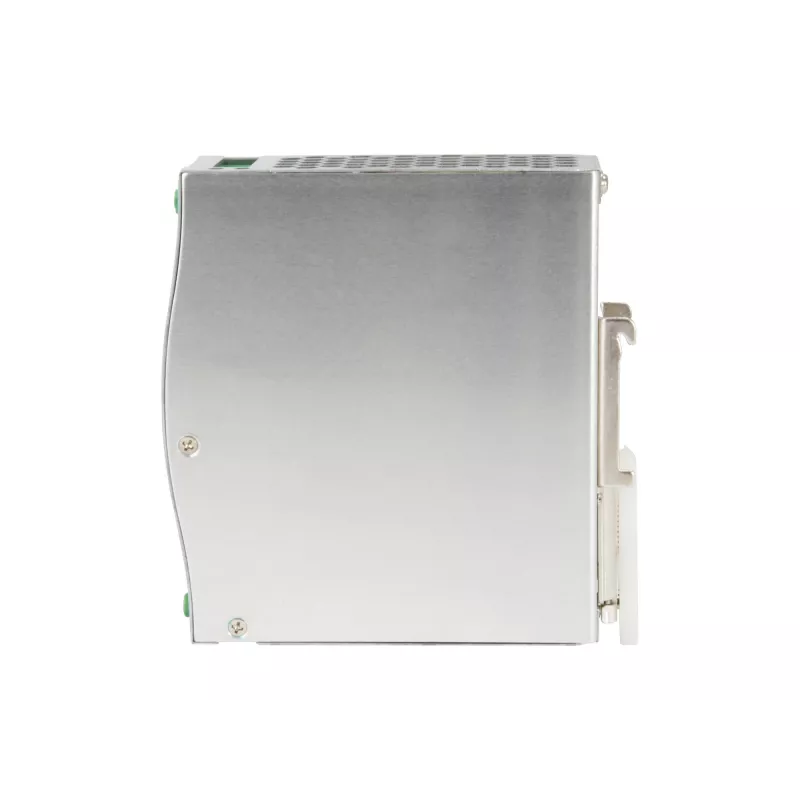

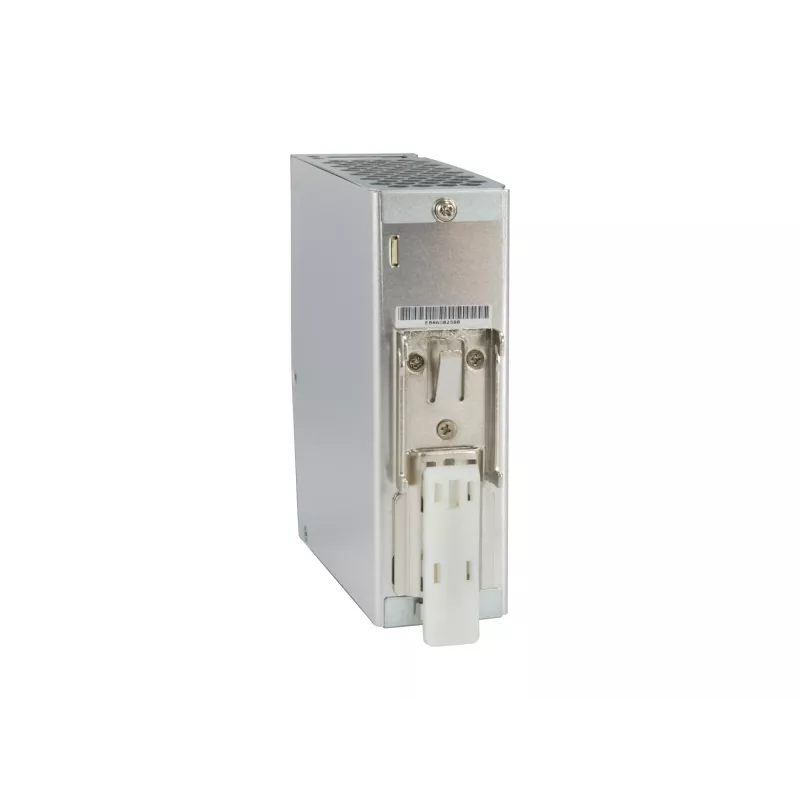

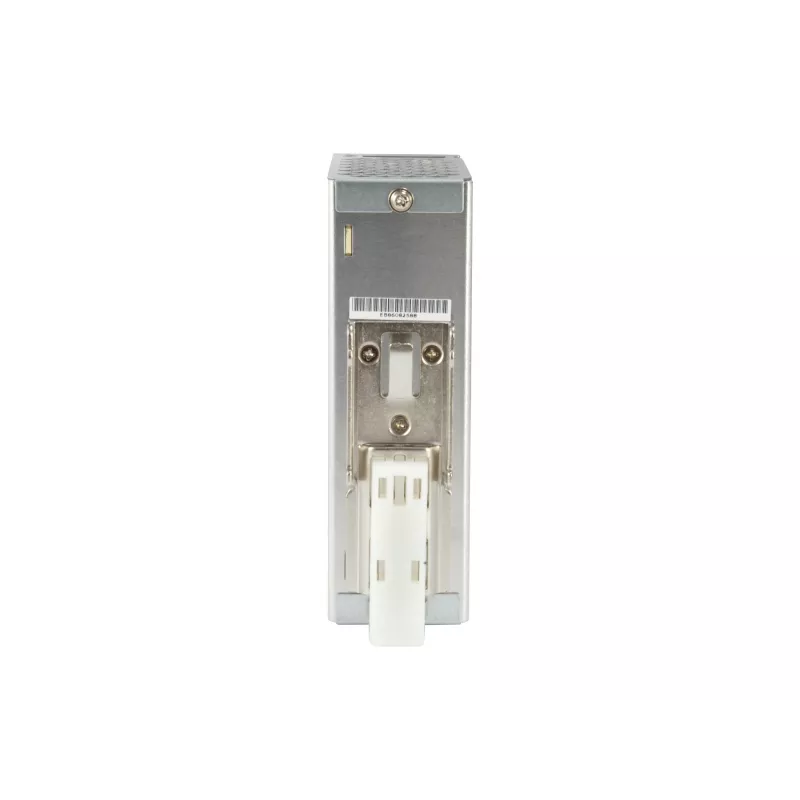

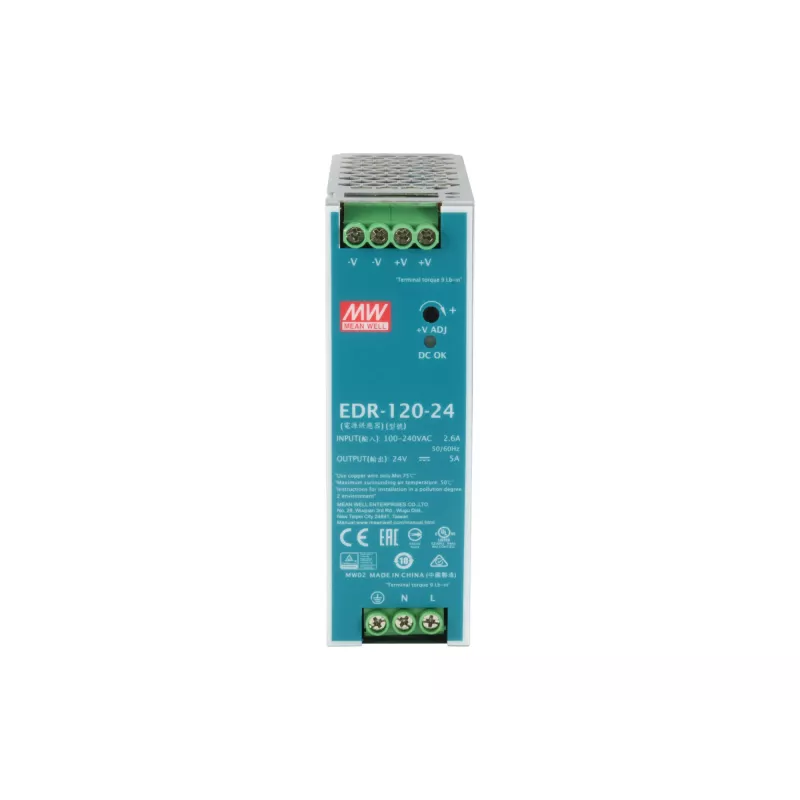

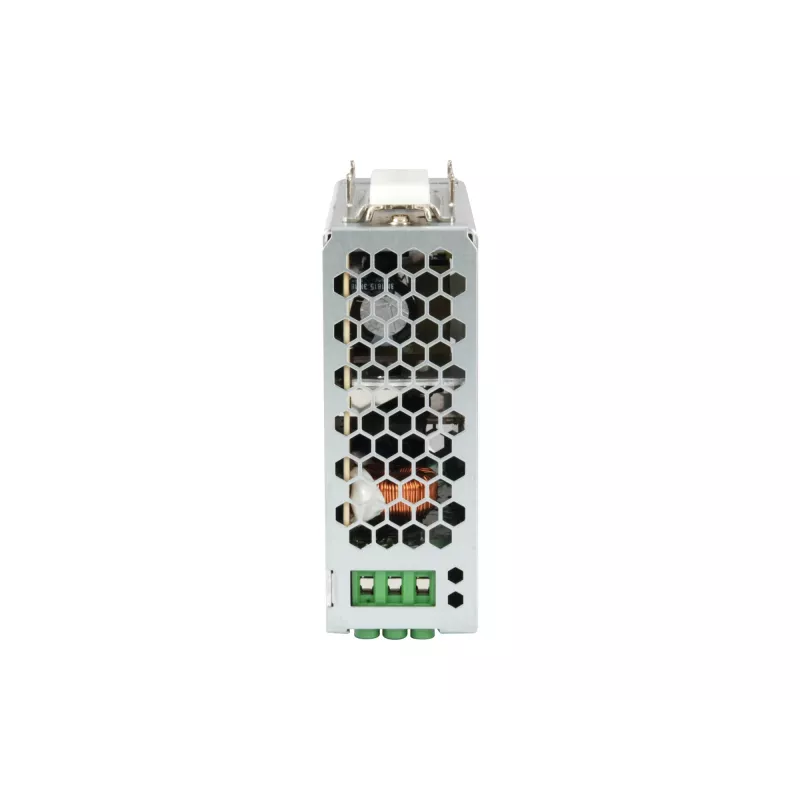

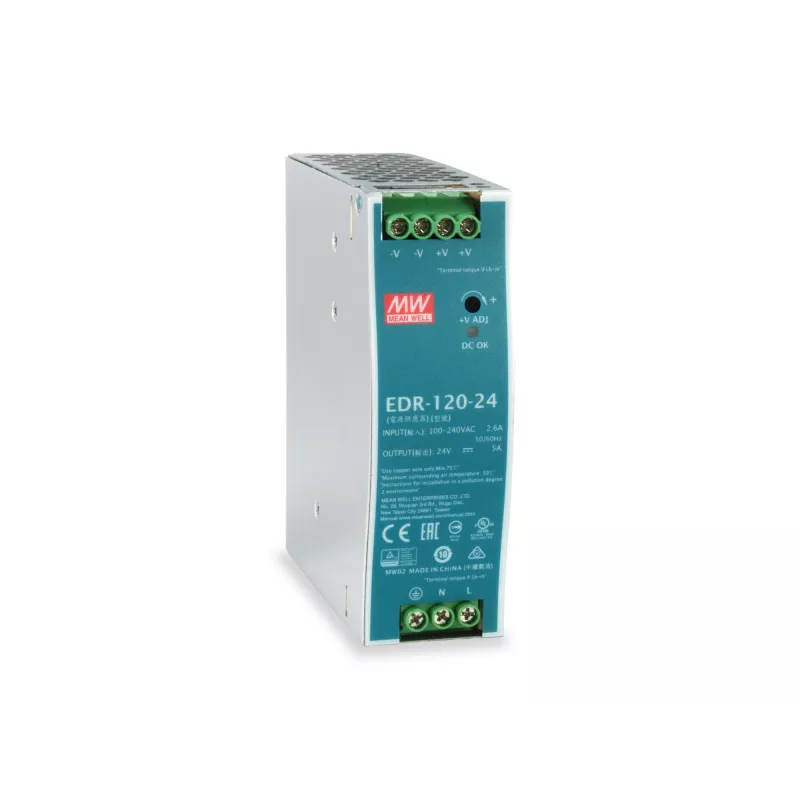

The LevelOne 24V DC Industrial Power Supply POW-2441 is a DIN-rail mounted unit designed for industrial environments. It delivers 120W output from a wide AC input range (90–264V) and meets key safety and EMC standards, supporting continuous operation across an ambient temperature range of -20 to 60 °C without additional cooling.

Advantages

The POW-2441 offers built-in protections against over-voltage, overload and short circuits, a high MTBF of 474600 hours and compact dimensions (125.2 × 113.5 × 40 mm) for space-efficient installation. Certified to UL508 and TUV EN60950-1, it ensures compliance with common industrial safety requirements.

Suitable for

• DIN-rail installations in control cabinets
• Industrial automation and machine controls
• Powering sensors, PLCs and communication modules requiring 24V DC
• Environments with wide AC mains variation (90–264V)

Key specifications

• Output voltage: 24V DC
• Output power: 120W
• Input voltage: 90–264V AC
• Operating temperature: -20 to 60 °C (full load)
• Protections: over-voltage, overload, short circuit
• MTBF: 474600 hours
• Mounting: DIN-rail
• Dimensions: 125.2 × 113.5 × 40 mm
• Certifications: UL508, TUV EN60950-1

How to use

Mount the POW-2441 on a standard DIN rail inside a suitably ventilated control cabinet. Connect the AC mains (90–264V) to the input terminals and connect the 24V DC output to the load, observing correct polarity. Verify protective earth connection where required by local regulations. Power up and confirm stable 24V output before connecting sensitive devices.

Recommendations

Install within a clean, dust-minimized cabinet and avoid placing the unit directly adjacent to heat sources. Ensure wiring sizes and fusing follow local electrical codes and the device’s protection ratings. For long-term reliability, allow the specified ambient temperature range and regular inspection of terminal tightness.
