BALANCER AKU PROTECT VOLT POLSKA 24V pre 24V batérie

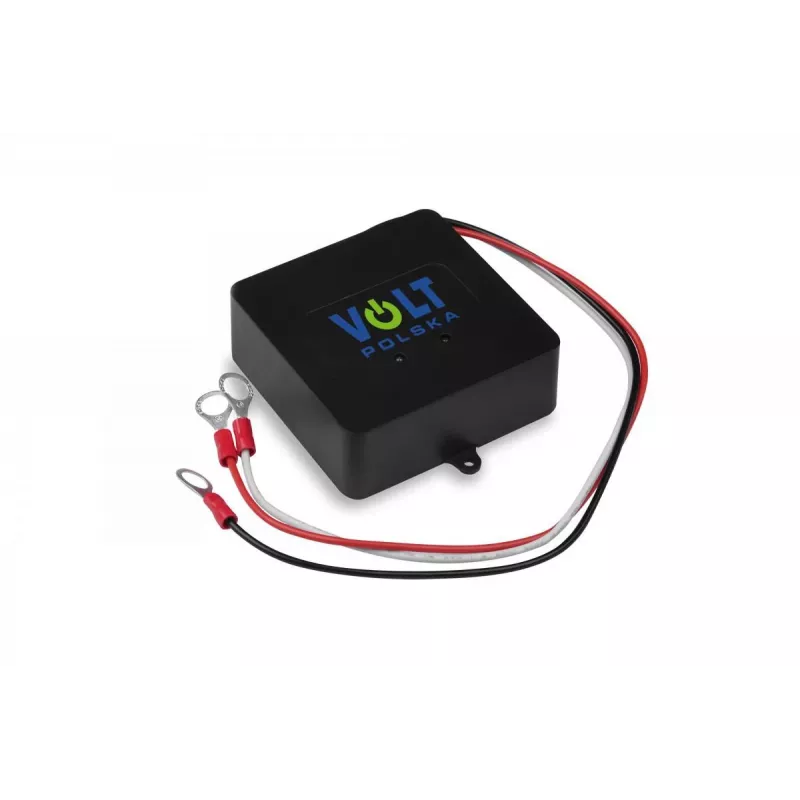

The BALANCER AKU PROTECT VOLT POLSKA 24V is a high-efficiency battery balancer designed to maintain equal voltage levels in series-connected 12V lead-acid batteries, ensuring optimal performance and extended lifespan. Ideal for 24V systems in solar, RV, marine, UPS, and off-grid applications.

Advantages

Extends battery life by preventing overcharging and deep discharge of individual cells. High efficiency (≥95%) minimizes energy loss. Compact ABS housing with surface mount design for easy installation. Built-in protection against reverse polarity and short circuits.

Suitable for

• 24V battery banks (2x 12V) in solar power systems
• Recreational vehicles (RVs) and caravans
• Marine and boat electrical systems
• Uninterruptible power supplies (UPS)
• Off-grid and remote power installations

Key specifications

• System Voltage: 24V DC
• Individual Battery Voltage: 2x 12V DC
• Balancing Current (Continuous): 1A
• Quiescent Current: <3mA
• Over-voltage Disconnect (per 12V battery): 15V
• Under-voltage Disconnect (per 12V battery): 10V
• Operating Temperature Range: -20°C to +55°C
• Protection Features: Reverse Polarity, Short Circuit
• Efficiency: ≥95%
• LED Indicators: Power, Balancing Status
• Connection Type: Screw Terminals
• Recommended Battery Type: Lead-Acid (GEL, AGM, Flooded)
• Housing Material: ABS Plastic
• Mounting Type: Surface Mount
• Max Voltage Difference for Balancing: 0.1V
• Wiring: 3-wire connection (2x battery terminals, 1x common)

Recommendations

For best results, use with two 12V lead-acid batteries of the same capacity and age. Ensure proper wiring according to the manual. Suitable for indoor or protected outdoor installations.
