Barkódový modul čítačky barkódov Datalogic Magellan 1500i

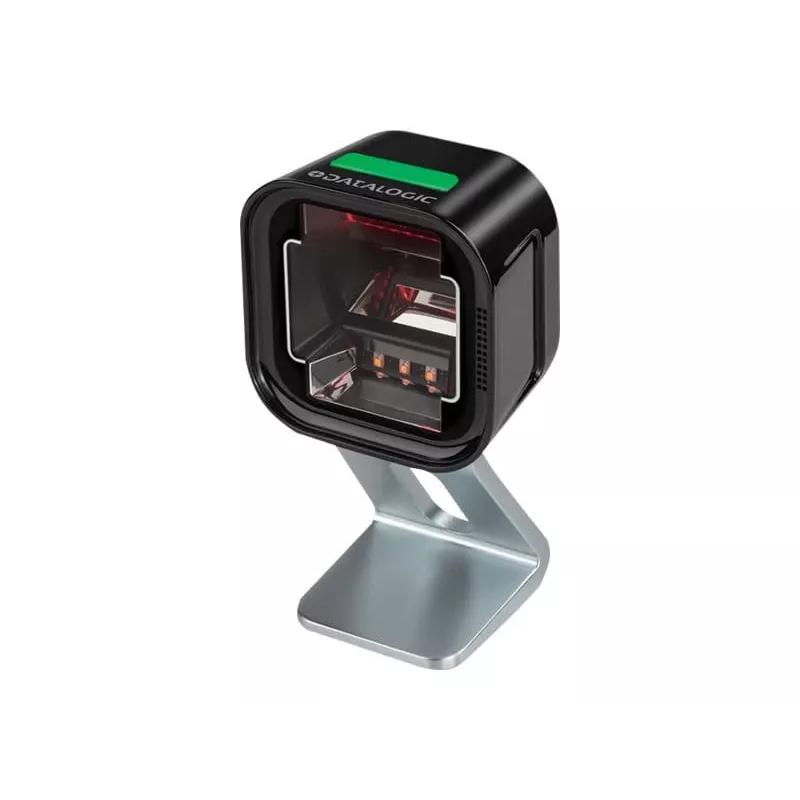

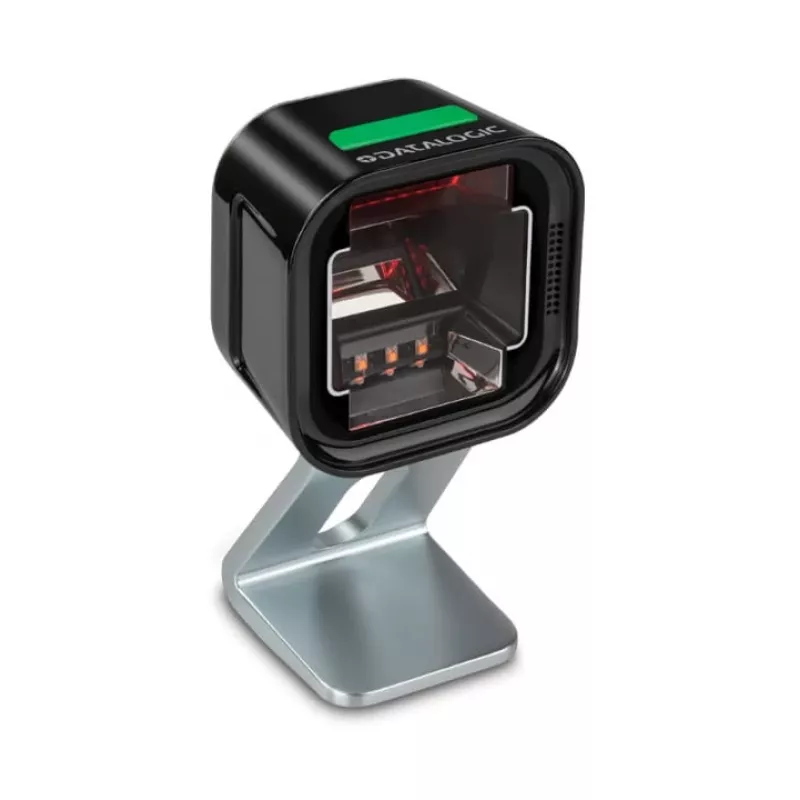

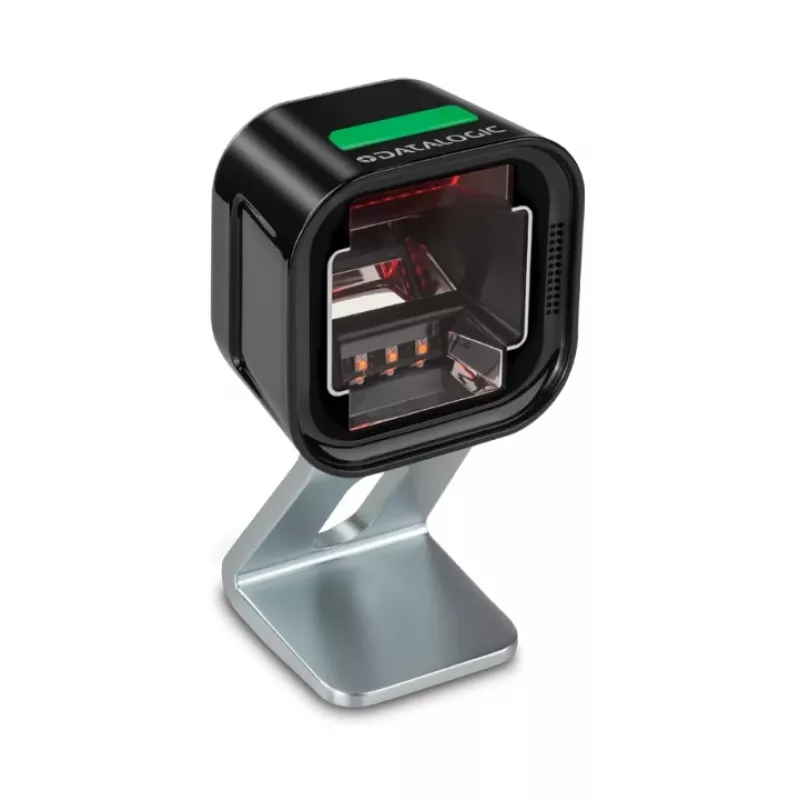

The Datalogic Magellan 1500i is a high-performance presentation barcode module designed for retail POS, pharmacy counters and customer service stations. It reads both 1D and 2D barcodes from printed labels and mobile screens, and supports Digimarc® Barcode watermark decoding for enhanced recognition. The compact module offers wired connectivity via RS-232 and USB, an IP52 protection rating, and operates on 5V input voltage.

Advantages

The Magellan 1500i delivers reliable decoding of 1D and 2D codes, including Digimarc® watermarked barcodes, in a compact, lightweight housing (240 g). Its RS-232 and USB interfaces allow straightforward integration into existing POS and data-capture systems. The IP52 rating provides basic protection against dust and moisture, making it suitable for typical retail and service environments while maintaining low power consumption at 5V.

Suitable for

• Retail point-of-sale barcode scanning
• Pharmacy counter barcode reading
• Customer service and returns processing
• Inventory and stock management terminals

Key specifications

• Supported symbologies: 1D and 2D barcodes, Digimarc® watermark decoding
• Interfaces: RS-232, USB (wired)
• Protection rating: IP52
• Weight: 240 g
• Dimensions (approx.): 60 mm width, 75 mm depth
• Input voltage: 5 V
• Manufacturer: Datalogic, MPN MG1501-10231-0200

How to use

Install the Magellan 1500i module into the target POS or scanning housing following the manufacturer's mechanical and electrical guidelines. Connect the unit to the host system using the provided RS-232 or USB cable and configure communication parameters on the host. Present barcodes—either printed labels or mobile device screens—to the scanner window at typical presentation angles; the module will decode supported 1D/2D and Digimarc® barcodes automatically. Use the supplier's configuration tools to adjust symbology settings and communication options as required.

Recommendations

For reliable operation, mount the module in a stable position with a clear view of the scanning area, keep the window free of scratches and heavy contamination, and ensure proper cable connections. Use the vendor configuration utility to enable only the required symbologies to optimize decoding speed and reduce accidental reads.
