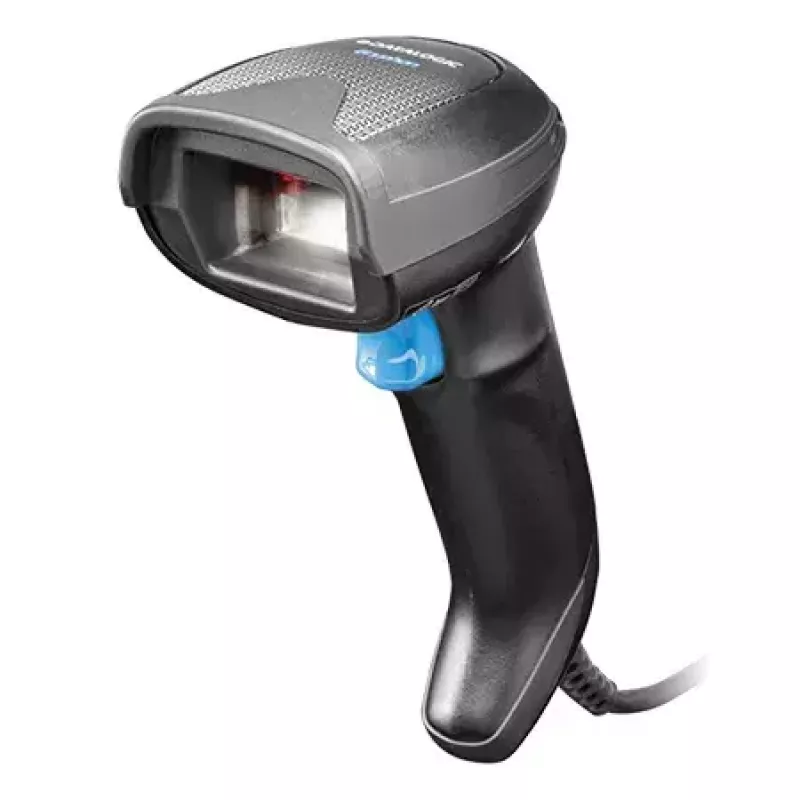

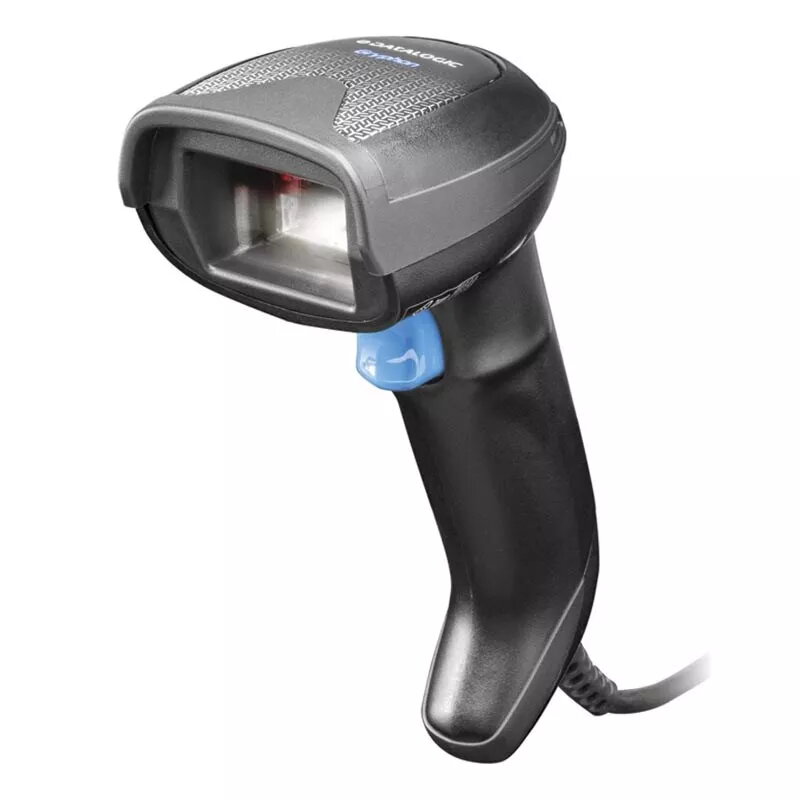

Ručný snímač čiarových kódov Datalogic Gryphon I GD4500

The Datalogic Gryphon I GD4500 is a wired handheld 1D/2D bar code reader designed for general-purpose scanning in retail, warehouse and office environments. The desk (corded) version delivers reliable reading performance using a Megapixel sensor with warm-white illumination and a highly visible 4‑dot aimer, and is available in a healthcare variant with disinfectant-ready and anti-microbial enclosure.

Advantages

The Gryphon I GD4500 provides advanced imaging performance with warm-white lighting that improves readability of colored labels and is gentler on the operator’s eyes. Motionix™ motion-sensing technology automatically selects the appropriate scanning mode for handheld or presentation use. The 4‑dot aimer defines a precise reading zone and the center cross aids targeted scanning in multi-barcode situations. Its wired connectivity (USB/RS-232) and IP52 rating make it suitable for demanding everyday use.

Suitable for

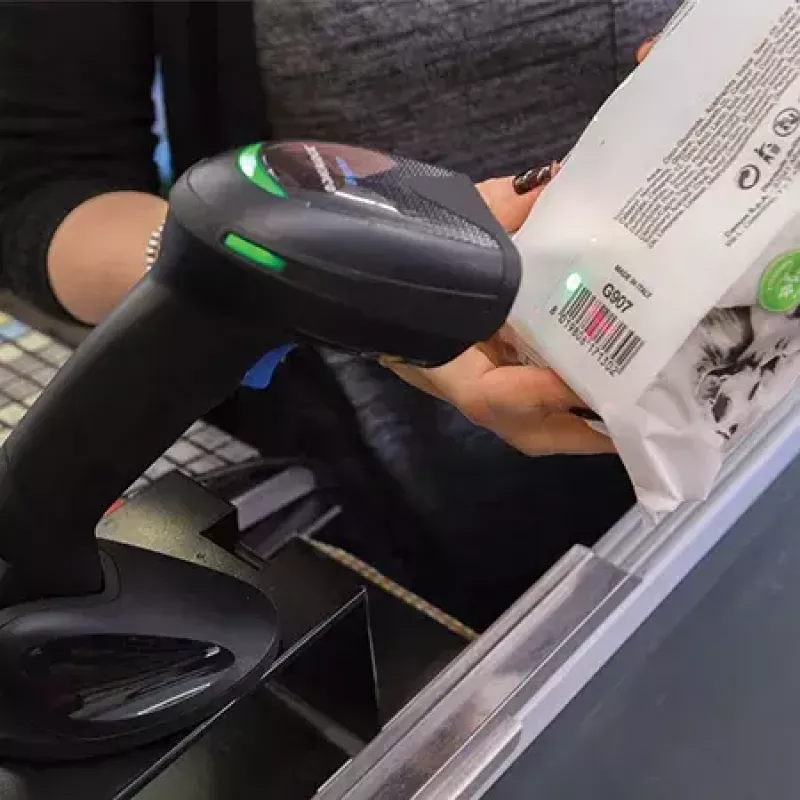

• Point-of-sale scanning in retail
• Inventory and picking in warehouses
• Document and label verification in offices and logistics
• Healthcare environments (use healthcare model with disinfectant-ready enclosure)

Key specifications

• Scanner type: 1D/2D imager

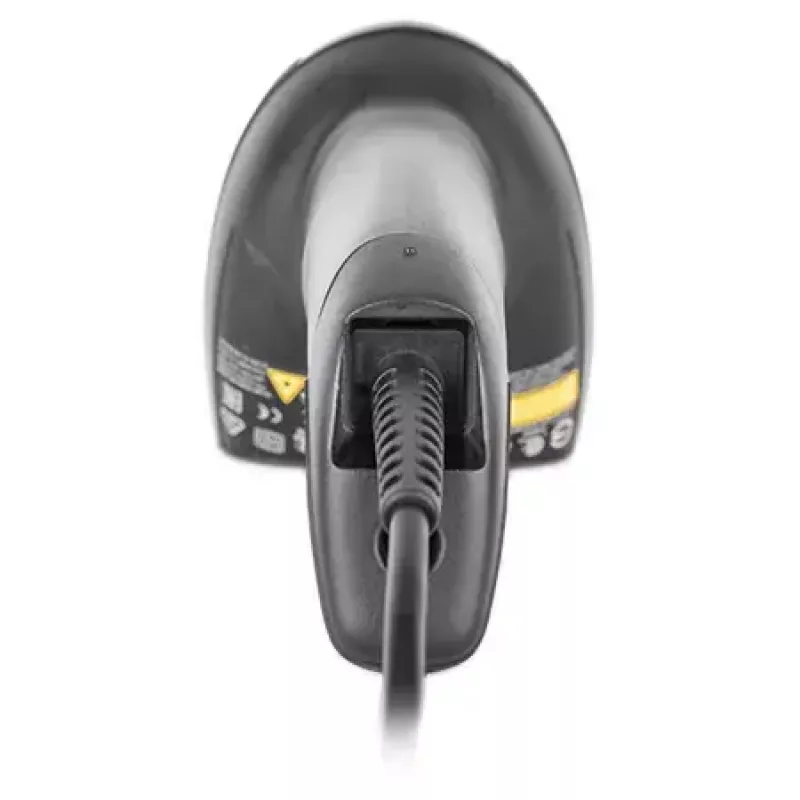

• Connectivity: Wired (USB, RS-232)

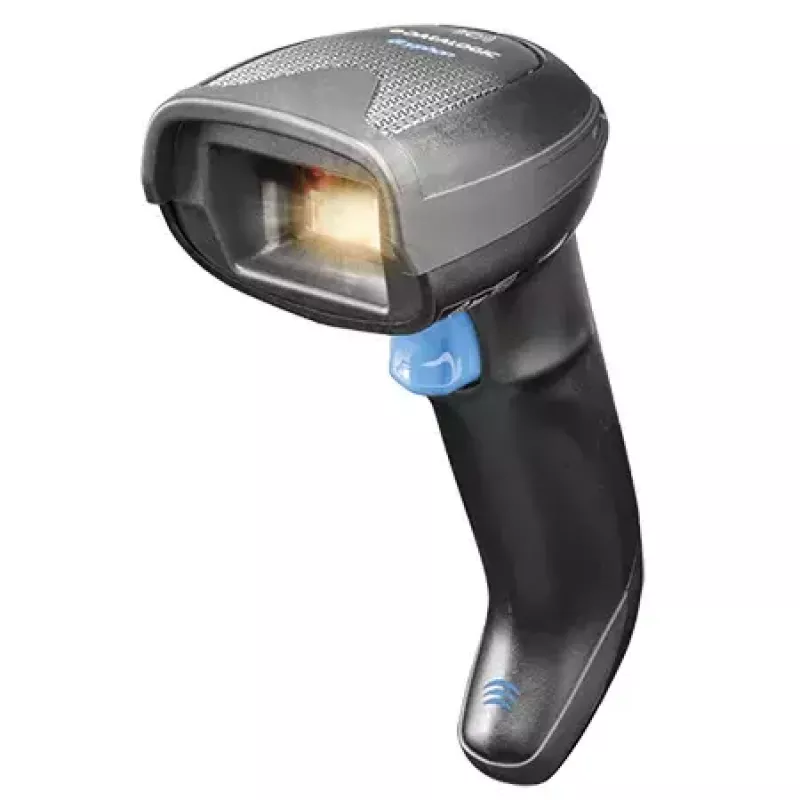

• Sensor: Megapixel imager with warm-white illumination
• Aimer: Highly visible 4‑dot aimer with center cross
• Ingress protection: IP52
• Weight: 0.161 kg
• Supported codes (examples): Code 39, EAN-13, UPC, GS1 DataBar, PDF417, Data Matrix, QR Code, Aztec
• Color: Black

How to use

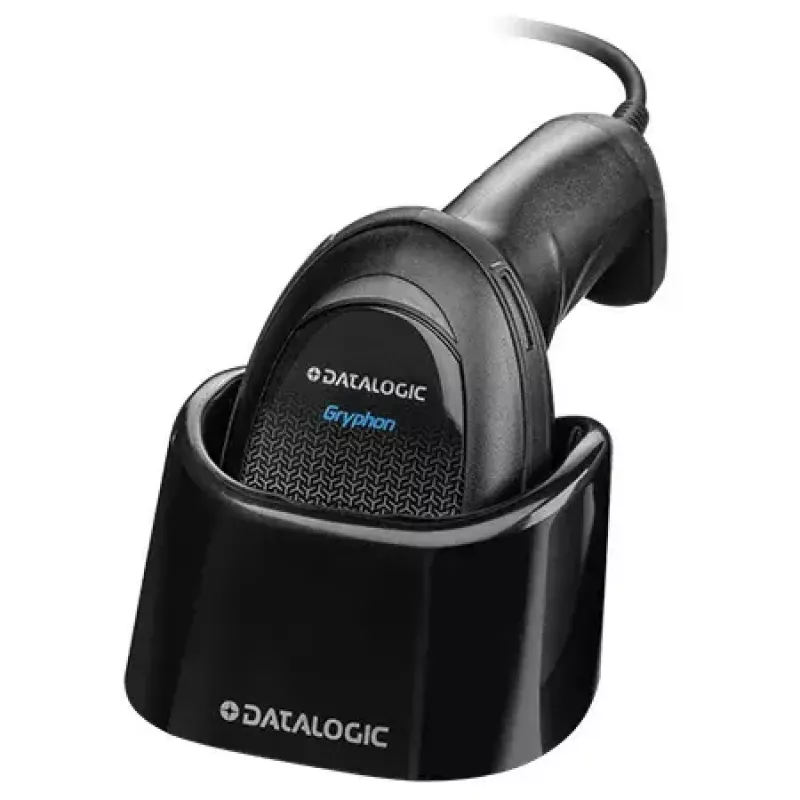

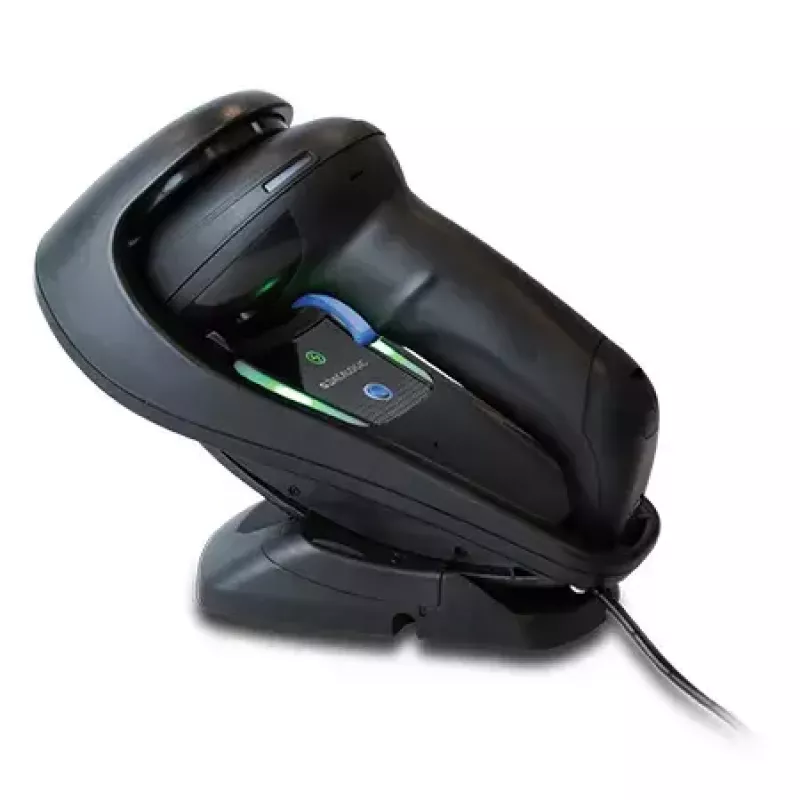

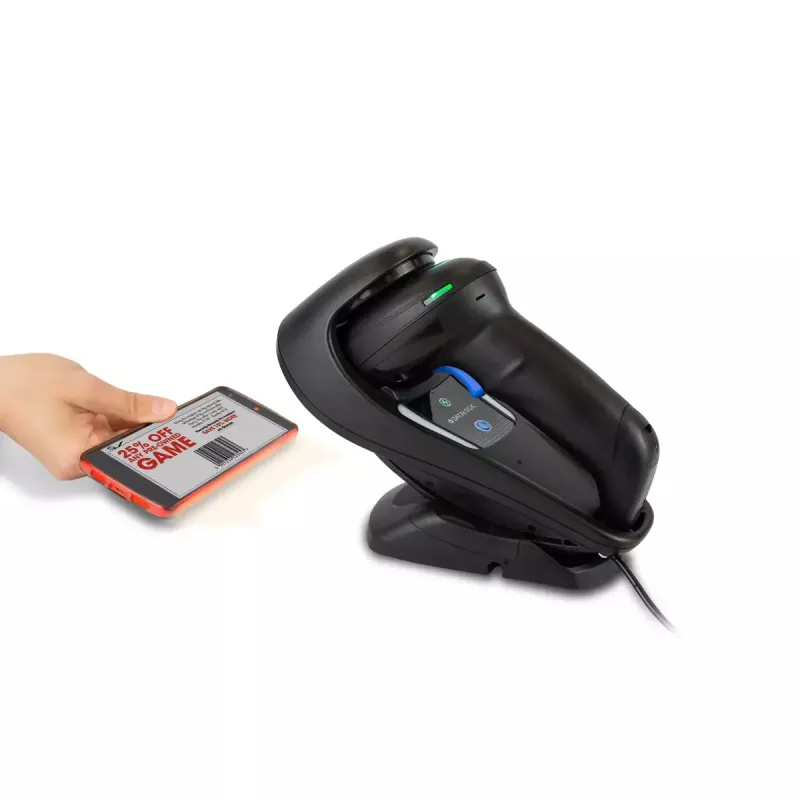

Connect the GD4500 to the host system using the appropriate cable (USB or RS-232) and configure the interface per the host requirements. Position the reader so the code is inside the 4‑dot aimer area and press the trigger or allow Motionix™ to switch to presentation mode if using a stand. For handheld scanning, center the barcode under the aimer crosshair to achieve a fast, targeted read.

Recommendations

For environments requiring frequent cleaning or infection control, choose the Healthcare model with disinfectant-ready and anti-microbial enclosure and follow the manufacturer’s cleaning guidelines. Use warm-white illumination to improve reading of colored labels and position items to keep barcodes within the aimer zone for consistent reads.
