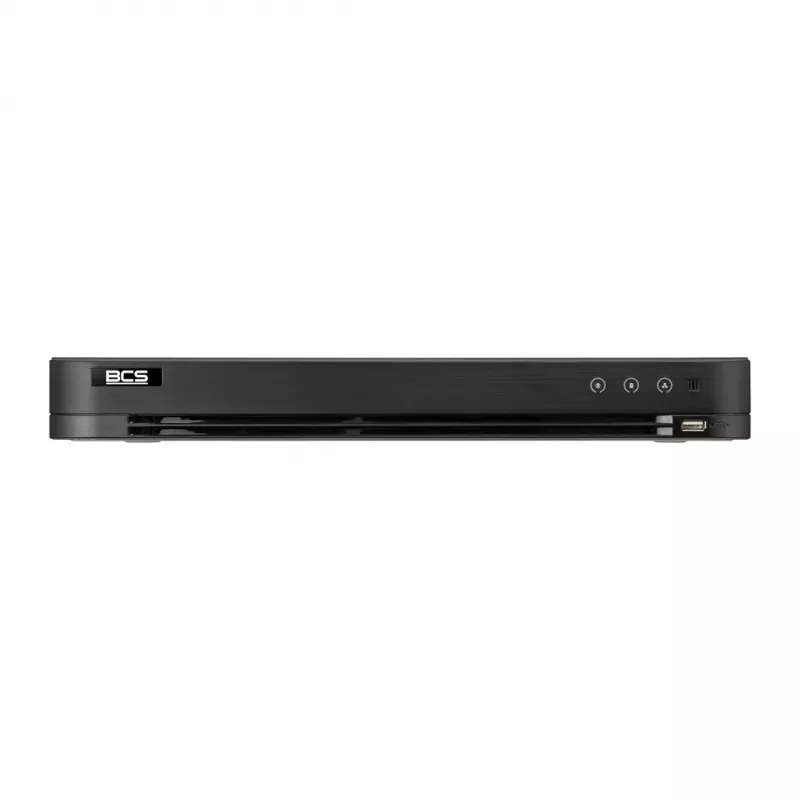

BCS 16-kanálový analógový HD DVR rekordér BCS-V-XVR1602-Ai s AI funkciami

The BCS-V-XVR1602-Ai is a 16-channel analog HD DVR recorder designed for professional surveillance systems. It supports HD-CVI, AHD, TVI, and CVBS auto-detect on all 16 BNC inputs, with additional support for up to 8 IP cameras (6MP max). The recorder features advanced AI capabilities including SMD Plus on all analog channels, Perimeter Protection on 4 channels, and Face Detection on 2 channels, enhancing security and reducing false alarms.

Advantages

This recorder offers high-quality recording at up to 5M-N resolution with H.265+ compression for efficient storage. The built-in SMD Plus technology intelligently filters out irrelevant motion events, while Perimeter Protection and Face Detection provide targeted security. With a single SATA HDD bay supporting up to 10TB, it offers ample storage for extended recording.

Suitable for

• Retail stores requiring intelligent motion detection and face recognition
• Warehouses and logistics centers needing perimeter monitoring
• Office buildings with multiple analog cameras
• Small to medium businesses upgrading to AI-based surveillance

Key specifications

• Video Input: 16 BNC channels (HD-CVI/AHD/TVI/CVBS) + 8 IP channels
• Max Analog Recording Resolution: 5M-N (1280x1920) at 10fps
• Video Compression: H.265+/H.265/H.264+/H.264
• AI Features: SMD Plus (16 ch), Perimeter Protection (4 ch), Face Detection (2 ch)
• Audio: 1x RCA input, 1x RCA output, two-way audio support
• Storage: 1x SATA HDD up to 10TB
• Network: 1x RJ-45 10/100 Mbps
• USB: 2x USB 2.0 (1 front, 1 rear)
• Power: DC 12V / 2A, consumption <7W (without HDD)

Recommendations

For optimal performance, pair with BCS analog HD cameras and use high-quality SATA HDDs rated for surveillance. Ensure proper ventilation and use the included power adapter. The recorder supports mobile app BCS Point for remote viewing.
