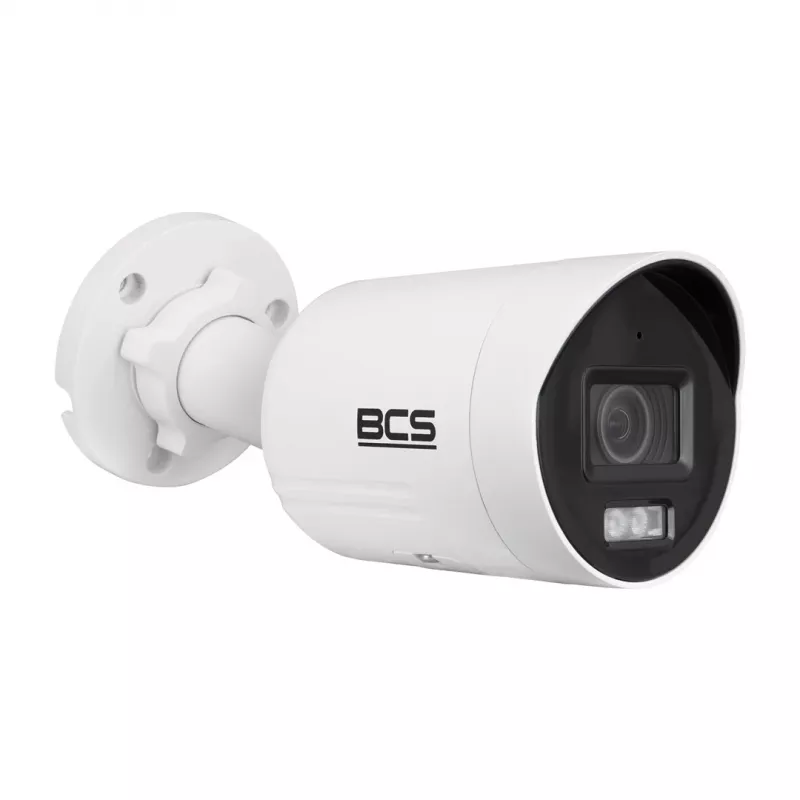

BCS 4MP IR bullet IP kamera BCS-V-TIP24FCR4L4-Ai2(2) 2,8 mm

The BCS-V-TIP24FCR4L4-Ai2(2) is a high-performance 4MP IR bullet IP camera designed for outdoor surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 2592x1520 resolution at 20 fps. Equipped with a 2.8mm fixed lens (102° horizontal FOV) and smart IR up to 30m, it ensures clear imaging day and night. With 120dB True WDR, 3D DNR, and intelligent analytics (perimeter protection, SMD Plus), this camera is ideal for perimeter security in commercial and residential applications.

Advantages

High 4MP resolution with H.265+ compression reduces bandwidth and storage. True WDR 120dB handles challenging lighting. Smart IR adapts to scene for optimal night vision. IP67 metal housing withstands harsh weather. Supports PoE for easy installation.

Suitable for

• Outdoor perimeter surveillance
• Parking lots, warehouses, and building entrances
• Retail and industrial sites

Key specifications

• Image Sensor: 1/2.7" 4MP Progressive CMOS
• Max Resolution: 2592x1520 (4MP)
• Lens: 2.8mm fixed, FOV 102°
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Frame Rate: 20fps @ 4MP
• Network: 1x RJ-45 10/100 Mbps
• Power: 12V DC / PoE (802.3af), max 5.5W
• Ingress Protection: IP67
• WDR: 120dB True WDR
• Noise Reduction: 3D DNR
• Analytics: Perimeter protection, SMD Plus
• Local Storage: MicroSD up to 256GB
• Built-in Microphone: Yes
• Protocols: ONVIF (S/G/T), CGI, P2P
• Operating Temperature: -40°C to +60°C
• Housing: Metal

Recommendations

For optimal performance, use a PoE switch or injector. Ensure proper mounting to achieve desired field of view. Pair with BCS NVR for full analytics integration.
