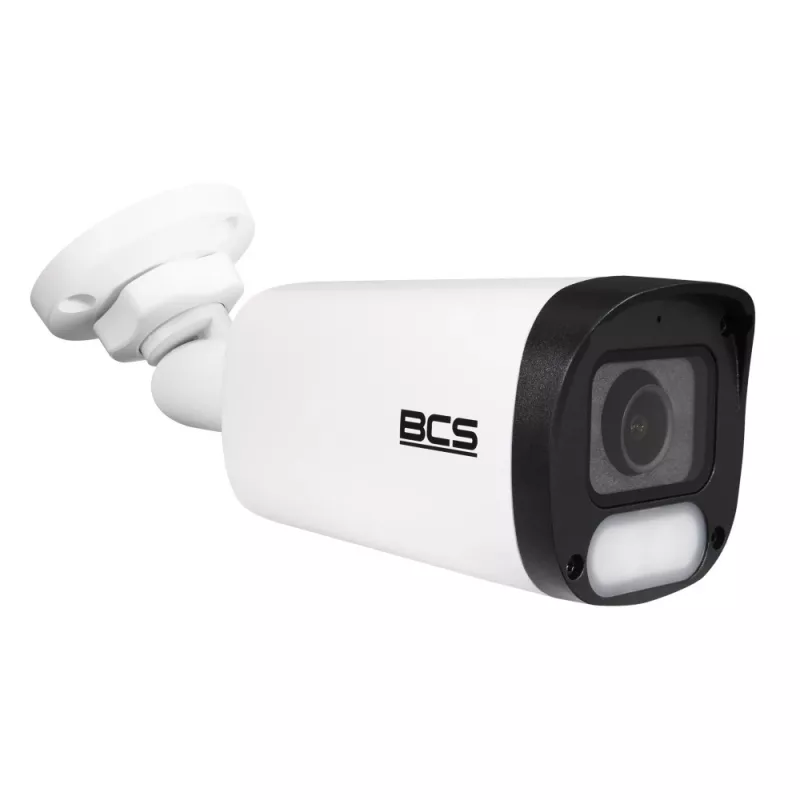

BCS 6MP IP bullet kamera BCS-P-TIP26FCL3-Ai1

The BCS-P-TIP26FCL3-Ai1 is a high-performance 6 Megapixel IP bullet camera designed for professional outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 3072 x 2048 resolution at 20 fps. Equipped with a 2.8 mm fixed lens, 106° horizontal field of view, and powerful IR LEDs for night vision up to 30 meters, this camera ensures clear imaging around the clock. Advanced AI capabilities include Smart Motion Detection (SMD) and Perimeter Protection (Intrusion and Tripwire) for intelligent alerts. The camera supports H.265+ compression to save bandwidth and storage, and features a built-in microphone for audio recording. With IP67 weatherproof rating and a metal housing, it withstands harsh outdoor conditions. Power via DC 12V or PoE (802.3af) simplifies installation. Local storage is supported via microSD card up to 256 GB.

Advantages

High 6MP resolution with excellent low-light performance; AI-powered analytics reduce false alarms; robust IP67 metal design for long-lasting outdoor use; flexible power options (DC12V/PoE); efficient H.265+ compression saves storage.

Suitable for

• Outdoor perimeter surveillance
• Commercial and residential security
• Parking lots, warehouses, and building entrances

Key specifications

• Sensor: 1/2.7" 6MP CMOS
• Max Resolution: 3072 x 2048 @ 20 fps
• Lens: 2.8 mm fixed
• Horizontal Angle of View: 106°
• Night Vision: IR up to 30 m
• Video Compression: H.265+, H.265, H.264+, H.264
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100 Mbps
• Power: DC 12V / PoE (802.3af), max 5.5 W
• Ingress Protection: IP67
• AI Features: SMD, Perimeter Protection
• Local Storage: microSD slot up to 256 GB
• Operating Temperature: -40°C to +60°C
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector (802.3af) and a high-quality microSD card (Class 10 or UHS-I). Mount the camera at a height of 2.5-3 meters for best coverage.
