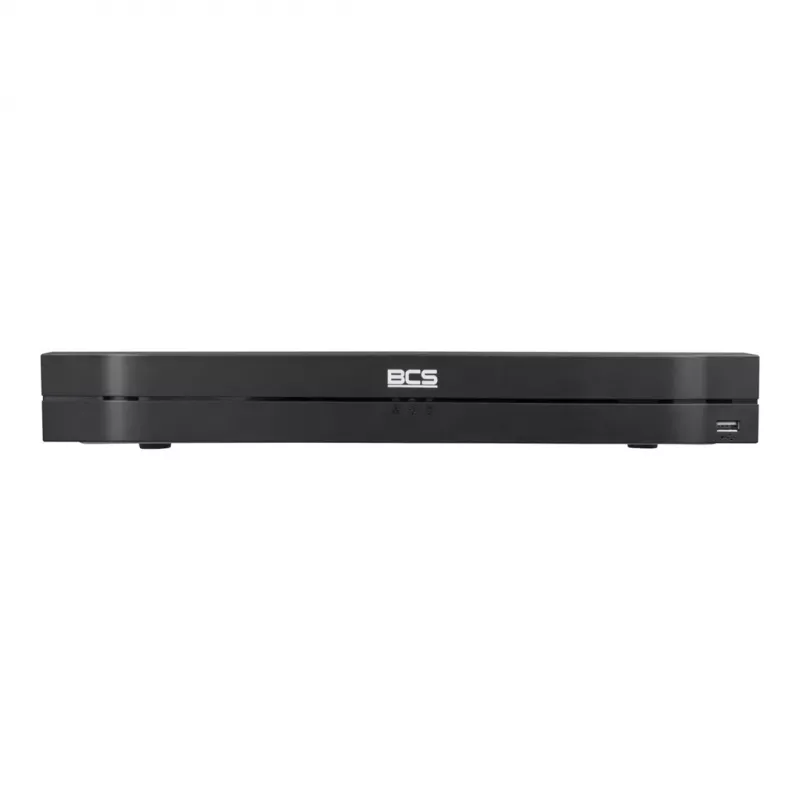

BCS-L-NVR0802-A-4KE(2) 8-kanálový 4K sieťový videorekordér s H.265+ kompresiou

Step up to dependable 4K surveillance without breaking the bank. The BCS-L-NVR0802-A-4KE(2) is a dedicated 8-channel IP network video recorder engineered for small-to-medium businesses, retail spaces, and residential installations. By supporting the latest H.265+ compression, this unit drastically reduces bandwidth and storage requirements while retaining crisp details – even in challenging lighting. With dual SATA bays, flexible alarm inputs, and simultaneous HDMI/VGA output, it gives you professional-grade control over your security network.

Highlights

• 8-channel IP video recording with up to 4K (3840x2160) resolution
• H.265+/H.265/H.264+/H.264 codec support for efficient storage
• 80 Mbps incoming / 60 Mbps outgoing bandwidth
• Dual SATA 3.0 bays, each supporting up to 10 TB (20 TB total)
• 1× HDMI (4K) and 1× VGA (1080p) video output
• 4 alarm inputs / 2 alarm outputs for external sensor integration
• 2× USB 2.0 ports for backup and mouse control
• 1U compact design, suitable for desktop or rack mounting

In daily use

Mount the BCS-L-NVR0802-A-4KE(2) on your desk or in a server rack, connect your IP cameras via the autosensing 10/100 Mbps Ethernet port, and configure recording schedules in minutes. Use the HDMI output to view live feeds on a monitor or TV, or rely on the handheld app for remote access. The USB ports make it simple to export evidence or attach a mouse for on-screen navigation. With its low power draw and wide operating temperature range, this NVR runs reliably in demanding installations.

Full specifications

• Video channels: 8
• Max recording resolution: 4K (3840×2160)
• Video compression: H.265+, H.265, H.264+, H.264
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 60 Mbps
• Video outputs: 1× HDMI (up to 4K), 1× VGA (up to 1080p)
• Audio: 1× RCA in / 1× RCA out
• Alarm: 4 in / 2 out
• Network: 1× RJ-45 (10/100 Mbps Ethernet)
• USB: 2× USB 2.0
• HDD: 2× SATA 3.0, up to 10 TB per bay
• Power: DC 12 V, 4 A
• Power consumption: <10 W (without HDD)
• Operating temperature: -10°C to +55°C
• Humidity: 10% to 90% RH
• Form factor: 1U desktop/rackmount

Final note

Backed by BCS's commitment to quality, the NVR0802-A-4KE(2) offers dependable recording, intuitive operation, and the flexibility to grow with your surveillance needs. Its combination of 4K support, efficient H.265+ compression, and extensive I/O makes it a smart choice for any security professional.
