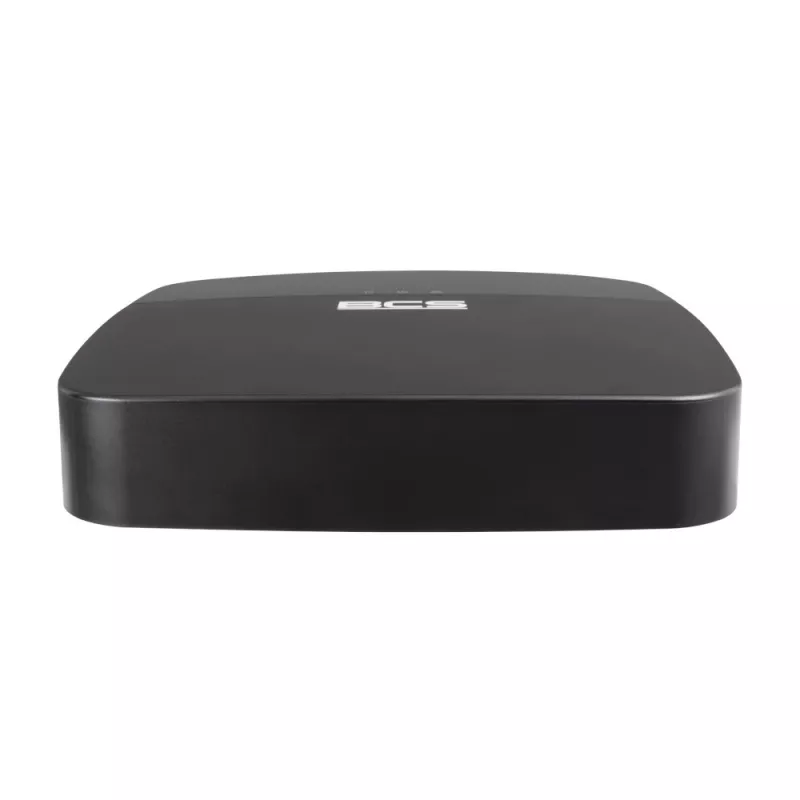

BCS-L-SNVR0401-4KE-4P(2) 4-kanálový 4K PoE sieťový videorekordér

Compact yet powerful, the BCS-L-SNVR0401-4KE-4P(2) packs 4K recording and four PoE ports into a single, affordable unit, eliminating the need for a separate switch. Ideal for small businesses and home setups, it delivers crisp 8MP video with efficient H.265+ compression to maximize storage.

Highlights

• Supports up to 4 IP cameras with built-in PoE (IEEE 802.3af/at)
• 4K UHD recording at 8MP resolution for exceptional detail
• H.265+/H.265/H.264+/H.264 compression to save disk space
• 1 SATA bay supports up to 8TB per drive for long-term storage
• Dual video output: HDMI up to 4K and VGA up to 1080p
• Remote monitoring via BCS Manager app for iOS and Android

In daily use

Setting up the recorder is straightforward: connect IP cameras directly to the four integrated PoE ports, which supply both power and data over a single Ethernet cable. The intuitive BCS Manager mobile app allows live viewing and playback from anywhere, while the HDMI output lets you connect a monitor for on-site operation. With support for simultaneous playback of 4 channels at 1080p, you can review multiple camera feeds without missing a moment.

Full specifications

• Number of IP Channels: 4 Channels
• Max Recording Resolution: 8 Megapixels (4K UHD)
• PoE Ports: 4 (IEEE 802.3af/at)
• HDD Bays: 1 x SATA
• Max HDD Capacity: 8 TB per drive
• Video Compression: H.265+/H.265/H.264+/H.264
• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio Inputs: 1x RCA
• Audio Outputs: 1x RCA
• Network Interface: 1x RJ-45 10/100Mbps Ethernet
• USB Ports: 2x USB 2.0
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 40 Mbps
• Simultaneous Playback: 4 channels @ 1080p or 1 channel @ 8MP
• Power Supply: DC 48V / 1.25A
• Power Consumption: < 10W (without HDD)
• Operating Temperature: -10°C to +55°C
• Mobile App Support: BCS Manager (iOS/Android)

Final note

With its integrated PoE and 4K capability, this NVR is a complete, ready-to-deploy surveillance solution for small-scale installations.
