BCS-L-XVR0401(7) 4-kanálový analógový HD rekordér s 2 IP kanálmi, H.265+, 1 SATA do 6TB

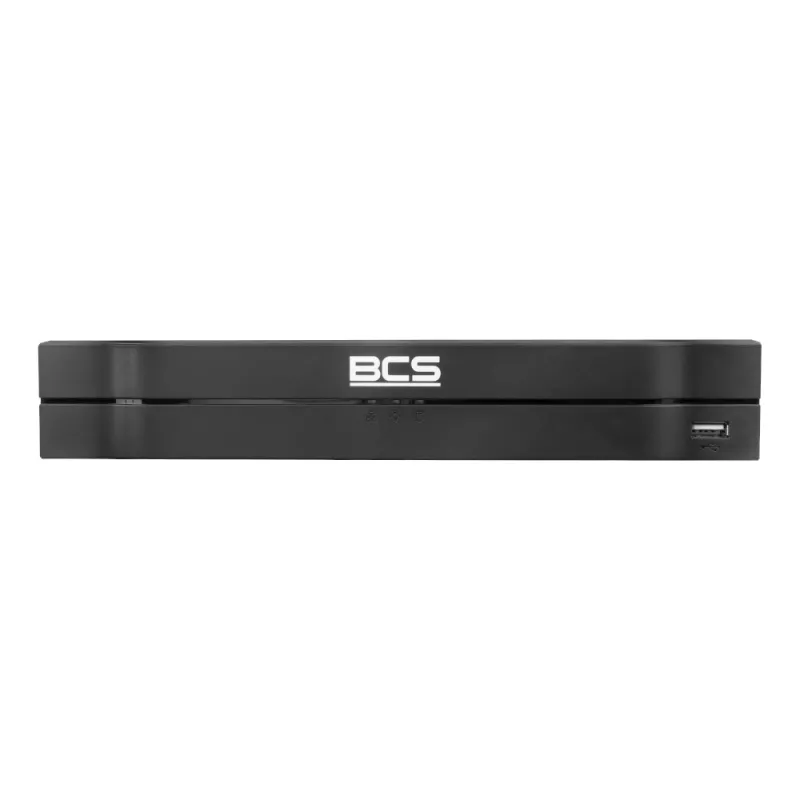

The BCS-L-XVR0401(7) is a 4-channel Analog HD recorder that supports HDCVI, AHD, TVI, and CVBS video formats. It features 4 BNC inputs with auto-detect and 2 additional IP channels (up to 6MP). The recorder uses H.265+/H.265/H.264+/H.264 compression for efficient storage. It includes 1 HDMI and 1 VGA output (simultaneous, max 1920x1080), 1 RCA audio input and output, and 1 SATA bay supporting up to 6TB HDD. Network connectivity is via 1 RJ-45 10/100 Mbps Ethernet port, with 2 USB 2.0 ports. Powered by DC 12V/1.5A, it runs on embedded Linux and supports mobile apps BCS Manager and DMSS. Smart features include motion detection, tripwire, and intrusion detection.

Advantages

This recorder offers versatile analog and IP camera support, advanced compression to save storage space, and reliable performance for small to medium surveillance systems. Its smart analytics enhance security monitoring.

Suitable for

• Small businesses
• Retail stores
• Home security systems
• Office surveillance

Key specifications

• Video Input: 4 BNC (HDCVI/AHD/TVI/CVBS) + 2 IP
• Compression: H.265+/H.265/H.264+/H.264
• Analog Recording Resolution: 1080N (1080x960) @ 25fps per channel
• Max IP Resolution: 6MP
• Video Output: 1x HDMI, 1x VGA (simultaneous, max 1080p)
• Audio: 1x RCA input, 1x RCA output, two-way audio
• HDD: 1x SATA, up to 6TB
• Network: 1x RJ-45 10/100 Mbps
• USB: 2x USB 2.0
• Power: DC 12V / 1.5A
• OS: Embedded Linux
• Mobile App: BCS Manager / DMSS
• Smart Features: Motion detection, IVS (Tripwire, Intrusion)

Recommendations

For optimal performance, use compatible BCS cameras and high-quality SATA HDDs. Ensure proper ventilation and stable power supply.
