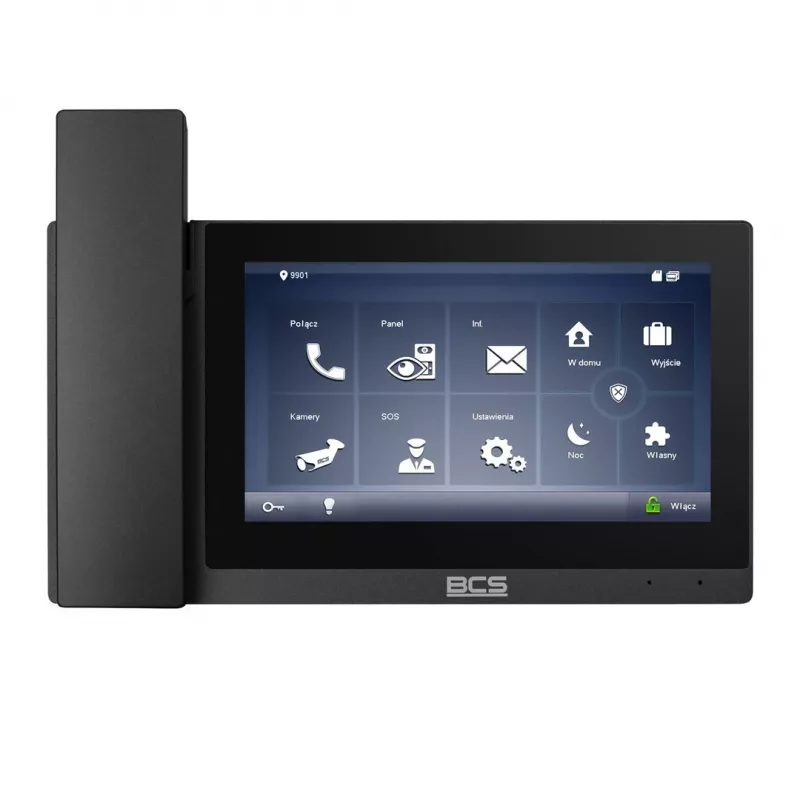

BCS-MON7500B-S 7" dotykový monitor, čierny

The BCS-MON7500B-S is a 7-inch TFT LCD touch screen monitor designed for video intercom and security applications. Featuring a capacitive touchscreen, embedded Linux OS, and PoE support, it offers reliable two-way audio and video communication. Ideal for door entry systems, this surface-mount device integrates seamlessly into access control setups.

Advantages

Capacitive touchscreen for intuitive control; PoE and DC 12V power options for flexible installation; built-in microphone and speaker for clear two-way audio; supports up to 32GB microSD card for local recording; compact 7-inch display with 1024x600 resolution.

Suitable for

• Video door intercom systems
• Access control and security monitoring
• Residential and commercial entry management

Key specifications

• Display: 7 inch TFT LCD, 1024x600, capacitive touch
• OS: Embedded Linux
• Network: 1x RJ45 10/100Mbps Ethernet, Wi-Fi 2.4GHz
• Power: DC 12V or PoE IEEE 802.3af
• Audio: G.711, built-in mic and speaker, two-way
• Video: H.264 compression
• Alarm: 6 inputs, 1 output, 1 relay for door release
• Storage: microSD slot up to 32GB
• Mounting: Surface mount
• Material: ABS plastic, black
• Operating temperature: -10°C to +55°C
• Power consumption: ≤6W (standby ≤2W)

Recommendations

For optimal performance, use with a compatible PoE switch or DC 12V power supply. Ensure proper surface mounting for stable operation.
