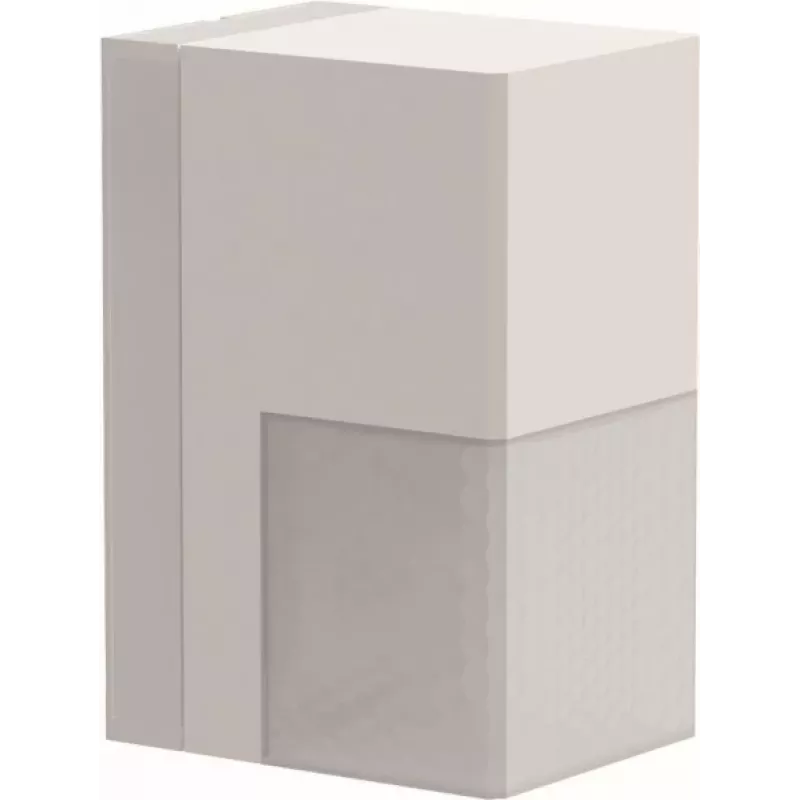

BEG Aleum Glow WB biely 180° PIR detektor pohybu, nástenná montáž, IP54, dosah 12 m

Unreliable outdoor lighting wastes energy and compromises security. The BEG Aleum Glow WB solves this with precise 180° passive infrared detection, automatically switching lights on only when needed. Its discreet white housing blends into any façade while the glow ring provides subtle orientation in the dark. Ideal for entrances, driveways, and building perimeters, it delivers dependable motion-activated control with adjustable sensitivity to avoid false triggers.

Who is it for

Homeowners, facility managers, and electricians seeking a robust, weatherproof motion sensor for outdoor wall mounting. It suits both residential and commercial applications where automatic lighting control enhances convenience, safety, and energy savings.

Main features

• 180° detection angle with up to 12 m tangential range for broad coverage.
• Passive infrared (PIR) technology ensures reliable motion detection.
• IP54-rated housing protects against dust and water splashes, suitable for outdoor use.
• Adjustable time delay (10 s – 30 min) and brightness threshold (5 – 2000 lux) for customised operation.
• High switching capacity: 2300 W for incandescent/halogen, 500 W for LED loads.
• Low standby consumption of approximately 0.5 W.
• UV-stabilised polycarbonate housing in white (RAL 9010) for durability and aesthetics.
• Glow ring feature provides a soft orientation light in darkness.

Specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 180°
• Detection range: max. 12 m (tangential)
• Mounting type: Wall mount (surface)
• Recommended mounting height: 2.5 m
• Colour: White (RAL 9010)
• International Protection (IP) code: IP54
• Operating voltage: 230 V AC ±10%, 50 Hz
• Time delay setting: 10 s – 30 min, pulse function
• Brightness threshold setting: 5 – 2000 lux
• Max. switching capacity (incandescent/halogen): 2300 W
• Max. switching capacity (LED): 500 W (typical)
• Power consumption (standby): approx. 0.5 W
• Ambient temperature range: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate

Tips

Mount the sensor at 2.5 m height for optimal coverage. Adjust the lux setting to prevent daytime activation, and set the time delay according to the area's traffic. For large LED loads, verify total wattage stays within the 500 W limit to avoid overloading the relay.
