BEG BRCK LUXOMAT PD2-M-1C-DE stropný detektor prítomnosti, 1-kanálový, biely

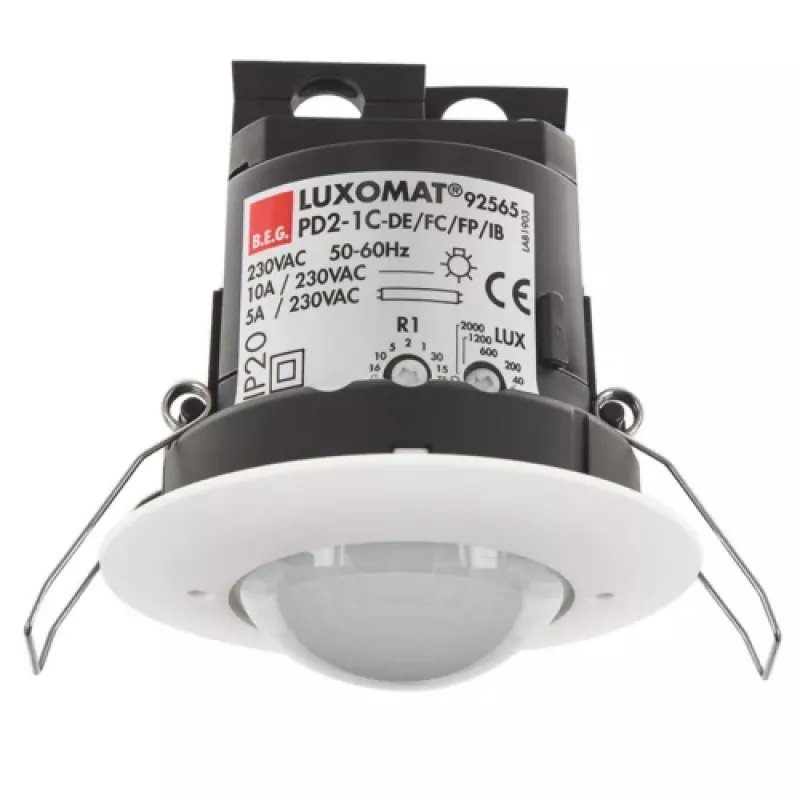

The BEG BRCK LUXOMAT PD2-M-1C-DE is a ceiling flush mount presence detector that delivers reliable, energy-efficient lighting control through advanced passive infrared (PIR) technology. With a 360° detection angle and a maximum coverage diameter of 8 metres at a 3-metre mounting height, it ensures precise motion sensing for a wide range of indoor applications. Its single potential-free relay output handles resistive loads up to 2300 W (10 A) and LED loads up to 300 W, making it suitable for both conventional and modern lighting systems. The adjustable time delay from 15 seconds to 30 minutes and brightness threshold from 10 to 2000 lux allow fine-tuning to specific room requirements, ensuring lights activate only when needed and switch off automatically after the set follow-up time.

Advantages

This presence detector offers a compact, flush-mounted design that integrates seamlessly into ceilings with a 68 mm cut-out and only 30 mm installation depth. Its UV-stabilised polycarbonate housing ensures long-term durability, while the IP20 rating makes it ideal for dry indoor environments. The device operates on a standard 230 V AC supply and consumes only 0.5 W in standby, contributing to low overall energy usage. The potential-free relay output provides flexibility for controlling various load types, and the wide adjustment ranges for time and light level enable customised automation for offices, corridors, restrooms, and storage areas.

Suitable for

• Office lighting automation
• Corridor and stairwell illumination
• Restroom and changing room control
• Storage and utility rooms
• Classrooms and meeting spaces

Key specifications

• Detection technology: Passive infrared (PIR)
• Detection angle: 360°
• Detection area at 3 m height: max. Ø 8 m
• Mounting type: Ceiling flush mount
• Recommended mounting height: 2–5 m
• Output: 1 × relay (potential-free)
• Max. switching power resistive load: 2300 W / 10 A
• Max. switching power LED load: 300 W
• Supply voltage: 230 V AC ±10 %, 50/60 Hz
• Power consumption: approx. 0.5 W
• Time delay: 15 s – 30 min (adjustable)
• Brightness threshold: 10–2000 lux (adjustable)
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Installation cut-out diameter: Ø 68 mm
• Installation depth: 30 mm
• Colour: White

Recommendations

For optimal performance, install the PD2-M-1C-DE at a height between 2 and 5 metres in areas with clear line-of-sight to the detection zone. Adjust the brightness threshold to prevent activation during sufficient daylight, and set the time delay according to the typical occupancy duration of the space. Ensure the relay load does not exceed the specified limits, especially when controlling LED luminaires, to avoid premature contact wear.
