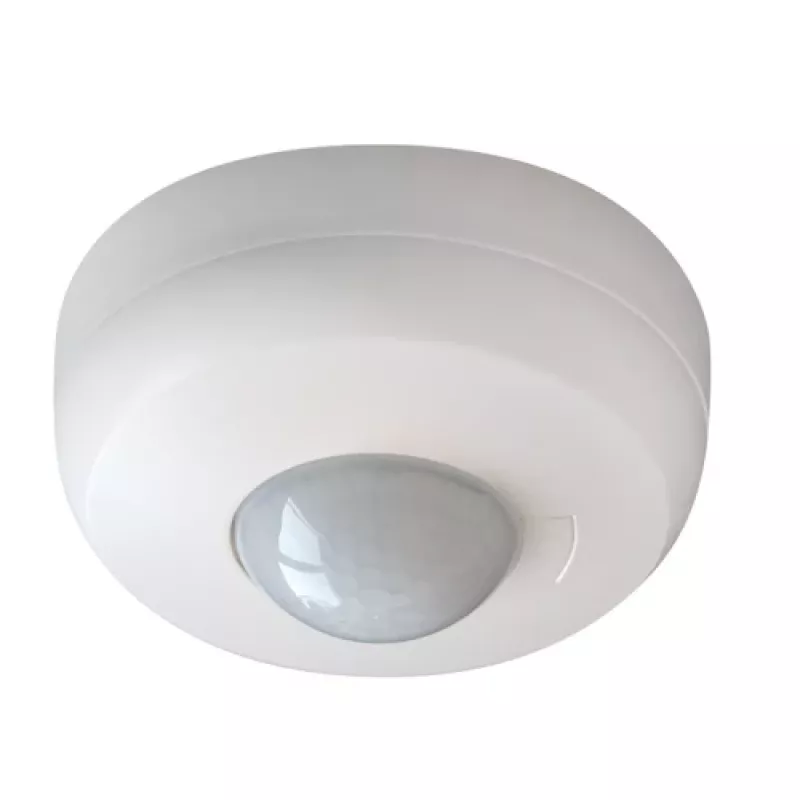

BEG BRCK LUXOMAT PD3 1C AP Luxomat 360+ detektor pohybu, stropná montáž, biela

Unreliable lighting control wastes energy and creates inconvenience. The BEG BRCK LUXOMAT PD3 1C AP Luxomat 360+ motion detector solves this by automatically switching lights on when presence is detected and off after a set delay. Its 360° coverage ensures no blind spots, making it ideal for hallways, stairwells, offices, and restrooms.

Who is it for

Facility managers, electricians, and homeowners seeking a robust, energy-saving presence detector for ceiling installation. Perfect for commercial and residential spaces requiring automatic lighting control with high sensitivity and adjustable settings.

Main features

• Full 360° detection angle for complete room coverage
• Passive infrared (PIR) sensor with a tangential range of up to 24 m diameter (452 m²)
• Presence detection range of 4 m diameter for precise desk-level monitoring
• Adjustable time delay from 15 seconds to 30 minutes, plus pulse mode for staircase timers
• Brightness threshold adjustable from 10 to 2000 lux, enabling day/night operation
• High switching capacity: 2300 W resistive or 600 W LED load
• Potential-free relay output (1 NO contact) for flexible integration
• IP54 protection against dust and water splashes, suitable for indoor and sheltered outdoor use
• UV-stabilised polycarbonate housing for long-term durability
• Low standby consumption under 0.5 W

Specifications

• Model: PD3 1C AP Luxomat 360+
• MPN: 92190
• EAN: 4007529921904
• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Mounting type: Ceiling surface-mounted (AP)
• Colour: White
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity (resistive): 2300 W / 10 A
• Switching capacity (LED): 600 W
• Detection range (tangential): Ø 24 m (452 m²)
• Detection range (presence): Ø 4 m (12.5 m²)
• Recommended installation height: 2.5 m (up to 5 m)
• Time setting: 15 sec – 30 min, pulse
• Brightness setting: 10 – 2000 lux
• Protection class: IP54
• Operating temperature: -25 °C to +50 °C
• Standby power consumption: < 0.5 W
• Output: 1x NO contact, potential-free relay
• Housing material: UV-stabilised polycarbonate

Tips

For optimal performance, install at a height of 2.5 m in the centre of the room. Adjust the brightness threshold to prevent activation during daylight if not needed. Use the pulse mode when connecting to staircase lighting timers. Ensure the detector is not obstructed by furniture or partitions for full 360° coverage.
