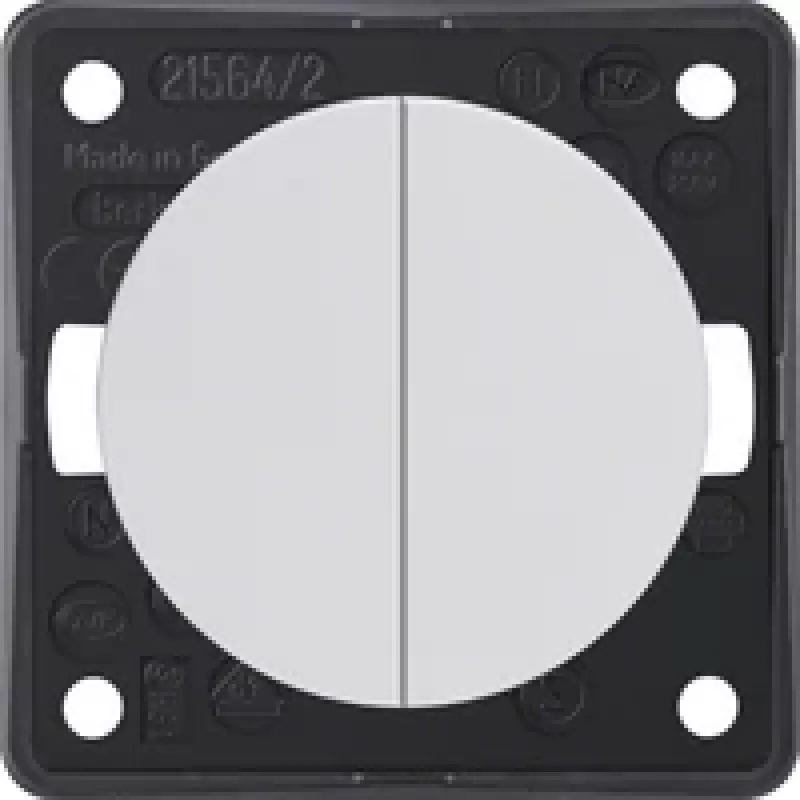

Berker kolískový spínač 936552509 séria polárna biely lesklý

The Berker 936552509 is a high-quality series rocker switch designed for flush-mounted installation. Featuring two independent 1-way switches in a single unit, it provides reliable control for lighting or other electrical circuits. The polar white glossy finish offers a clean, modern look that complements various interior styles.

Advantages

This rocker switch combines functionality with aesthetic appeal. Its glossy surface is easy to clean and resistant to fingerprints. The screw terminals ensure secure and straightforward wiring, while the thermoplastic material guarantees durability and halogen-free safety. Compatible with multiple Berker design lines, it offers flexibility for both new installations and retrofits.

Suitable for

• Residential and commercial lighting control
• Two separate circuits requiring independent switching
• Flush-mounted installations in standard wall boxes
• Integration with Berker S.1, B.3, B.7, K.1, K.5, Q.1, Q.3, R.1, R.3, Arsys, B.IQ, Integro, and W.1 design lines

Key specifications

• Switch Type: Rocker Switch
• Switching Function: Series Switch (two independent 1-way switches)
• Number of Rockers: 2
• Color: Polar White
• Finish: Glossy
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Connection Type: Screw Terminals
• Mounting Type: Flush-mounted
• IP Protection Class: IP20
• Material: Thermoplastic
• Halogen-free: Yes
• Terminal Capacity: 1.5 - 2.5 mm² (rigid conductors)
• Operating Temperature: -5 to +40 °C
• Installation Depth: Approx. 28 mm
• Number of Modules: 1

Recommendations

For optimal performance, use with compatible Berker frames and ensure proper wiring according to local regulations. This switch is not illuminated but can be combined with a separate indicator lamp if needed.
