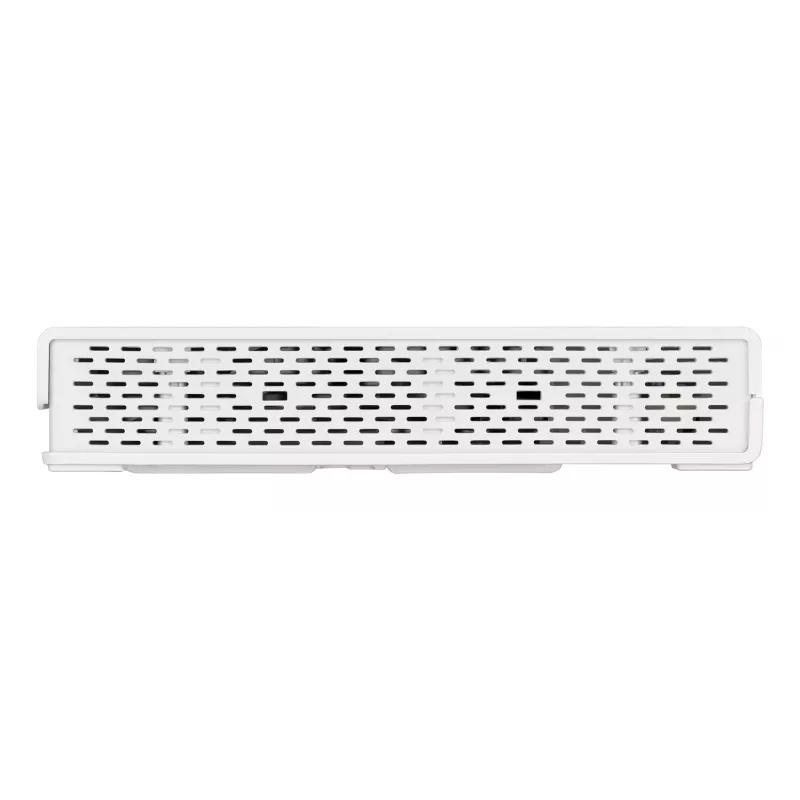

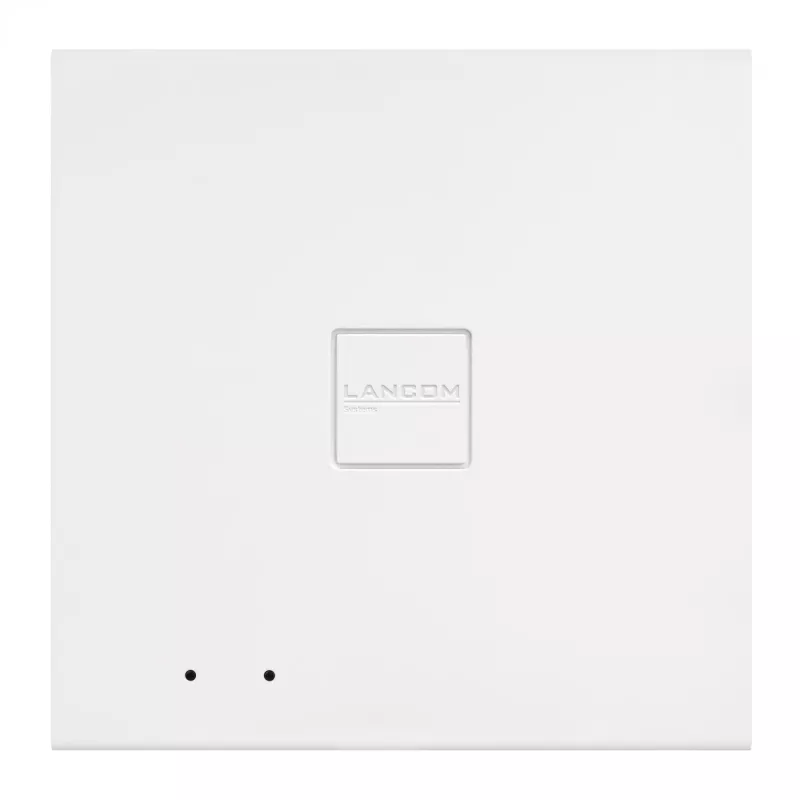

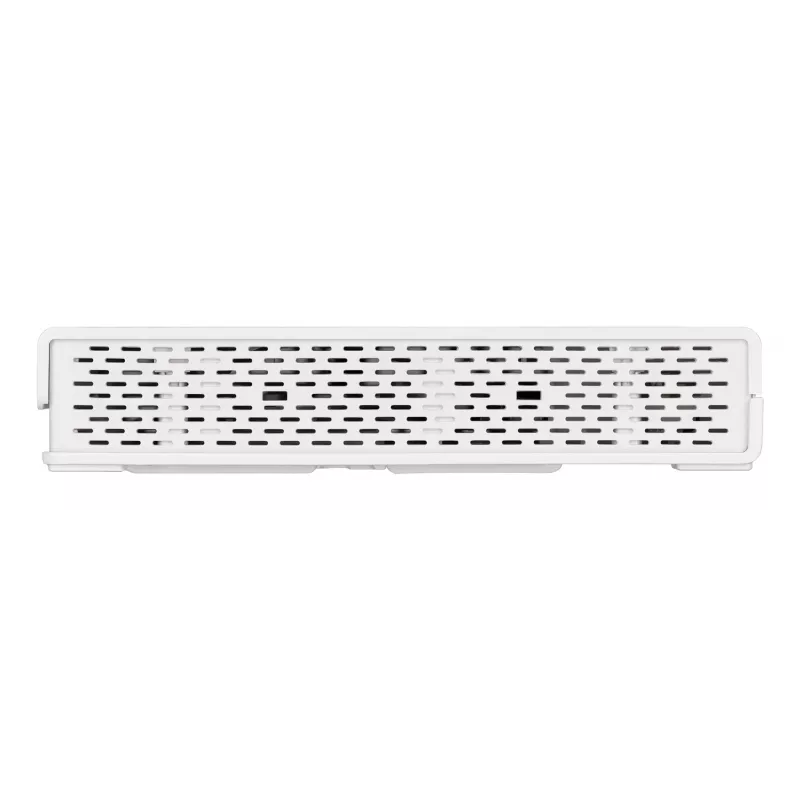

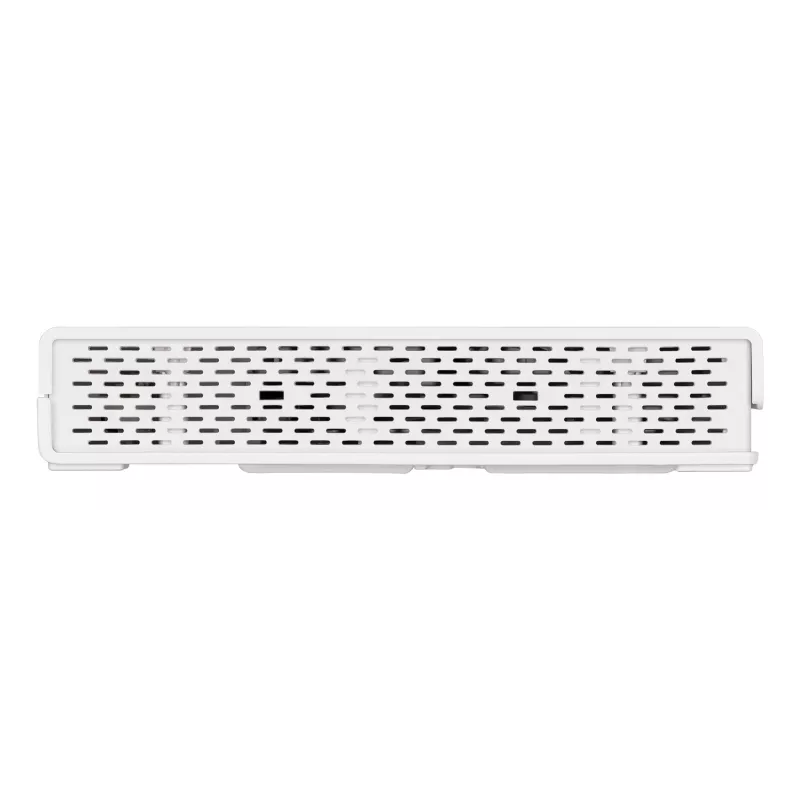

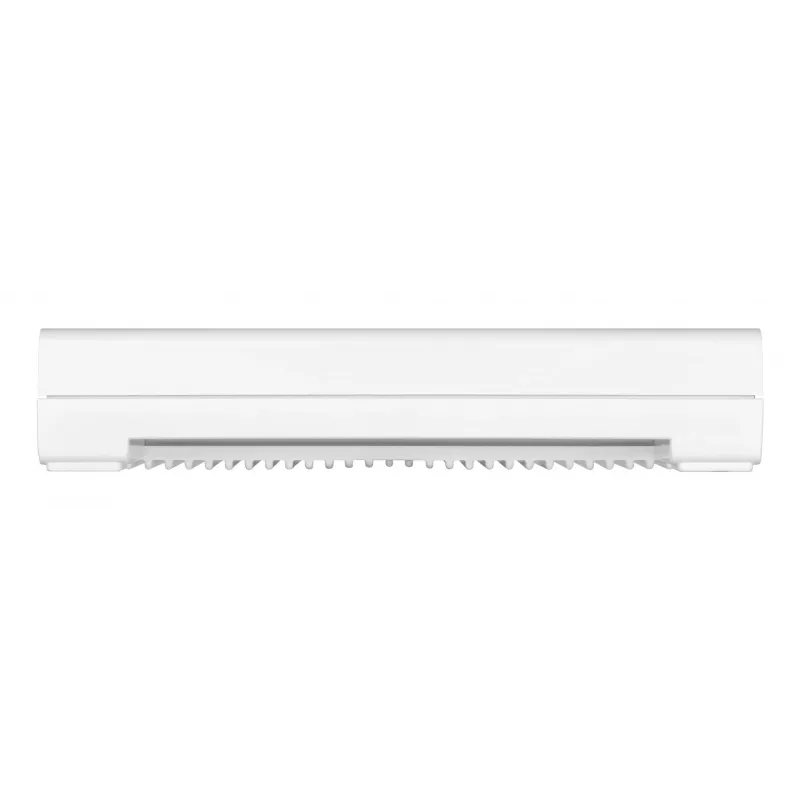

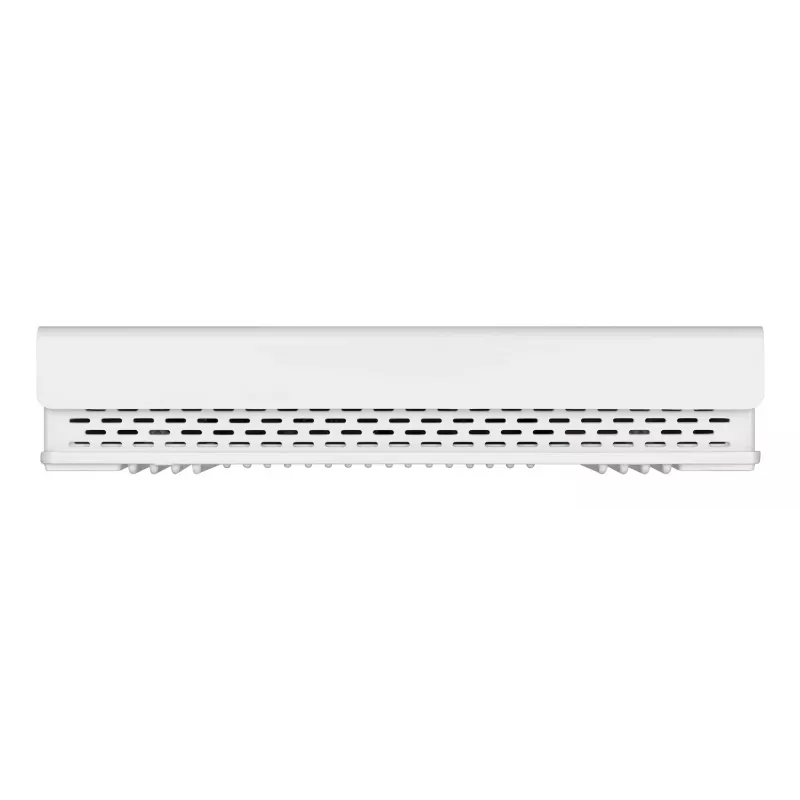

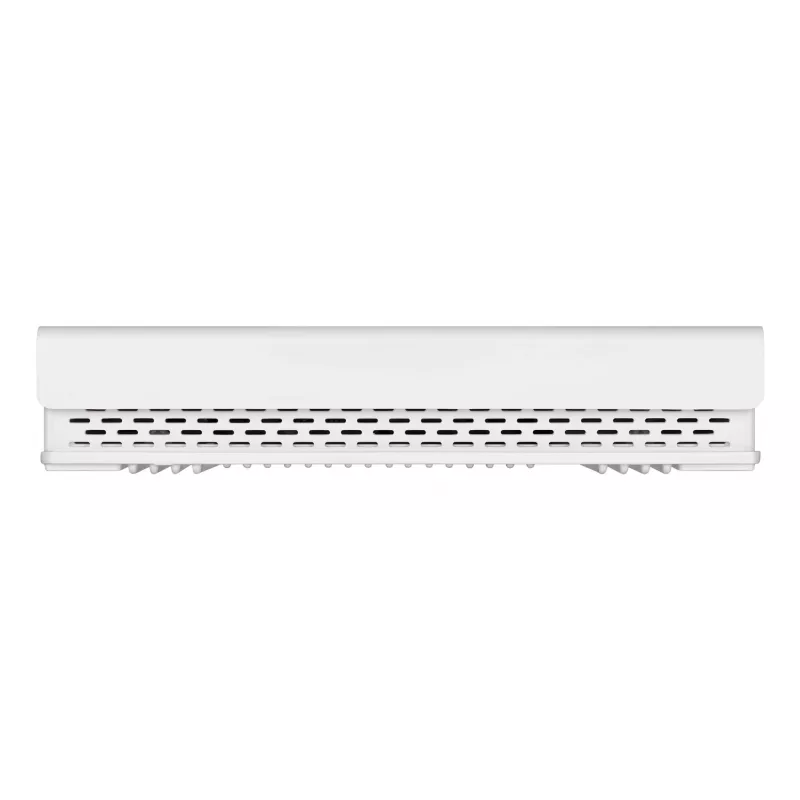

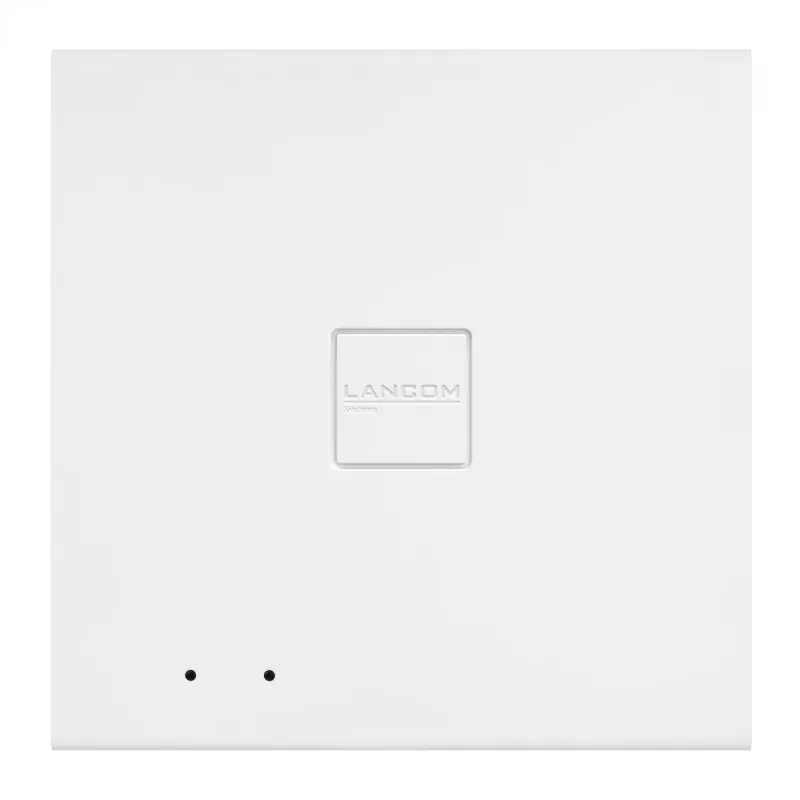

Bezdrôtový access point LANCOM LX-6400 (WW) 2,4 GHz 5 GHz

The LANCOM LX-6400 is a dual-band Wi‑Fi 6 access point designed for demanding public and enterprise environments. It delivers combined data rates up to 3,550 Mbps across the 2.4 GHz and 5 GHz bands, supports MU‑MIMO and OFDMA for improved multi-client performance, and includes modern security features such as WPA3 and IEEE 802.1X. The unit can be powered via PoE (IEEE 802.3at) or an included external power supply and is manageable through the LANCOM Management Cloud. Its white housing and compact design suit offices, schools, retail spaces and event locations.

Advantages

The LANCOM LX-6400 provides high throughput per client and low latency even at high device density thanks to Wi‑Fi 6 technologies like OFDMA, 4x4 MU‑MIMO and 160 MHz channel support. Target Wake Time (TWT) reduces client power consumption and extends battery life for mobile devices. Integrated enterprise security (WPA3, IEEE 802.1X) and support for cloud-based centralized management simplify secure deployment and operation. Flexible powering via PoE or the supplied adapter enables varied installation scenarios.

Suitable for

• Offices and corporate networks
• Schools, universities and campuses
• Retail stores and shopping centres
• Stadiums and event venues

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6), dual concurrent 2.4 GHz + 5 GHz
• Maximum aggregated data rate: up to 3,550 Mbps (2,400 Mbps @5 GHz + 1,150 Mbps @2.4 GHz)
• Radio streams / MIMO: 4x4 MU‑MIMO (downlink and uplink)
• Channel widths: 20 / 40 / 80 MHz (4 streams) and 160 MHz (2 streams)
• OFDMA and Target Wake Time (TWT) support
• Security: WPA3, WPA2, AES‑CCMP, IEEE 802.1X
• Ethernet: 2 × RJ‑45, up to 2.5 Gbps supported
• Power: PoE (IEEE 802.3at) or external power supply (EU/UK/US/AU adapters)
• Antennas: 8 internal antennas
• Colour: White

How to use

Install the LANCOM LX-6400 at a central location with good line-of-sight to client devices and connect it to your network via one of the RJ‑45 ports. For simplified deployment, power the unit with PoE (IEEE 802.3at) from a compatible switch; alternatively connect the supplied external power adapter. Add the access point to your LANCOM Management Cloud account for centralized provisioning, monitoring and firmware updates. Configure SSIDs, security settings (WPA3 or WPA2), and band steering as required for your environment.

Recommendations

Place the access point at ceiling height or high on a wall to improve coverage, enable band steering to balance clients across 2.4 GHz and 5 GHz, and use 160 MHz channels only where client devices and local RF conditions support it to avoid co‑channel interference.
