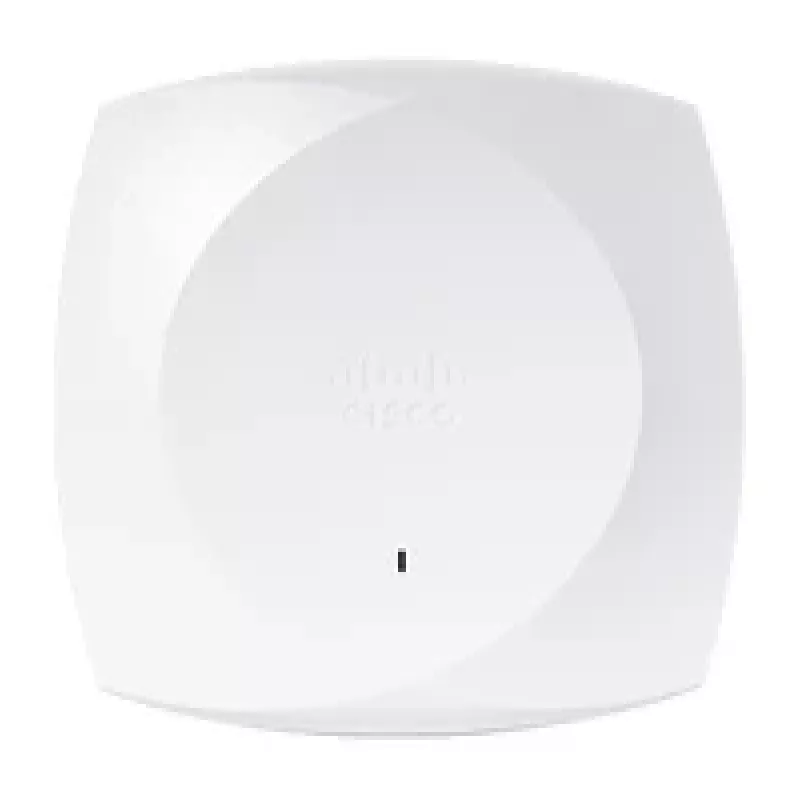

Bezdrôtový prístupový bod Cisco 9176D1-CFG 2,4 GHz 5 GHz 6 GHz

The Cisco 9176 Series CW9176D1-CFG is a Wi‑Fi 7 wireless access point that operates in the 2.4 GHz, 5 GHz and 6 GHz bands to deliver high throughput and increased capacity for dense and mission‑critical environments. The CW9176D1 is the internal directional‑antenna model designed for spaces with high ceilings and large open areas (auditoriums, warehouses), eliminating the need for external antennas. It supports advanced security standards and multi‑gigabit Ethernet with Power over Ethernet (PoE) for flexible deployment.

Advantages

The Cisco 9176D1 provides three 4x4 radios plus IoT radios to maximize concurrent client capacity and performance on Wi‑Fi 7 (IEEE 802.11be) networks. Built for both on‑premises and cloud management, it can be moved between Catalyst 9800/WLC and Meraki cloud without additional hardware. The internal directional antenna simplifies installation in high‑ceiling environments while multi‑gigabit Ethernet (100/1000/2.5G/5G/10G) and PoE support enable high throughput and flexible cabling options.

Suitable for

• Large open spaces with high ceilings (auditoriums, warehouses)
• High‑density enterprise environments (campuses, stadiums)
• Real‑time and immersive applications (video streaming, AR/VR)
• Deployments requiring centralized cloud or on‑premises management

Key specifications

• Model: CW9176D1‑CFG
• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz
• Maximum data transfer rate: 18000 Mbit/s
• Radios: three 4x4 radios plus IoT radios
• Networking standards: IEEE 802.11n, 802.11ac, 802.11ax, 802.11be
• Ethernet LAN (RJ‑45) ports: 1 (100 / 1000 / 2.5G / 5G / 10G supported)
• Antennas: 4 (internal directional antenna)
• Security: WPA‑PSK, WPA2‑Personal, WPA2‑Enterprise, WPA3‑Personal, WPA3‑Enterprise
• Product colour: White
• Weight: 1.53 kg

How to use

Mount the CW9176D1 in the targeted coverage area following site‑specific mounting guidance for high‑ceiling locations. Connect a compatible PoE switch or midspan to the RJ‑45 Ethernet port to provide network connectivity and power. Configure the access point using either Cisco Catalyst 9800 controller / Catalyst Center for on‑premises management or onboard it into the Cisco Meraki cloud dashboard for centralized cloud management. Apply SSIDs, security policies and RF profiles appropriate to your environment.

Recommendations

Place the directional model where external antennas would otherwise be required to achieve focused coverage. For best performance in high‑density scenarios, combine proper RF planning with the chosen management platform (Meraki or Catalyst) and ensure multi‑gigabit uplink and PoE budget meet anticipated client throughput.
