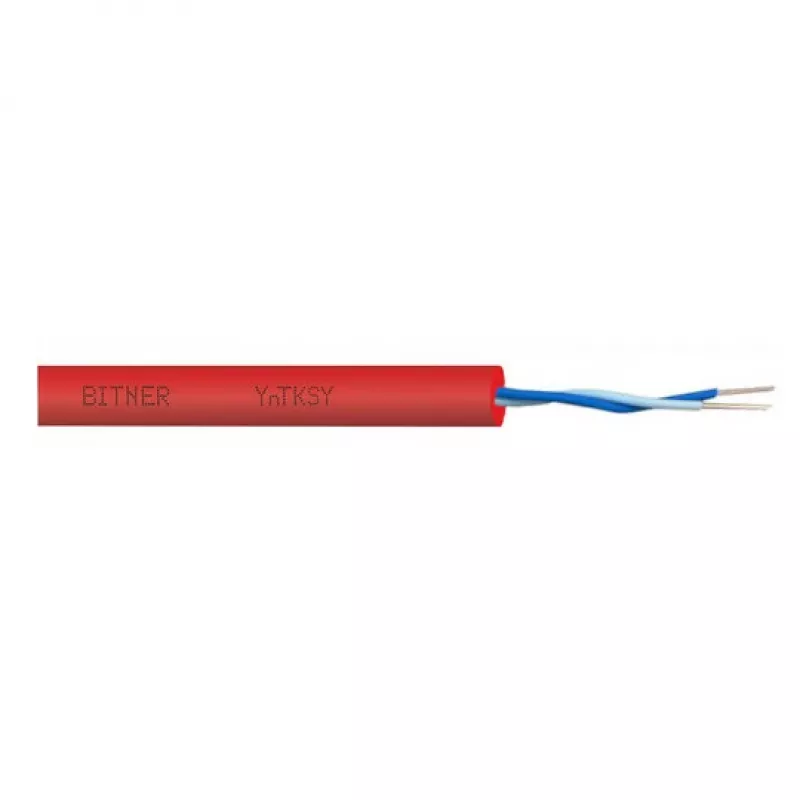

BITNER YnTKSY kábel požiarnej signalizácie 1x2x0,8 mm - 100 m červený

The BITNER YnTKSY Fire Alarm Signal Cable is a high-quality, screened twisted pair cable designed for reliable signal transmission in fire alarm systems. With a solid bare copper conductor of 0.8 mm diameter and PVC insulation and sheath, this cable ensures durability and consistent performance. The red sheath provides easy identification, while the static screen with tinned copper drain wire offers protection against electromagnetic interference. Suitable for fixed installations, it complies with PN-EN 50575 and other relevant standards.

Advantages

This cable features a robust construction with solid bare copper conductors for excellent conductivity. The twisted pair configuration reduces crosstalk, and the overall screen with drain wire ensures signal integrity in noisy environments. Flame retardant according to IEC 60332-1-2, it enhances safety in building installations. The 100-meter length allows for extended runs without joints.

Suitable for

• Fire alarm systems
• Security and safety signal transmission
• Industrial control and monitoring applications
• Building management systems

Key specifications

• Cable type: YnTKSY fire alarm signal cable
• Number of cores: 2 (1 pair)
• Conductor diameter: 0.8 mm
• Conductor material: solid bare copper
• Insulation: PVC
• Sheath: PVC, red
• Screening: static screen with tinned copper drain wire
• Nominal voltage: 300 V
• Test voltage: 800 V
• Operating temperature (fixed): -30°C to +70°C
• Operating temperature (flexible): -5°C to +50°C
• Minimum bending radius (fixed): 10 x cable diameter
• Flame retardancy: IEC 60332-1-2
• Length: 100 m
• Outer diameter: 4.8 mm
• Max conductor resistance: 36.7 Ohm/km at 20°C
• Max capacitance: 120 nF/km at 800 Hz

Recommendations

For optimal performance, ensure proper installation with minimum bending radius respected. Use appropriate connectors and avoid sharp bends. This cable is intended for fixed installations; for flexible applications, observe the reduced temperature range.
