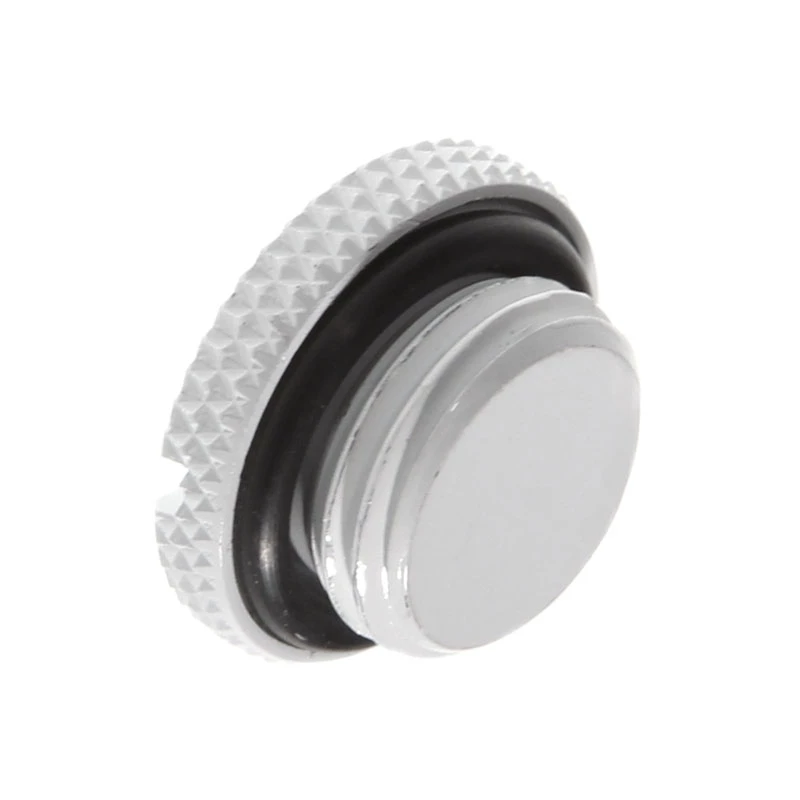

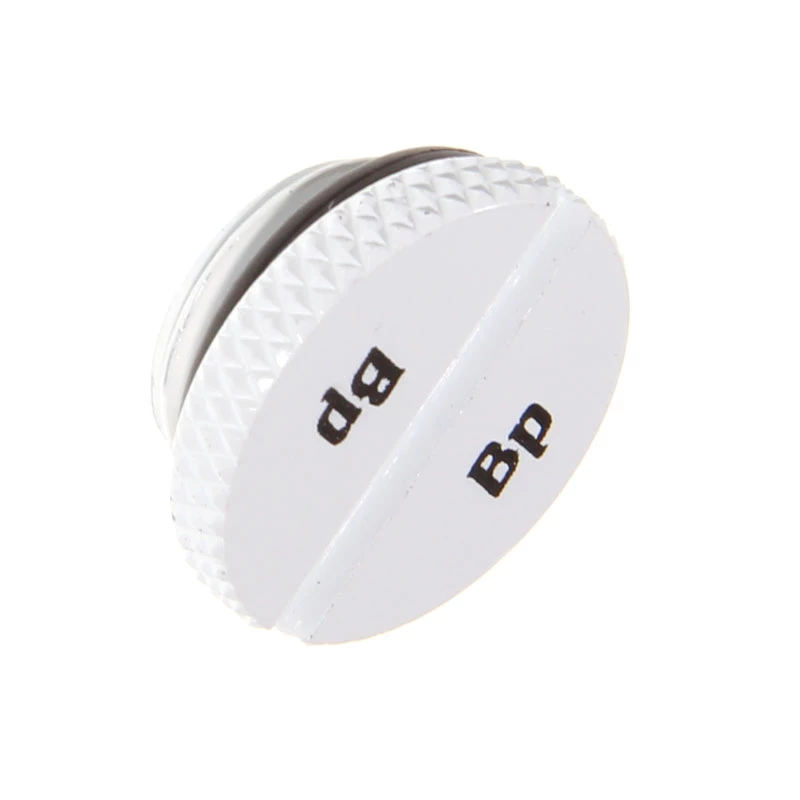

BitsPower diel počítačového chladiaceho systému BP-DWWP-C09 — mosadzný biely konektor/príslušenstvo

BitsPower BP-DWWP-C09 is a brass fitting with a white e-plated finish, designed for PC hi-end water cooling systems. Intended as a low-profile accessory for liquid cooling loops, this durable connector offers corrosion resistance and a concealed O-ring design to secure leak-free joints between tubing, radiators, pumps and blocks without adding significant visual bulk.

Advantages

The fitting is manufactured from high-quality brass with a white e-plated surface that improves durability and resists corrosion in water-cooling environments. Its low-profile form factor and hiding O-ring layout reduce exposed sealing elements and allow tighter component spacing. Compliance with RoHS standards ensures material safety for PC assembly. A G1/4" threaded connection with a 5 mm thread length provides broad compatibility with common water-cooling ports.

Suitable for

• Custom PC liquid cooling loop assembly
• Replacement of worn or damaged fittings in water-cooling systems
• Compact builds where low-profile connectors are required
• Matching white-themed cooling components and aesthetic-focused builds

Key specifications

• Material: brass base construction
• Finish: white e-plated coating for enhanced resistance
• Thread standard: G1/4"
• Thread length: 5 mm
• Profile: low-profile design with concealed O-ring
• Compliance: RoHS

How to use

Ensure the system is powered down and drained of coolant before installing the fitting. Thread the connector into the corresponding G1/4" port by hand to start, then tighten gently with an appropriate tool until seated; avoid over-tightening to prevent damage to threads or seals. Verify the O-ring is properly seated within its recess to maintain a reliable seal. After assembly, refill the loop, perform a pressure or leak test, and inspect the connection for leaks during an initial run-in period.

Recommendations

Use compatible G1/4" ports and avoid mixing incompatible metals in direct contact to reduce galvanic corrosion. Periodically inspect fittings and O-rings during maintenance intervals, and replace the O-ring if signs of wear or deformation appear.
