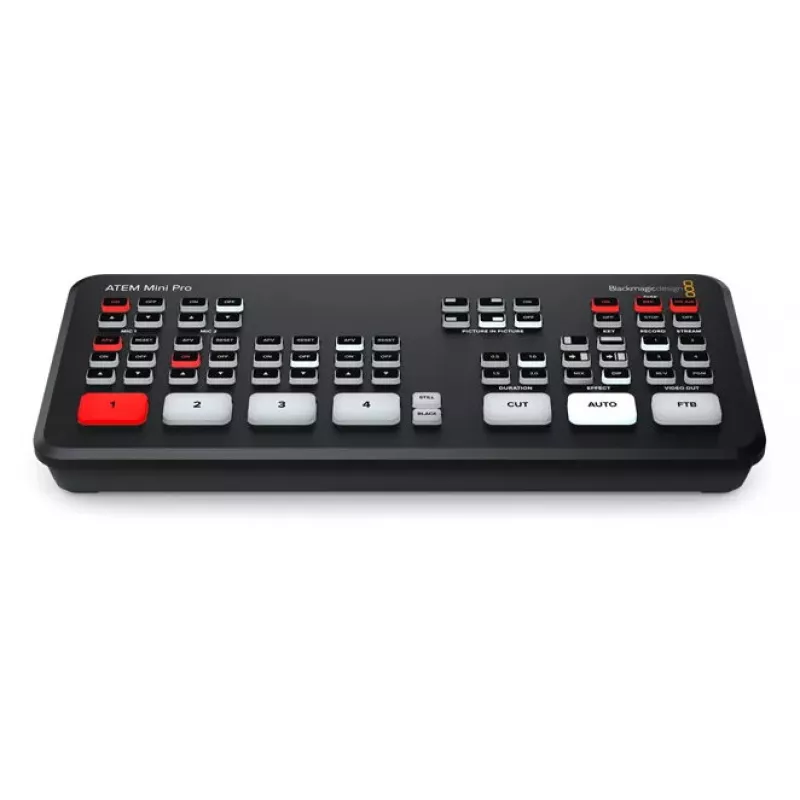

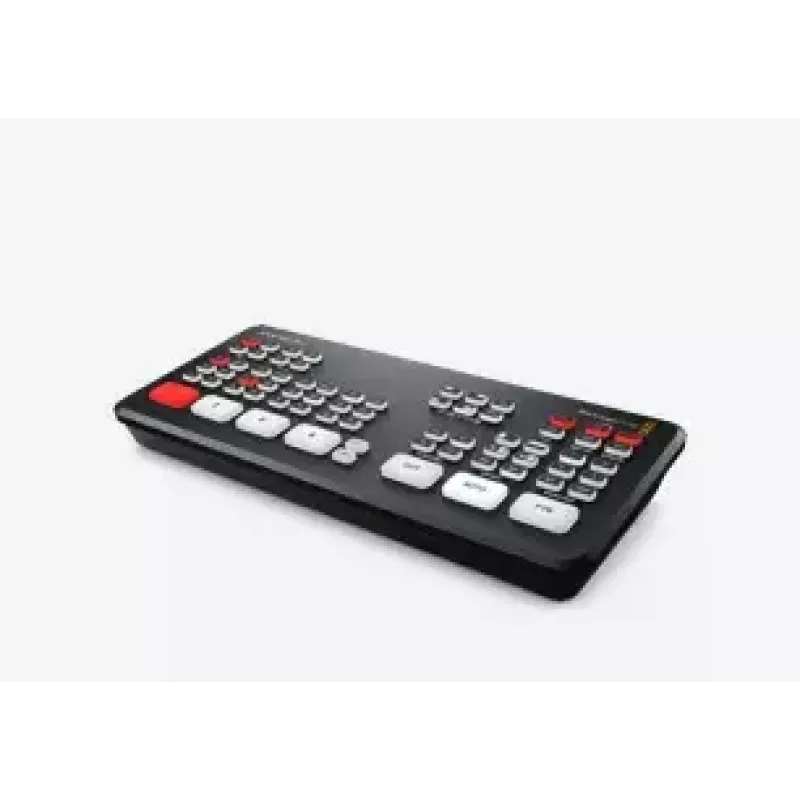

Blackmagic Design ATEM Mini PRO Full HD video prepínač 1920x1080

Blackmagic Design ATEM Mini PRO is a compact Full HD video switcher designed for live streaming and multi-camera productions. It supports up to 1920x1080 resolution and offers four standards-converted HDMI inputs, USB webcam output, HDMI program output and Ethernet for direct streaming. The switcher includes an integrated Fairlight audio mixer with EQ and dynamics, a DVE for picture-in-picture, transition effects, green screen chroma key and a 20-slot media pool for still titles. The unit also provides direct recording to USB flash disks in H.264 and a multiview with camera sources, media, preview, program and status indicators for recording, streaming and audio.

Advantages

The ATEM Mini PRO combines multi-input switching, hardware streaming and on-the-fly recording in a compact housing, reducing the need for additional capture devices or separate recorders. Built-in Fairlight audio processing and a DVE for picture-in-picture simplify live production workflows while the Ethernet streaming and H.264 USB recording enable direct distribution to platforms like YouTube Live without extra encoding hardware.

Suitable for

• Live streaming to YouTube, Facebook and other platforms
• Small studio and event multi-camera switching
• Online teaching, webinars and remote presentations
• Podcast and interview production with picture-in-picture

Key specifications

• Resolution: Full HD up to 1920 x 1080
• Inputs: 4 × HDMI (standards converted)
• Outputs: USB webcam out, HDMI program out, Ethernet (10/100/1000 Mbit/s)
• Audio: Fairlight mixer with EQ and dynamics
• Media pool: 20 stills for titles
• Recording: Direct to USB flash disks in H.264
• Dimensions (W×D×H): 237.5 × 103.5 × 35 mm
• Power: AC powered
• MPN/EAN: BM-SWATEMMINIBPR / 9338716006797

How to use

Connect up to four HDMI cameras or sources to the HDMI inputs, connect an HDMI monitor to the program output and plug a USB drive for recording into the USB port. Connect the Ethernet port to the network for direct streaming and set streaming details in the ATEM Software Control or on-device if available. Use the hardware controls or ATEM Software Control to switch sources, apply transitions, enable chroma key for green screen and set up picture-in-picture with the DVE. Adjust audio levels and apply EQ or dynamics in the Fairlight mixer before recording or streaming.

Recommendations

For stable live streams, use a wired Ethernet connection at 10/100/1000 Mbit/s and reliable USB 3.0 flash disks formatted to a compatible file system. Prepare titles and stills in advance in the 20-slot media pool and test audio levels and chroma key settings before going live.
