Rozbočovač videa DeLOCK 87737 DisplayPort 3x DisplayPort

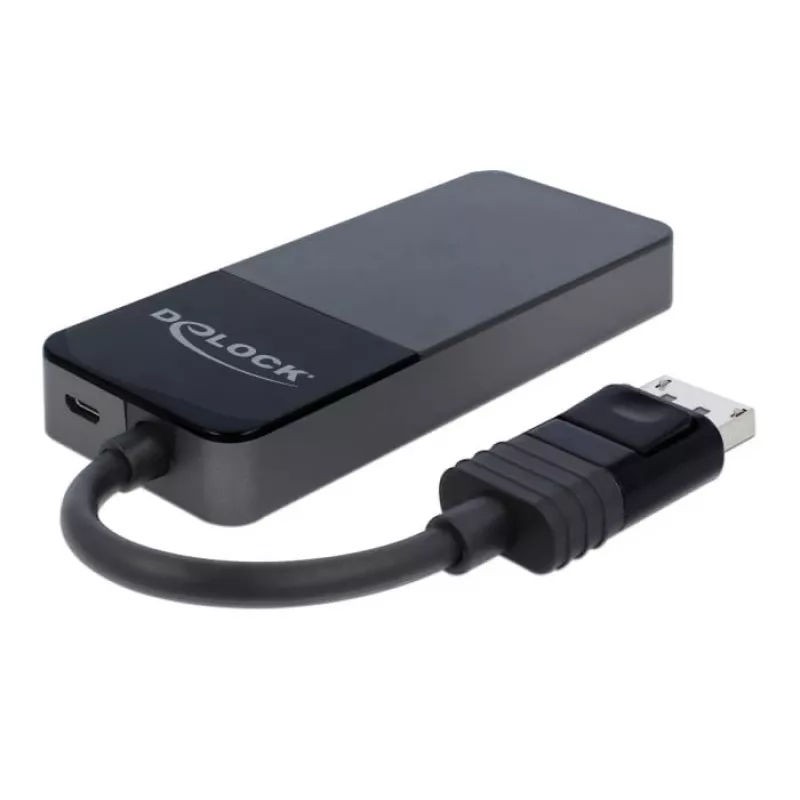

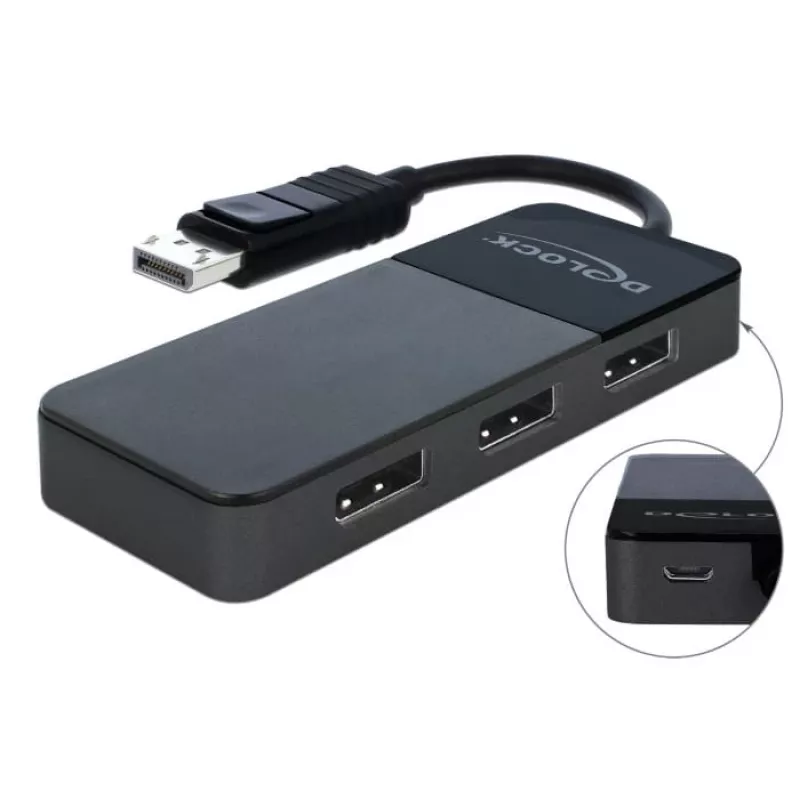

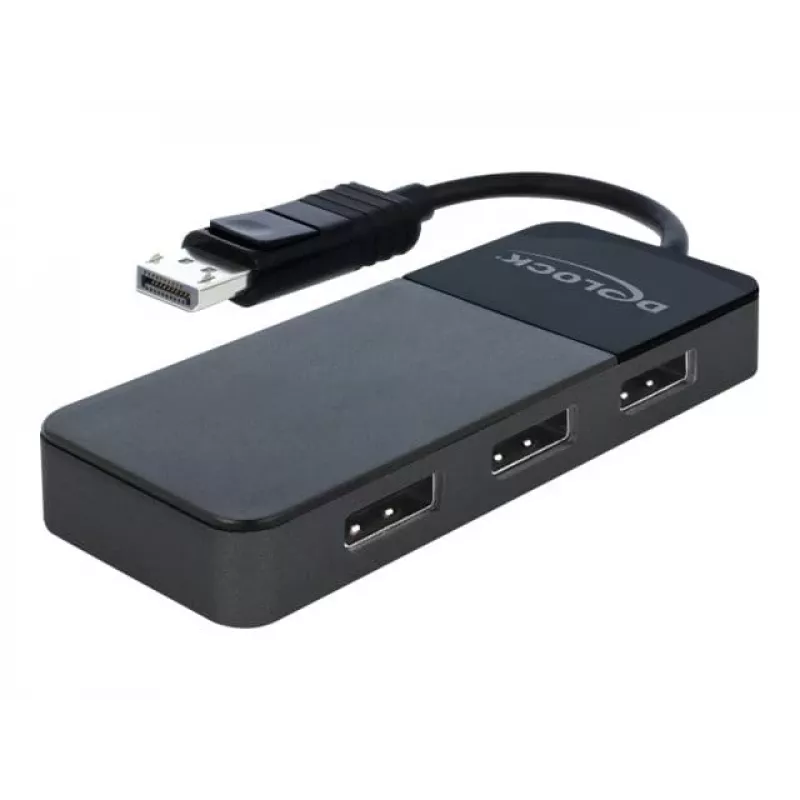

This Delock splitter receives a DisplayPort signal from a PC or laptop and distributes it to three connected displays, allowing a single DisplayPort output to drive up to three monitors. The device functions as an MST hub and supports extended desktop configurations for flexible multi-monitor setups. Outputs are dual-mode (DP++), enabling connection of HDMI or DVI displays using appropriate passive adapters. With DisplayPort 1.4 bandwidth the splitter supports three monitors at 4K resolution (3840 x 2160).

Advantages

The splitter enables a single DisplayPort connection to operate three independent displays in extended desktop mode. DP++ outputs provide broad compatibility with HDMI and DVI monitors when used with suitable adapters. Support for DisplayPort 1.4 bandwidth allows high-resolution displays up to 3840 x 2160 on each output.

Key specifications

• Interface: DisplayPort input, 3 × DisplayPort outputs (MST hub)
• MST: supports extended desktop configuration
• Dual mode: DP++ outputs for HDMI/DVI via adapters
• Resolution support: up to 3840 x 2160 (4K) per monitor
• DisplayPort version: 1.4 bandwidth

How to use

Connect the splitter to the DisplayPort output of your PC or laptop, then attach up to three DisplayPort monitors to the outputs. If you need to connect HDMI or DVI displays, use compatible passive DP++ adapters on the outputs. Configure the displays in your operating system to use extended desktop mode or arrange them as desired. Ensure graphics card and cable capabilities match the required resolution and bandwidth for optimal performance.

Recommendations

Use high-quality DisplayPort cables and, if applicable, passive DP++ adapters rated for 4K to ensure stable signals. Verify that the source GPU supports MST and has sufficient bandwidth for driving three 4K displays.
