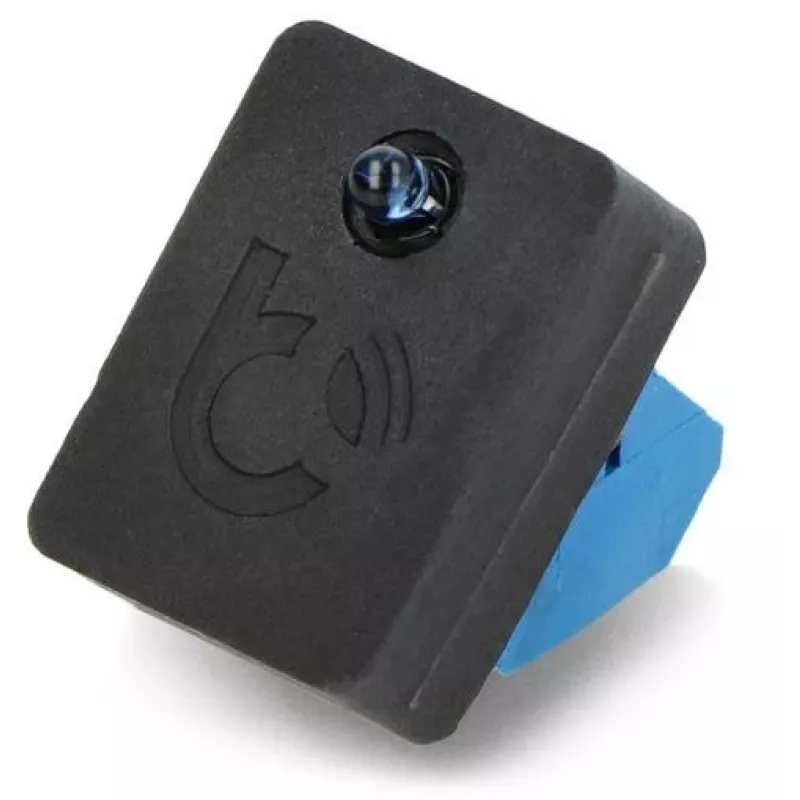

BLEBOX Twilight Compact súmrakový senzor Wi-Fi smart home automatizácia

The BLEBOX Twilight Compact is a smart dusk sensor designed for automatic lighting and blind control in modern smart homes. It measures ambient light levels with high precision and triggers actions based on user-defined thresholds, schedules, or scenes. The sensor communicates via Wi-Fi (2.4 GHz) and integrates seamlessly with other BLEBOX modules such as switchBox and shutterBox. Configuration is easy through the wBox app (iOS/Android) or a web browser. The compact surface-mounted design (34 x 29 x 15 mm) fits discreetly anywhere, and its ABS plastic housing with IP20 rating ensures durability indoors. Power is supplied via 12-24V DC, with consumption below 1W. The sensor supports MQTT and REST API for advanced automation, and security is ensured with WPA/WPA2 encryption.

Advantages

High precision digital light sensor with 0-65535 Lux range; Wi-Fi connectivity for easy integration; Supports MQTT and REST API for advanced users; Compact and discreet design; Low power consumption; Works with wBox app for remote control and automation.

Suitable for

• Automatic lighting control based on ambient light
• Blind and shutter automation
• Smart home energy saving
• Integration with BLEBOX ecosystem

Key specifications

• Connectivity: Wi-Fi 2.4 GHz
• Power Supply: 12-24V DC
• Light Measurement Range: 0-65535 Lux
• Communication Protocol: BLEBOX proprietary, MQTT, REST API
• App Compatibility: wBox (iOS, Android)
• Operating Temperature: -20°C to 50°C
• Dimensions: 34 x 29 x 15 mm
• Mounting: Surface-mounted
• Enclosure Rating: IP20
• Power Consumption: < 1W
• Housing Material: ABS Plastic
• Security: WPA/WPA2
• Processor: ESP32

Recommendations

For optimal performance, mount the sensor in a location that receives representative ambient light, avoiding direct sunlight or artificial light sources. Use the wBox app to set thresholds and schedules. Compatible with BLEBOX switchBox and shutterBox for complete automation.
