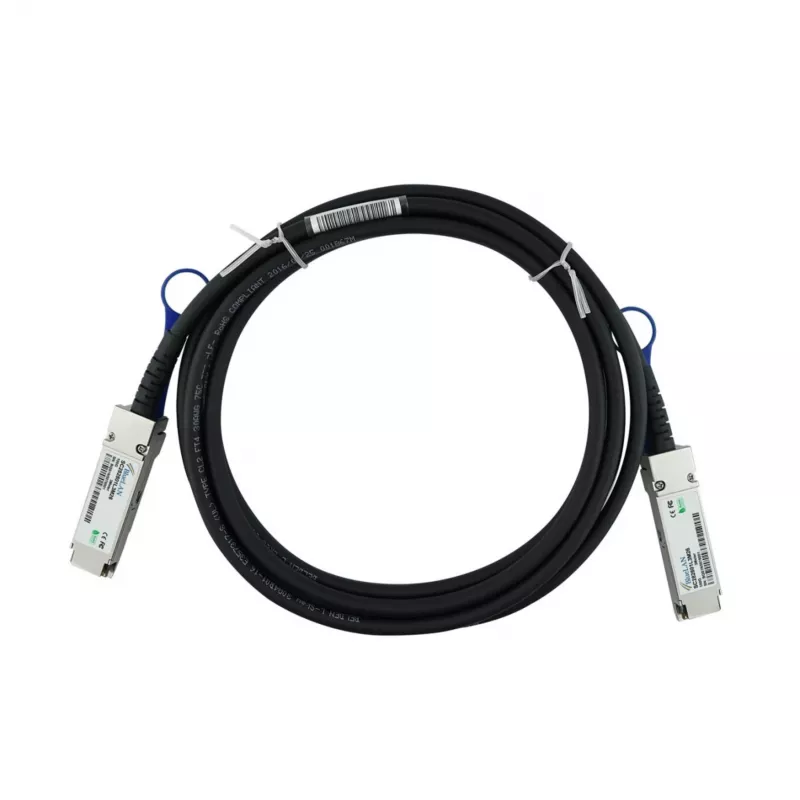

BlueLAN kompatibilný NVIDIA 980-9I624-00E01A QSFP28 Direct Attach kábel, 100GBASE-CR4, 3 m, pasívna meď

The BlueLAN 980-9I624-00E01A-BL is a high-performance QSFP28 direct attach cable (DAC) designed for 100 Gigabit Ethernet applications. It is fully compatible with NVIDIA 980-9I624-00E01A and other QSFP28 MSA compliant equipment, delivering reliable connectivity for data centers, high-performance computing, and enterprise networks.

Advantages

This passive copper cable offers a cost-effective and low-power solution for short-range 100G connections. With a length of 3 meters (9.84 ft), it provides flexibility in rack-to-rack and top-of-rack cabling. The cable is hot-swappable, ensuring minimal downtime during installation or replacement. It supports 100GBASE-CR4 standard and operates at a data rate of 100 Gbps.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise networking
• Top-of-rack to server connections

Key specifications

• Data Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Cable Length: 3 m (9.84 ft)
• Cable Standard: 100GBASE-CR4
• Cable Technology: Passive Copper
• AWG: 26 AWG
• Power Consumption: < 0.5W
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP28 ports that support 100GBASE-CR4. This cable is ideal for short-distance, high-speed connections within a rack or between adjacent racks.
