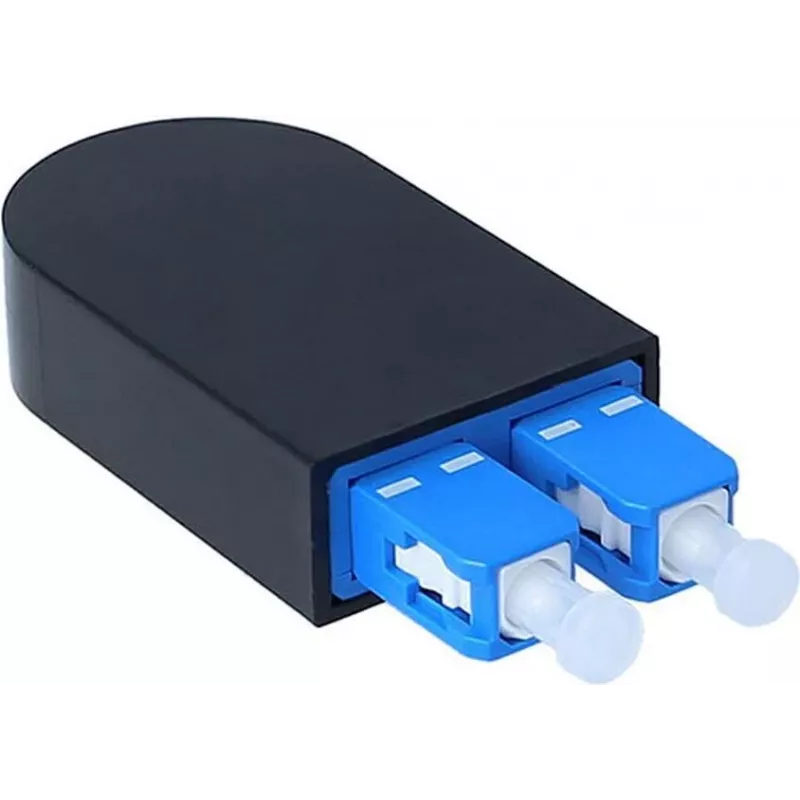

BlueOptics Loopback adaptér SC Duplex Singlemode SM 9/125µm keramická ferula modrý

The BlueOptics Loopback Adapter SC Duplex Singlemode SM is a high-quality fiber optic testing tool designed for network technicians and engineers. It provides a reliable loopback connection for singlemode fiber networks, enabling efficient testing, troubleshooting, and burn-in of optical transceivers and network equipment.

Advantages

This loopback adapter ensures accurate and consistent signal loopback, reducing test time and improving network reliability. Its ceramic ferrule guarantees low insertion loss and high return loss, making it ideal for demanding applications. The durable construction withstands over 500 mating cycles, ensuring long-term performance.

Suitable for

• Fiber optic network testing and troubleshooting
• Burn-in testing of optical transceivers
• Network equipment validation
• Singlemode fiber optic systems (9/125µm)

Key specifications

• Product Type: Fiber Optic Loopback Adapter
• Fiber Mode: Singlemode (SM)
• Fiber Core/Cladding Diameter: 9/125 µm
• Connector Type: SC/UPC Duplex
• Ferrule Material: Ceramic
• Color: Blue
• Operating Temperature Range: -40°C to +85°C
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 50 dB
• Wavelength Compatibility: 1310nm, 1550nm
• Mating Durability: > 500 cycles
• Polarity: A-B Loopback
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this loopback adapter with BlueOptics transceivers and patch cables. Ensure connectors are clean before each use to maintain low insertion loss.
