Sieťový transceiver modul CBO 00AR095-BO SFP+ 10 Gbit/s 1310 nm

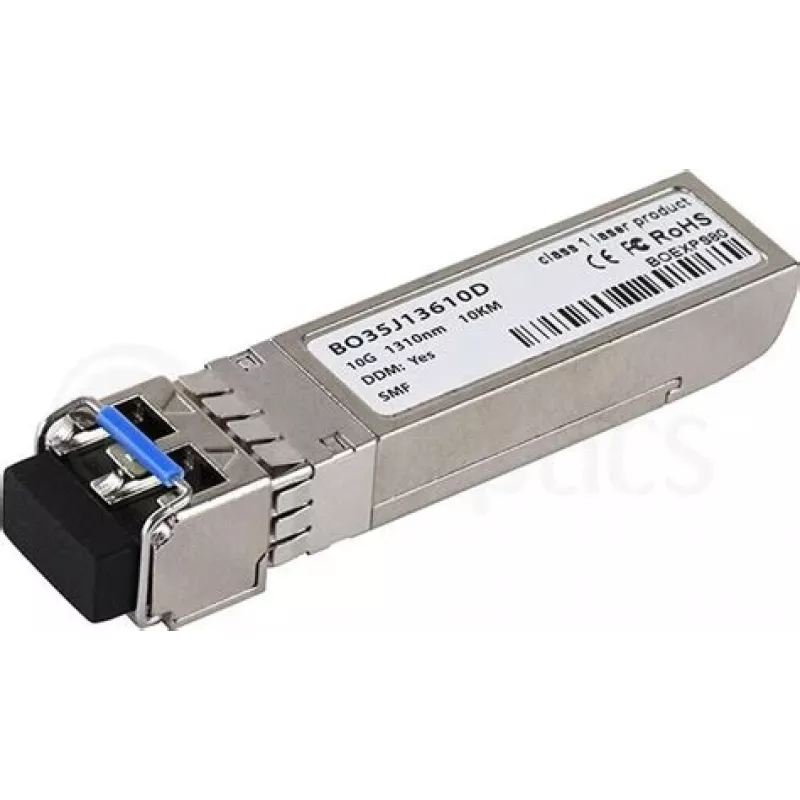

BlueOptics CBO 00AR095-BO SFP+ 10 Gbit/s 1310 nm is a hot-pluggable optical transceiver module designed for 10 Gigabit Ethernet links over single-mode fiber. The module supports a data rate of 10 Gbit/s and operates at a wavelength of 1310 nm, providing reliable short- to medium-range optical connectivity for switches, routers and servers in data centers and enterprise networks. The compact SFP+ form factor enables flexible deployment in network equipment with SFP+ cages or uplink slots.

Advantages

The transceiver offers hot-pluggable installation and standard SFP+ compatibility for straightforward integration into existing 10GbE infrastructures. Operating at 1310 nm, it balances reach and performance for multimode to single-mode links where medium-range optical spans are required. The module's compact design reduces space requirements in dense rack installations and supports stable, low-latency data transport suitable for uplinks and aggregation ports.

Suitable for

• Data center server uplinks and switch aggregation
• Enterprise campus and backbone network segments
• Telecom equipment requiring 10 GbE optical interfaces
• Replacement or spare part for SFP+ compatible network ports

Key specifications

• Form factor: SFP+ (hot-pluggable)
• Data rate: 10 Gbit/s
• Wavelength: 1310 nm
• Optical interface: single-mode fiber
• Typical application range: short to medium optical spans
• Compatible with standard SFP+ cages and ports

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on a switch, router or server until it latches, then connect the single-mode fiber cable with the appropriate LC connector. Ensure the host port is configured for 10 Gbit/s operation and that link settings on both ends match. If the device supports DOM (Digital Optical Monitoring), verify link status and optical parameters through the host management interface. Remove the module by releasing the latch and pulling it straight out to avoid connector damage.

Recommendations

Before installation, confirm compatibility with your network device vendor and verify fiber type and connector type. Handle the optical connectors with care and use dust caps until connection to prevent contamination. For critical links, test the transceiver and cable with appropriate optical test equipment and monitor link health where possible.
