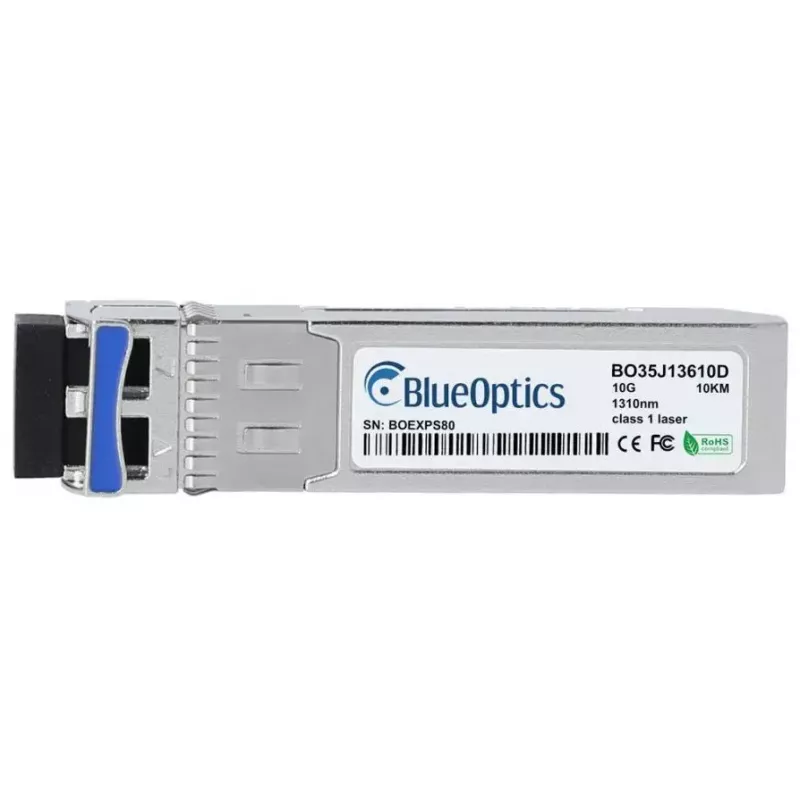

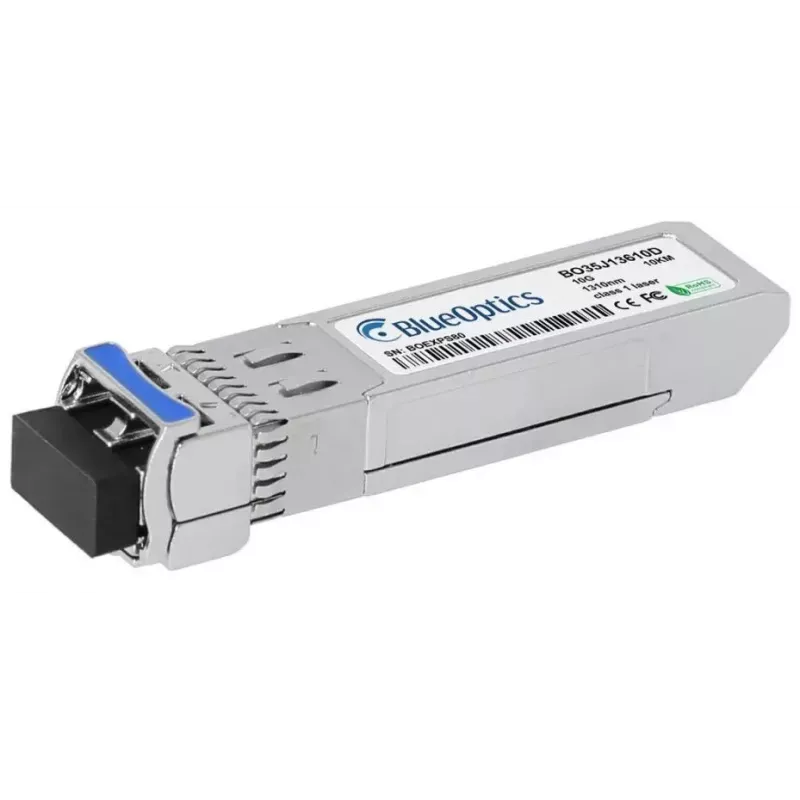

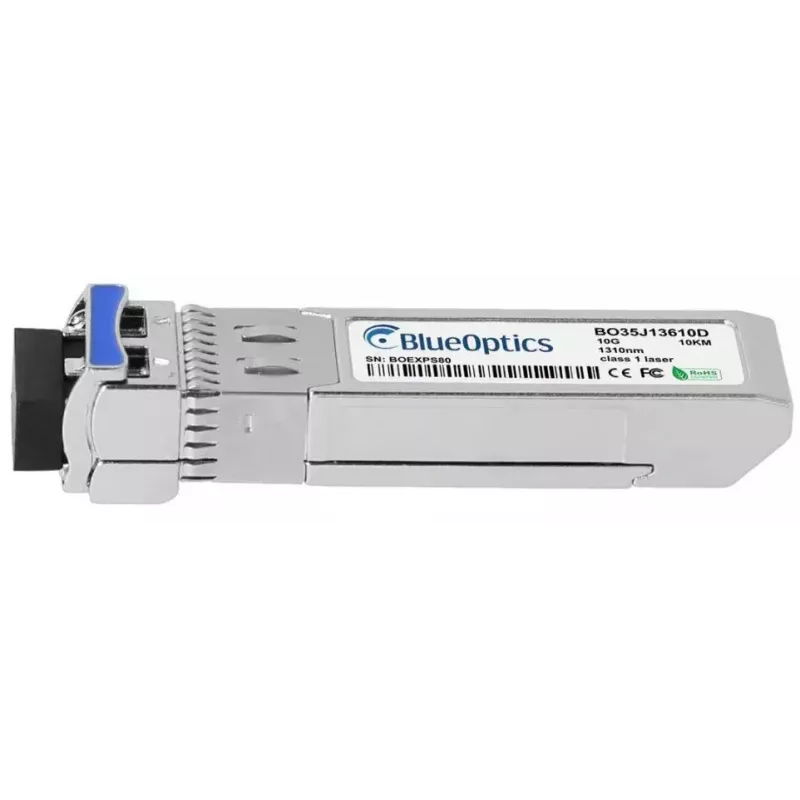

SFP+ transceiver modul BlueOptics 00D6180-BO 10000 Mbit/s 1310 nm

The BlueOptics 00D6180-BO SFP+ transceiver module is a compact optical interface designed for high-speed network links. It supports a maximum data transfer rate of 10000 Mbit/s over single‑mode fiber using a 1310 nm wavelength. The module is RoHS compliant, lightweight (approximately 20 g) and uses the SFP+ form factor and LC duplex connector compatible with MSA‑compliant 10GBASE‑LR deployments.

Advantages

This SFP+ transceiver provides 10 Gbit/s class performance for long‑reach single‑mode fiber links out to typical LR distances. Its compact SFP+ design and silver housing enable simple hot‑swappable installation in compatible ports. The module’s RoHS compliance and low weight contribute to efficient, environmentally conscious network builds. Digital diagnostics (DDM/DOM) support is available when the host hardware implements the interface, enabling real‑time monitoring of operating parameters.

Suitable for

• 10G Ethernet uplinks and fiber backbone connections
• Data center switch-to-switch links and aggregation ports
• Storage area network and high‑speed server interconnects
• Long‑reach single‑mode fiber links within campus or metropolitan networks

Key specifications

• Form factor: SFP+
• Maximum data rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 1310 nm
• Fiber type: single‑mode fiber (SMF)
• Connector: LC duplex
• Compliance: RoHS
• Typical weight: 0.02 kg
• Color: silver

How to use

Ensure the host device supports SFP+ 10GBASE‑LR transceivers and, if required, that digital diagnostics are supported by the platform. With the network port powered down or following the manufacturer’s hot‑swap procedure, insert the BlueOptics 00D6180-BO into an available SFP+ slot until it latches. Connect LC duplex single‑mode fiber patch cords, observing transmit/receive orientation. After insertion, verify link status and negotiated speed on the host device management interface and, if available, read DDM parameters for optical power, temperature and supply voltage.

Recommendations

For reliable long‑reach performance, use single‑mode fiber of appropriate attenuation and quality and pair with compatible LC duplex patch cords and MSA‑compliant SFP+ ports. When deploying in mixed vendor environments, confirm host compatibility and, if necessary, request a test sample to validate link operation before full rollout.
