Busch-Jaeger detektor pohybu štúdiová biely matný 6225/1.0-884 6220-0-0495

Detect movement across a 180° field with a passive infrared sensor that reaches up to 10 m in diameter at the recommended mounting height of 1.1 m. This flush-mounted motion detector switches lighting loads up to 2300 W for incandescent or halogen and 250 W for LED, with adjustable time and brightness settings.

Overview

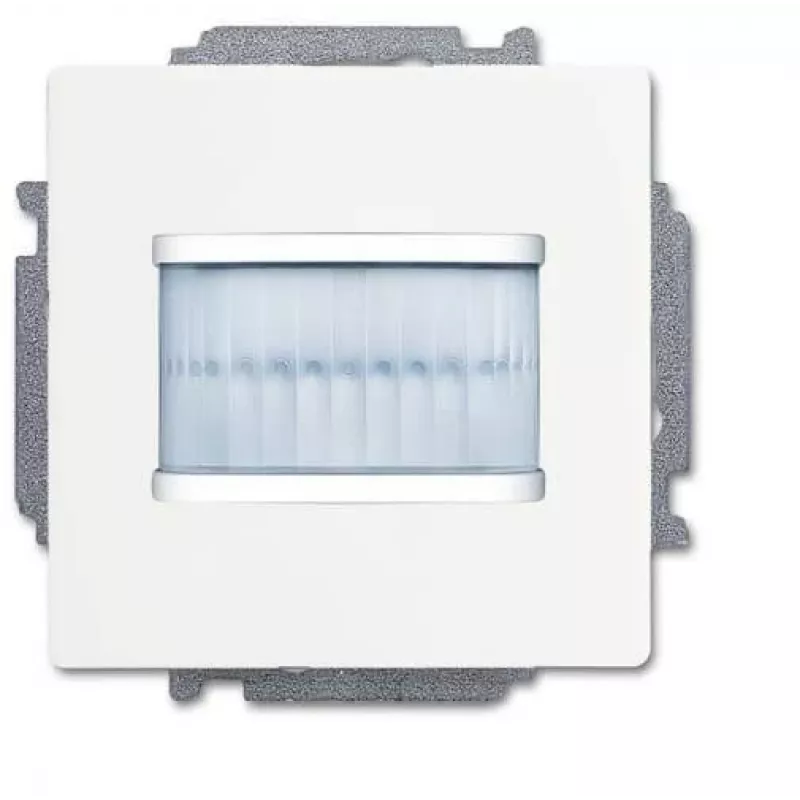

The Busch-Jaeger 6220-0-0495 is a motion detector in studio white matt finish, designed for indoor flush-mounted installation. It operates on 230 V AC and uses passive infrared technology to detect motion, making it suitable for automatic lighting control in residential and commercial spaces.

What stands out

• Wide 180° detection angle covers a large area
• High switching capacity: 2300 W incandescent/halogen, 250 W LED
• Adjustable time delay from 10 seconds to 30 minutes
• Brightness threshold adjustable from 5 to 1000 lux or continuous operation
• Additional functions: short-term pulse, presence simulation, test mode

Technical details

• Detection technology: Passive Infrared (PIR)
• Detection angle: 180°
• Recommended mounting height: 0.8 - 1.2 m (optimal 1.1 m)
• Detection range at 1.1 m height: approx. 10 m diameter (5 m radius)
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity incandescent/halogen: 2300 W
• Max. switching capacity LED: 250 W
• Max. capacitive load: 100 µF
• Time setting range: approx. 10 s - 30 min
• Brightness setting range: approx. 5 - 1000 Lux (or continuous operation)
• Protection class: IP20
• Ambient temperature: 0 °C to +45 °C
• Installation type: Flush-mounted
• Housing material: Thermoplastic (PC)
• Output type: Relay
• Colour: Studio white matt

Our verdict

A versatile motion detector for indoor lighting automation, offering flexible settings and robust switching capacity in a discreet flush-mounted design.
