Capture CA-SC-10200B čítačka čiarových kódov ručná čítačka čiarových kódov 1D/2D LED čierna

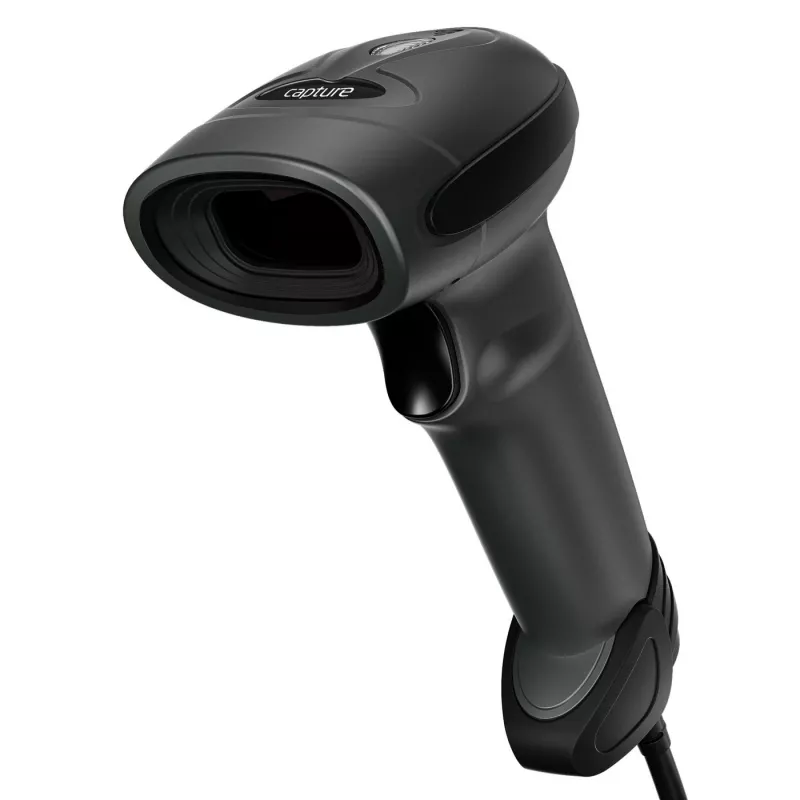

The Capture Viper handheld scanner (Capture CA-SC-10200B) is a wired USB barcode reader designed to scan both 1D and 2D barcodes. Built with an LED sensor and durable ABS housing, it offers reliable performance for reading barcodes on product labels, membership cards and electronic coupons. The device is lightweight (0.156 kg), includes a built-in lithium-ion battery and has an IP52 rating for protection against dust and moisture.

Advantages

The scanner provides fast, accurate decoding of a wide range of linear and matrix barcodes, including faded or damaged codes. Its wired connectivity ensures stable data transfer to POS systems or computers, while the compact ABS housing and low weight make it comfortable for extended handheld use. IP52 protection increases suitability for retail and light industrial environments.

Suitable for

• Point-of-sale scanning at retail checkout
• Membership and loyalty card processing
• Processing paper and digital coupons
• Inventory spot checks and stock control

Key specifications

• Model: Capture CA-SC-10200B
• Scanner type: 1D/2D
• Sensor type: LED
• Connectivity: Wired USB
• Weight: 0.156 kg
• Housing material: ABS (Acrylonitrile butadiene styrene)
• Protection rating: IP52
• Supported 1D codes: Code 128, UPC, Telepen, Plessey, Matrix 2 of 5, MSI, Interleaved 2 of 5, IATA, GS1 DataBar, Code 39, Code 32
• Supported 2D codes: Code 16K, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Code 49, Aztec Code, Codablock

How to use

Connect the Capture CA-SC-10200B to a computer or POS terminal using the supplied USB cable. Aim the scanner at the barcode so the code is within the field of view and press the trigger to activate the LED sensor. Hold the scanner steady until the barcode is read and data is transmitted to the connected system. For best results, position the scanner so the barcode is flat and unobstructed and avoid excessive tilt.

Recommendations

Use the scanner in moderate indoor environments and avoid exposing it to heavy dust or direct spray. Clean the window with a soft, lint-free cloth and avoid harsh solvents. For damaged or very faded barcodes, try scanning from different angles or increase ambient lighting.
