Zebra DS3678-HP ručný čítač čiarových kódov 1D/2D laser čierna, zelená

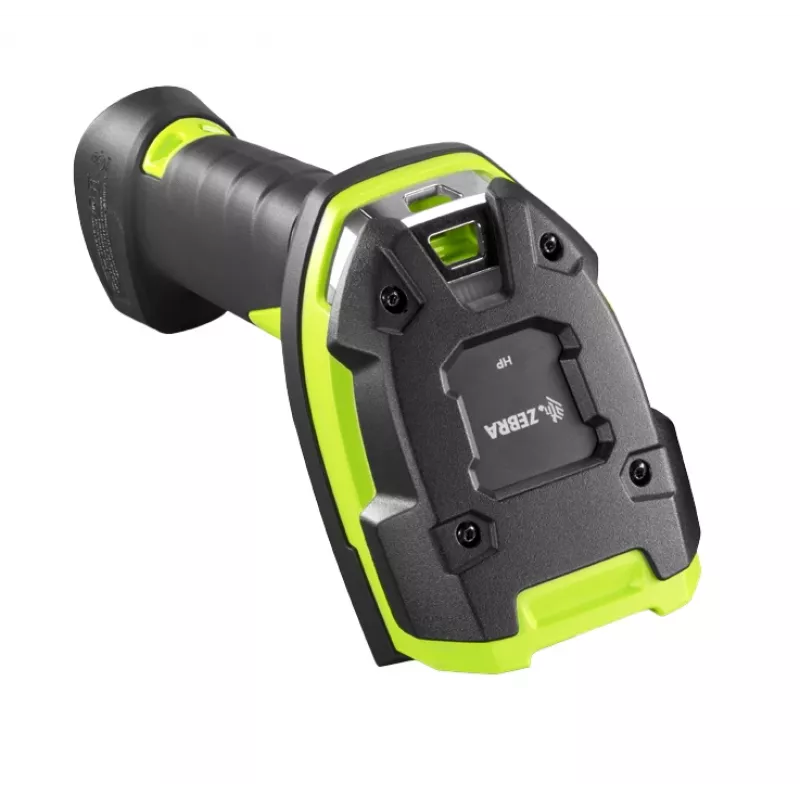

The Zebra DS3678-HP handheld bar code reader is an ultra‑rugged 1D/2D scanner designed for demanding environments such as warehouses and manufacturing floors. Available as a cordless model with a 3100 mAh Lithium‑Ion battery and wireless range up to 100 m, it also supports wired connections (USB, RS‑232). IP67 dust and water resistance, shock protection and an IP65‑sealed cradle for cordless use provide robust protection. The scanner captures 1D and 2D barcodes, photos and legible document images from distances up to 7 ft (2.1 m) to support a variety of capture tasks.

Advantages

The DS3678-HP delivers fast, accurate capture of barcodes in virtually any condition, including damaged, dirty or poorly printed codes, and can also capture high‑resolution photos and OCR/document images for recordkeeping or proof of condition. Its ultra‑rugged construction meets IP67 and IP65 (cradle) ratings and withstands the shocks and drops common in industrial environments. Multiple connectivity options and remote management tools simplify deployment and ongoing administration.

Suitable for

• Inventory and stock management in warehouses
• Receiving and inspection — photo and barcode capture for proof of condition
• Production and manufacturing floor data collection
• Retail point‑of‑sale and backroom scanning
• Document imaging and OCR for electronic records

Key specifications

• Scanner type: 1D/2D handheld
• Sensor type: Laser
• Capture range: up to 7 ft / 2.1 m
• Connectivity: Wired (USB, RS‑232) and Wireless (up to 100 m range)
• Battery (cordless): 3100 mAh Lithium‑Ion
• Durability: IP67 (scanner), IP65 (cradle); shock‑resistant
• Supported 1D codes: U.P.C., Plessey, MSI, GS1‑128, Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: QR Code, Data Matrix, PDF417, Aztec, MaxiCode, Micro QR, MicroPDF417, Han Xin, Composite Codes, TLC‑39
• Weight: 0.411 kg
• Colours: Black, Green

How to use

Connect the DS3678-HP to your host system using the preferred interface (USB or RS‑232) or use the cordless configuration for wireless operation. Aim the scanner at the barcode, document or object and press the trigger to capture; the device will automatically decode supported 1D/2D codes and can capture photos or document images for OCR. Use the cradle for charging and host connection when operating in cordless mode.

Recommendations

For reliable long‑term operation, keep firmware up to date via Zebra’s management tools, monitor battery health for cordless units, and use the IP65‑sealed cradle in dusty or wet locations. For best image results, position documents flat and ensure adequate lighting when capturing photos or OCR images.
