Chief Large Fusion mikro-nastaviteľný pevný nástenný držiak pre displeje

The Chief LSM1U is a micro-adjustable fixed wall display mount designed for 42–86" screens, supporting up to 90.7 kg. It features a low-profile black design (464 x 883 x 51 mm) and a robust construction for secure, long-lasting installation. The mount incorporates Fusion-series improvements—such as ControlZone leveling, Centerless Shift and ClickConnect—to simplify alignment, speed installation and maintain stability for commercial or residential displays.

Advantages

The integrated teardrop wall plate design allows pre-installation of bolts to the wall for faster mounting, while ControlZone Leveling provides post-installation fine tuning of height and leveling. Centerless Shift enables up to 17.4" (441 mm) of lateral adjustment after installation for precise centering. Set screws keep the mount rigid and secure, and ClickConnect gives an audible click when the display properly engages. Built-in cable stand and improved end caps enhance cable access and management. The mount includes integrated security, magnetic Quick-Store cords for pull-cord storage, exclusive nesting spacers to adjust depth, multiple stud-distance installation options, and a custom hardware kit that can hang from the rails for staged installs. The packaging uses an Easy Open box with reduced waste.

Suitable for

• Mounting 42–86" flat panel displays in homes, offices or public spaces
• Commercial installations requiring secure, low-profile mounting
• AV installations where post-installation micro-adjustments and cable access are needed

Key specifications

• Supported display size: 42–86"
• Maximum load: 90.7 kg

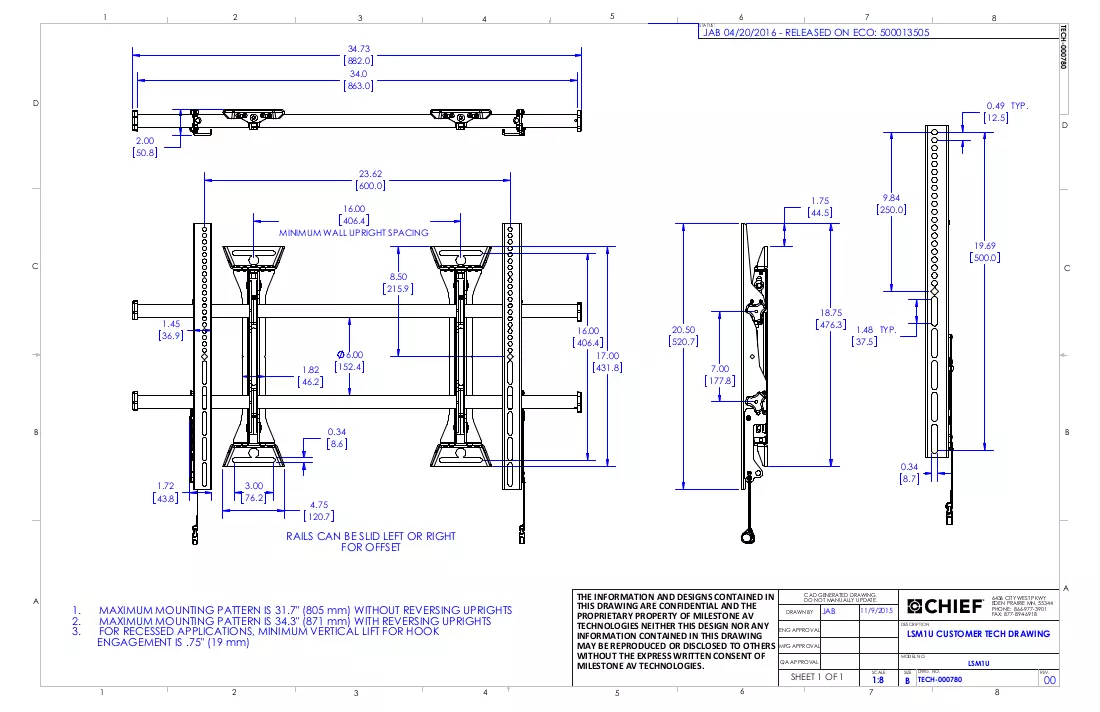

• Dimensions (HxWxD): 464 x 883 x 51 mm
• Centerless lateral shift: up to 441 mm (17.4")
• Finish: Black
• Model: Chief LSM1U
• MPN: LSM1U
• EAN: 841872163260

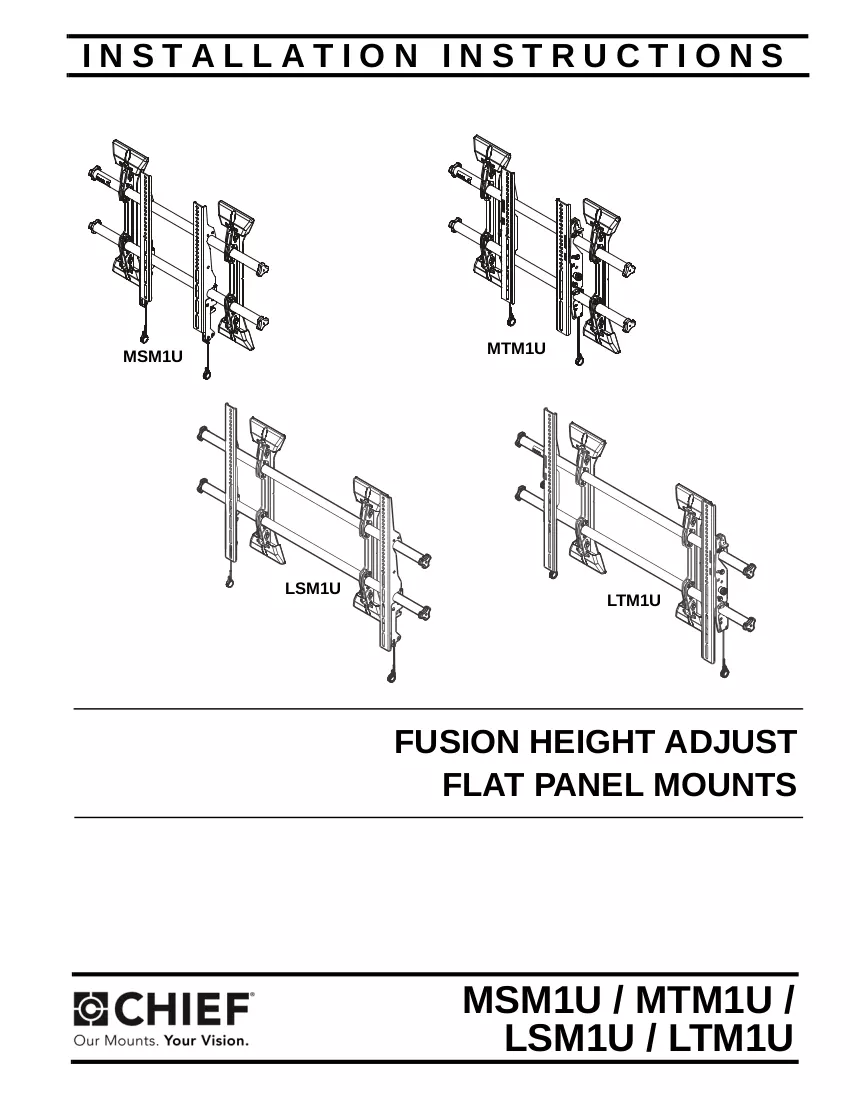

How to use

Secure the integrated teardrop wall plate to the wall using appropriate anchors or bolts for your wall type, pre-installing bolts if desired. Attach the mount rails to the display using compatible VESA hardware, engage the display with the mount until ClickConnect audibly confirms engagement, then use ControlZone Leveling and Centerless Shift to fine-tune height and lateral position. Tighten set screws to lock the mount in place. Route cables through the built-in cable stand and secure with the improved end caps and Quick-Store cords as needed.

Recommendations

Use appropriate wall anchors or structural support matching the combined weight of the display and mount. Verify stud locations and the mount’s load rating before installation. For staged installations, hang the provided hardware kit on the mount rails to simplify assembly. If in doubt, consult a professional installer to ensure secure and code-compliant mounting.
