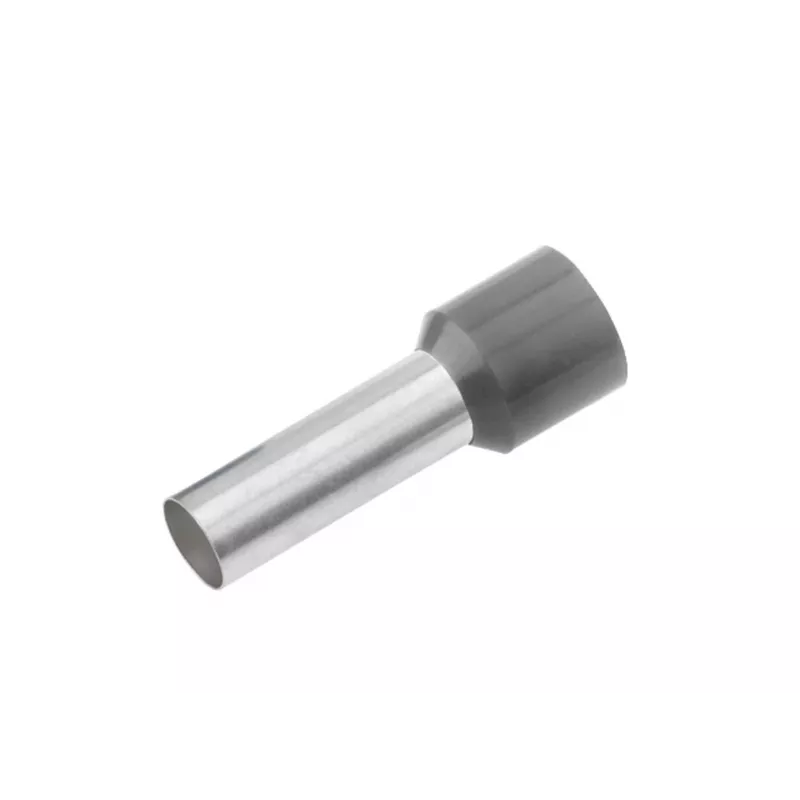

Cimco 187004 čiastočne izolovaná Aderendhülse, 0,75 mm², sivá, 100 kusov

Wire ferrule for terminating stranded copper conductors with a cross-section of 0.75 mm². The partially insulated design provides reliable electrical connections and protects the conductor from fraying, while the grey insulation sleeve allows for easy identification according to DIN colour coding.

Advantages

Tin-plated electrolytic copper ferrule ensures excellent conductivity and corrosion resistance. The funnel-shaped wire entry simplifies insertion of stranded conductors, reducing assembly time. Polypropylene insulation offers good mechanical stability and a wide temperature range from -40°C to +105°C.

Suitable for

• Terminating stranded copper conductors in control cabinets and terminal blocks
• Industrial wiring applications requiring reliable, vibration-resistant connections
• Use with conductors up to 0.75 mm² (18 AWG)

Key specifications

• Conductor cross-section: 0.75 mm²
• Insulation type: partially insulated
• Colour: grey
• Pack quantity: 100 pieces
• Ferrule material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Standard: DIN 46228 Part 4
• Ferrule length (metal part): 8 mm
• Total length (with insulation): 14 mm
• Temperature range: -40°C to +105°C
• Max. voltage: 600 V
• Wire entry: funnel-shaped
• AWG equivalent: 18 AWG

Recommendations

Use a matching crimping tool designed for wire ferrules to achieve a gas-tight connection. For best results, strip the conductor to the length of the metal ferrule before crimping.
