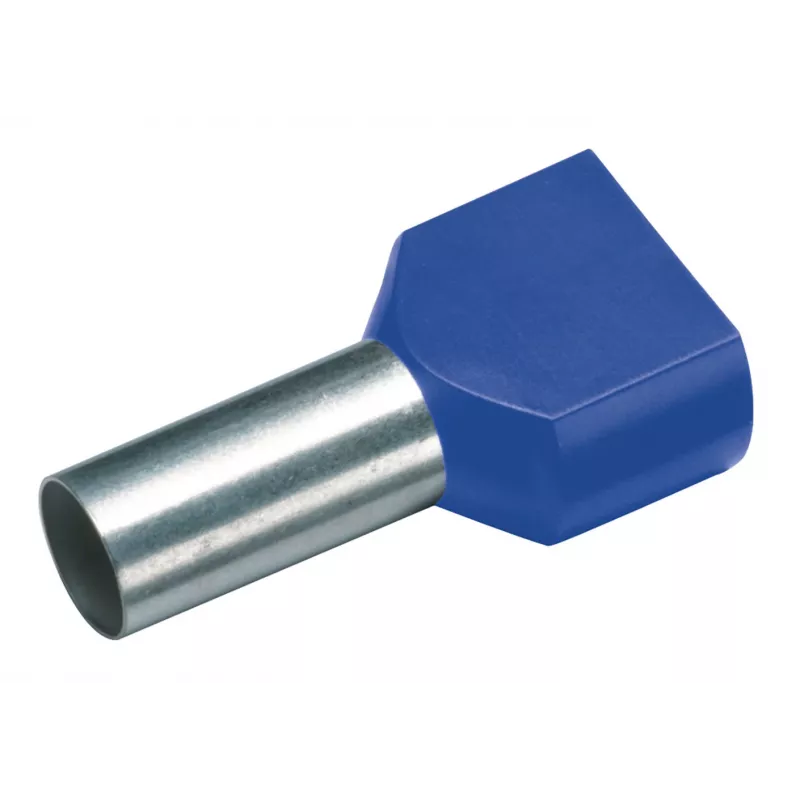

Cimco 187710 dvojitá koncovka vodiča 2,5 mm² čiastočne izolovaná modrá 100 ks

Electricians and panel builders use the Cimco 187710 twin wire end ferrule to connect two flexible conductors into a single terminal point, ensuring a secure and reliable connection in control cabinets and electrical installations.

Key specifications

• Wire cross-section: 2.5 mm²
• Insulation type: partially insulated
• Insulation colour: blue
• Pack quantity: 100 pieces
• Ferrule material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Metal sleeve length: 12 mm
• Total length: 19 mm
• Inner diameter: 2.5 mm
• Outer diameter: 3.0 mm
• Insulation diameter: 5.5 mm
• Temperature range: -40°C to +105°C
• Voltage rating: 600 V
• Standard compliance: DIN 46228 Part 4
• RoHS compliant: Yes
• Application: connecting two flexible conductors into one terminal
• Conductor compatibility: fine-stranded copper conductors

Why choose it

The twin design saves space and time by combining two wires in one ferrule, while the partial insulation provides protection without excessive bulk. The tin-plated copper ensures excellent conductivity and corrosion resistance.

Ideal use cases

• Control cabinet wiring
• Industrial machinery connections
• Building installation with fine-stranded conductors

Good to know

The blue insulation colour corresponds to the standard colour code for 2.5 mm² ferrules, simplifying identification. The ferrules are supplied in a pack of 100 for convenient stocking.
