Cimco L-Boxx Mini sada izolovaných koncoviek 438010, 475 kusov, 0,75-10 mm², DIN 46228-4

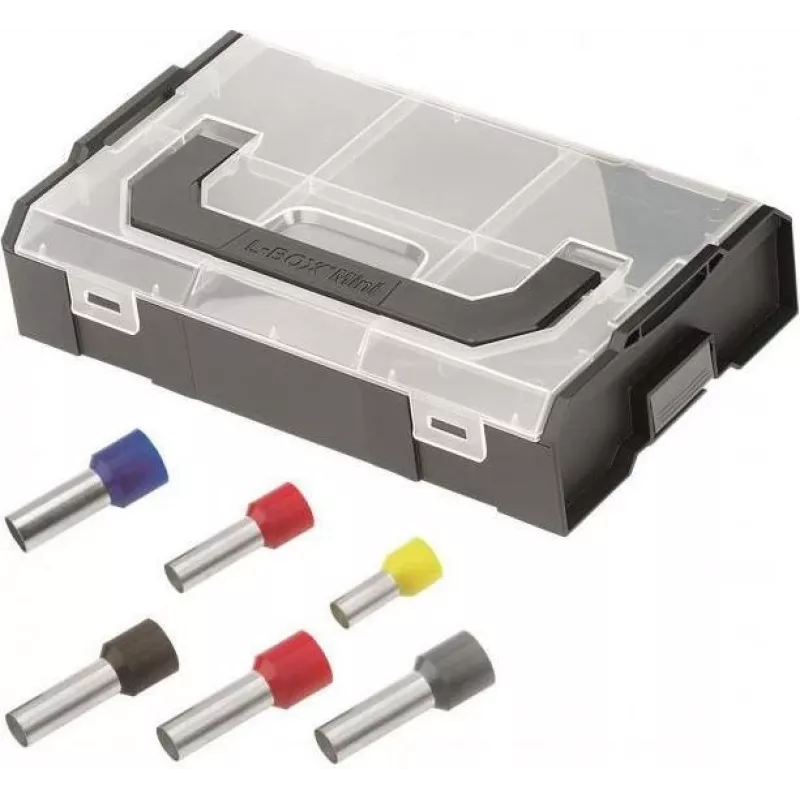

Electricians working on control cabinets or field installations often need a reliable assortment of insulated wire end ferrules in multiple cross-sections. The Cimco L-Boxx Mini AE Isol 438010 puts six common sizes—0.75, 1.0, 1.5, 2.5, 6.0, and 10.0 mm²—into one compact, stackable case. Each ferrule is made from electrolytic copper with a tin-plated surface and polypropylene insulation, colour-coded for quick identification. The total count is 475 pieces, covering most everyday wiring tasks from fine-stranded control wires to larger power conductors.

Key specifications

• Product type: Insulated wire end ferrule assortment
• Container: L-Boxx Mini (stackable, compatible with L-Boxx system)
• Cross-sections included: 0.75, 1.0, 1.5, 2.5, 6.0, 10.0 mm²
• Total quantity: 475 pieces
• Quantity per size: 100 × 0.75 mm² (grey), 100 × 1.0 mm² (red), 100 × 1.5 mm² (black), 100 × 2.5 mm² (blue), 50 × 6.0 mm² (yellow), 25 × 10.0 mm² (red)
• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Standard compliance: DIN 46228 Part 4
• Max. operating temperature: 105 °C
• Voltage rating: Up to 600 V

Why choose it

Having the right ferrule size on hand prevents loose connections and reduces installation time. The colour-coded insulation makes it easy to grab the correct size at a glance, while the L-Boxx Mini keeps everything organised and protected on the job site. The tin-plated copper construction ensures low contact resistance and corrosion resistance, meeting the requirements of DIN 46228-4 for reliable crimping.

Ideal use cases

• Control cabinet wiring and panel building
• Industrial machine and equipment installation
• Electrical maintenance and repair work
• Automation and instrumentation projects
• On-site service vehicles needing a compact ferrule stock

Good to know

The L-Boxx Mini is part of the Bosch L-Boxx system, allowing you to stack and connect multiple cases for transport. The assortment covers the most frequently used cross-sections, reducing the need for multiple separate packs. Always use a proper crimping tool designed for insulated ferrules to ensure a gas-tight connection.
