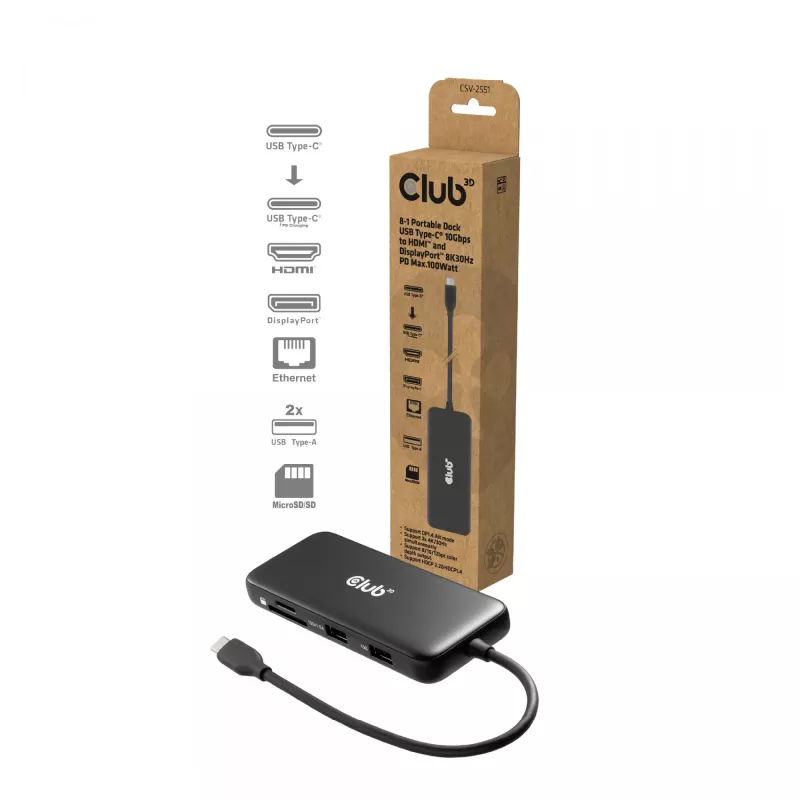

CLUB3D 8-1 prenosný dock USB Type-C® 10Gbps na HDMI™ a DisplayPort™ 8K30Hz PD max. 100Watt

The CLUB3D 8-1 USB Type-C docking station expands a USB Type-C computer or tablet with high-speed data, video outputs and Power Delivery. It offers three 10Gbps USB ports (two USB-A and one USB-C), HDMI and DisplayPort video outputs supporting up to 8K at 30Hz, a 1 GBASE-T Gigabit Ethernet port and a USB-C Power Delivery 3.0 pass-through up to 100W (15W reserved for the dock).

Advantages

This compact dock provides multiple high-speed USB 10Gbps ports for peripherals, a full Gigabit Ethernet port for reliable wired networking, and dual video outputs (HDMI and DisplayPort) capable of 8K30Hz. Power Delivery 3.0 enables up to 100W charging to the host while allocating 15W to the dock for stable operation. The device supports bus power or can be used with an external USB-C power adapter for enhanced performance.

Suitable for

• Connecting peripherals (external drives, keyboards, mice) via USB 10Gbps ports
• Adding wired Gigabit Ethernet to laptops or tablets without Ethernet
• Driving external displays through HDMI or DisplayPort up to 8K30Hz
• Charging laptops and devices with USB-C Power Delivery 3.0

Key specifications

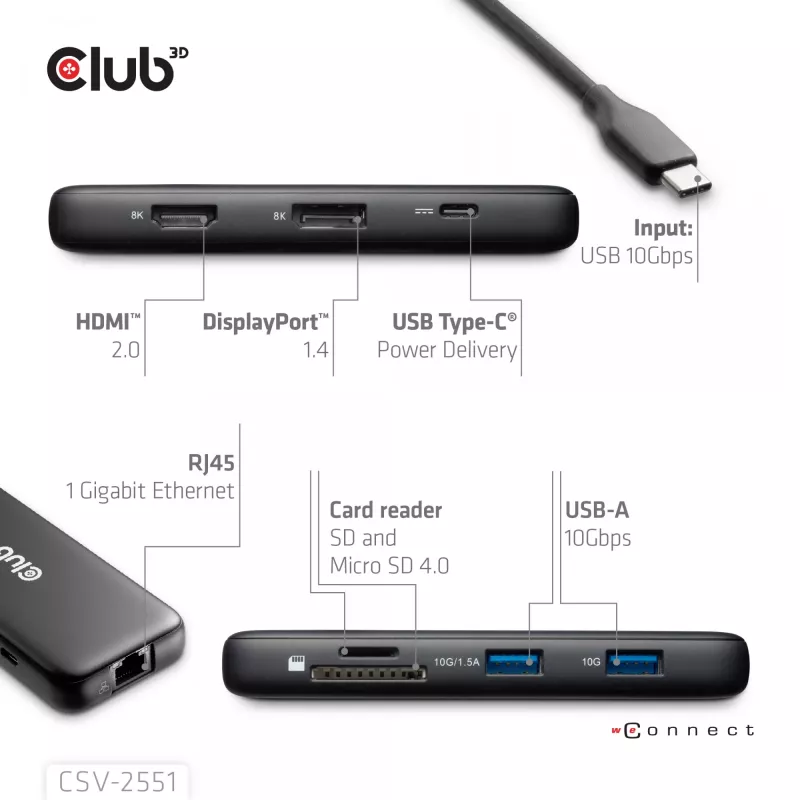

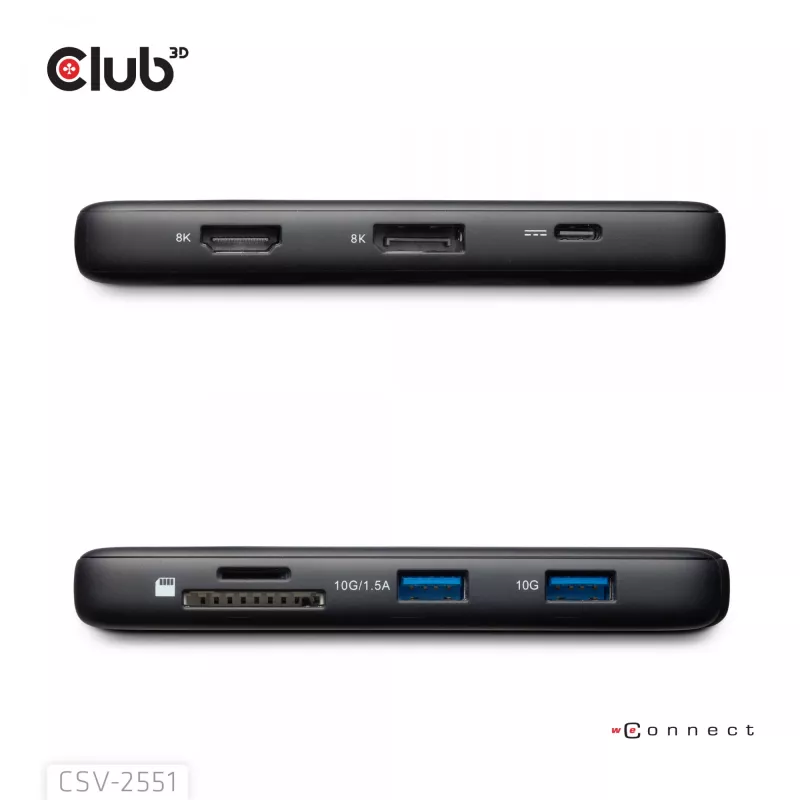

• Ports: 2x USB-A 10Gbps, 1x USB-C 10Gbps, 1x USB-C PD input/output
• Video outputs: HDMI and DisplayPort (supports up to 8K@30Hz)

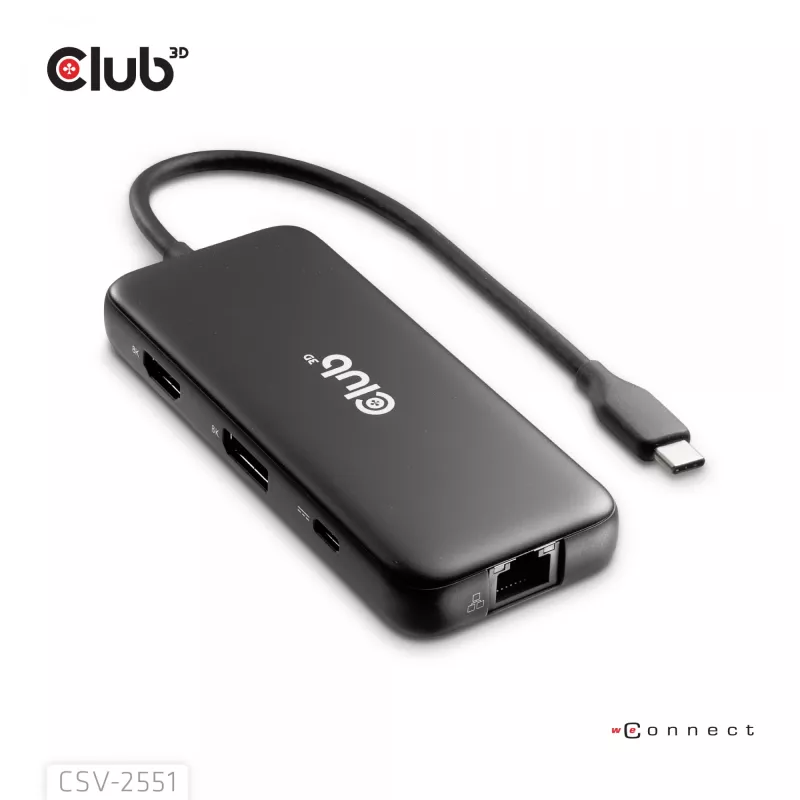

• Network: 1 GBASE-T Gigabit Ethernet (10/100/1000 Mbps)
• Power Delivery: PD 3.0 pass-through up to 100W (15W reserved for dock)
• Power options: USB bus-powered or external USB-C power adapter

How to use

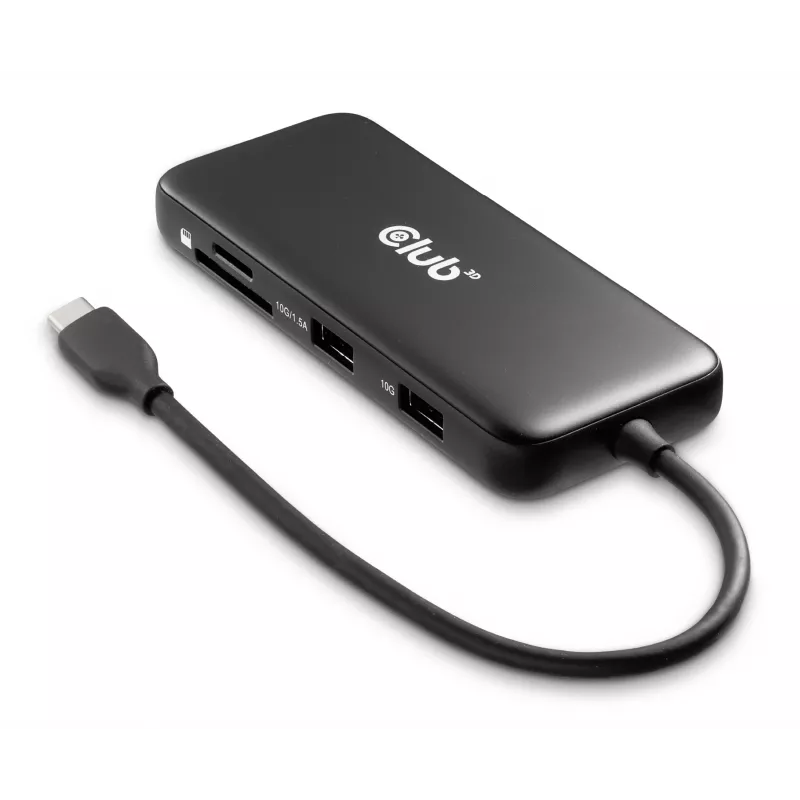

Connect the dock to your host device using the integrated USB Type-C cable. If connecting displays, attach HDMI or DisplayPort cables from the dock to the external monitors. Plug USB peripherals into the USB-A or USB-C ports and connect an Ethernet cable to the Gigabit port for wired network access. To charge the host device or provide full power to multiple peripherals, connect a compatible USB-C PD 3.0 power adapter to the dock; the dock requires 15W for its own operation and passes up to 100W to the host.

Recommendations

For stable multi-display or heavy-peripheral use, connect an external USB-C PD power adapter that meets your laptop’s power requirements. Ensure your host supports USB-C DisplayPort Alt Mode to use the HDMI/DisplayPort outputs and check device compatibility for 8K output.
