CLUB3D USB 3.2 Gen 1 4K UHD pri 30Hz Mini dokovacia stanica ultra-slim dizajn

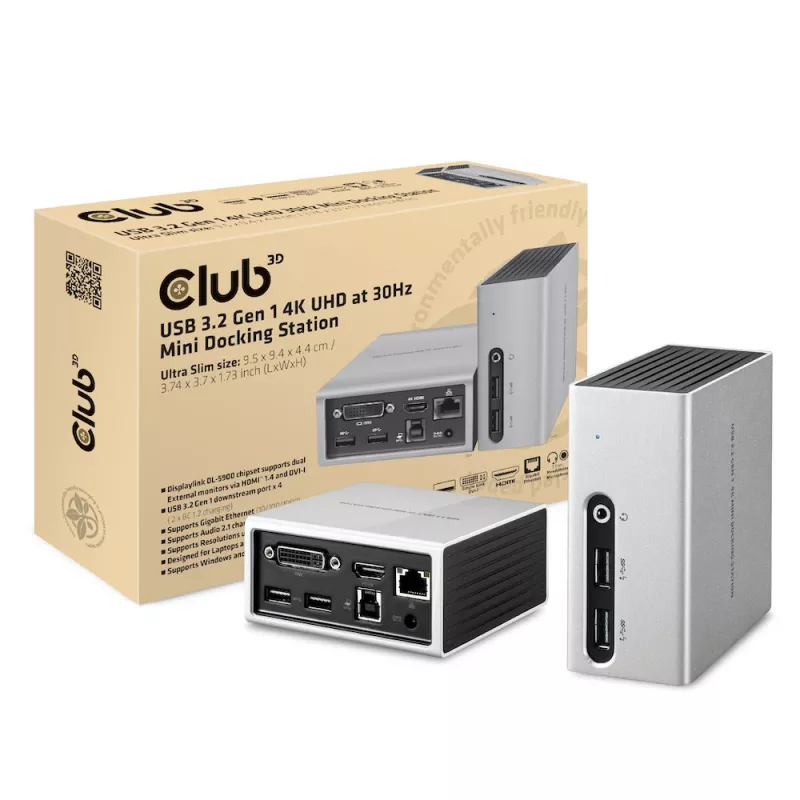

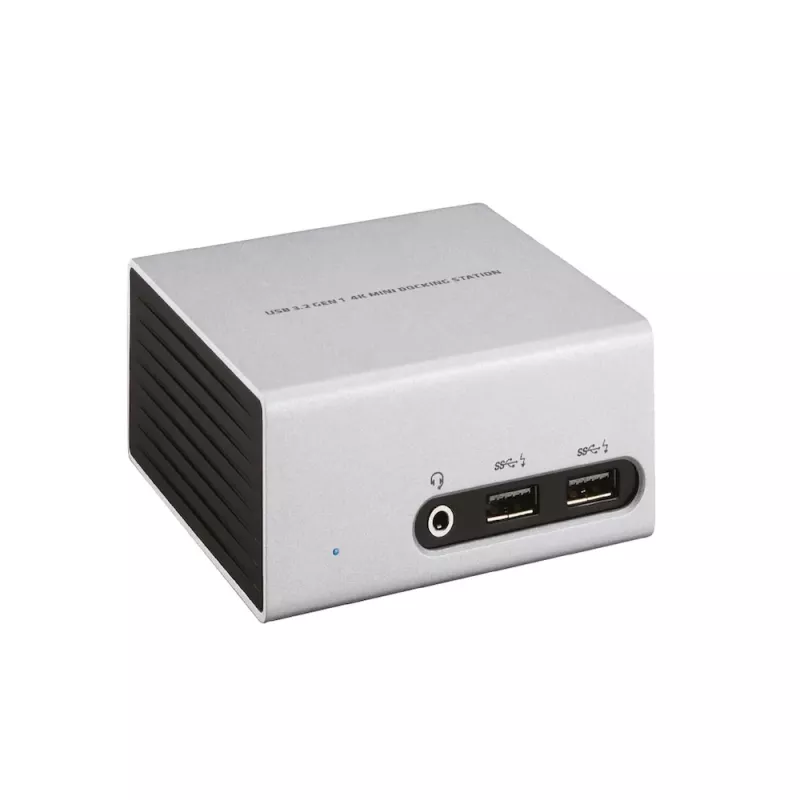

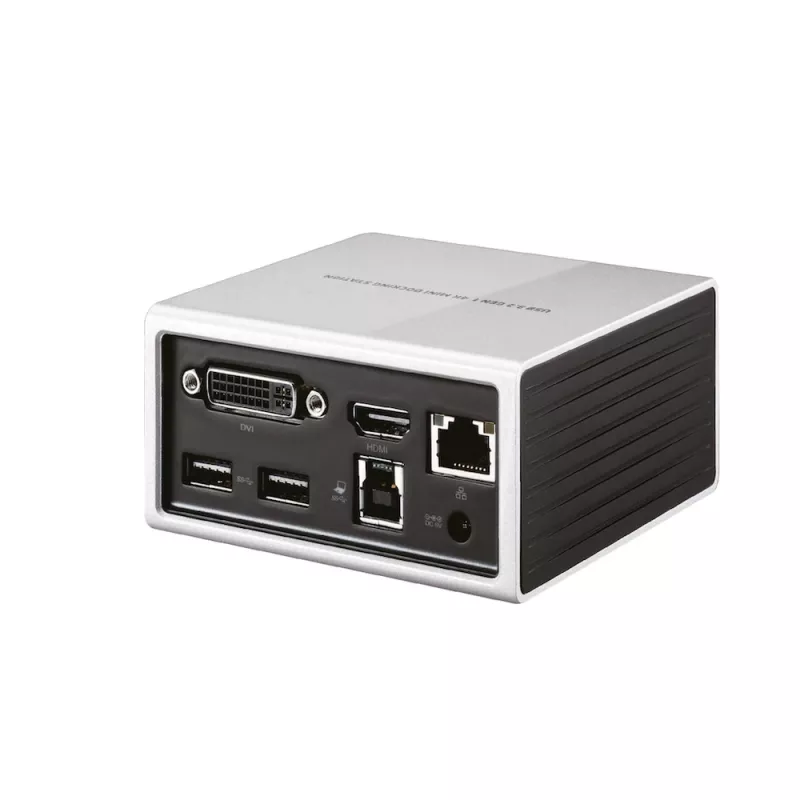

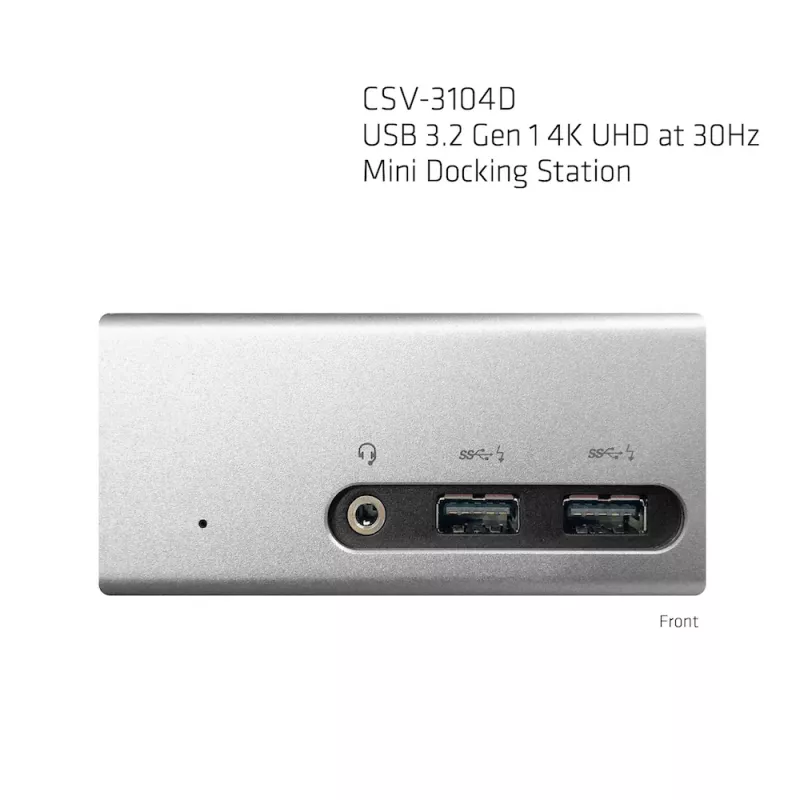

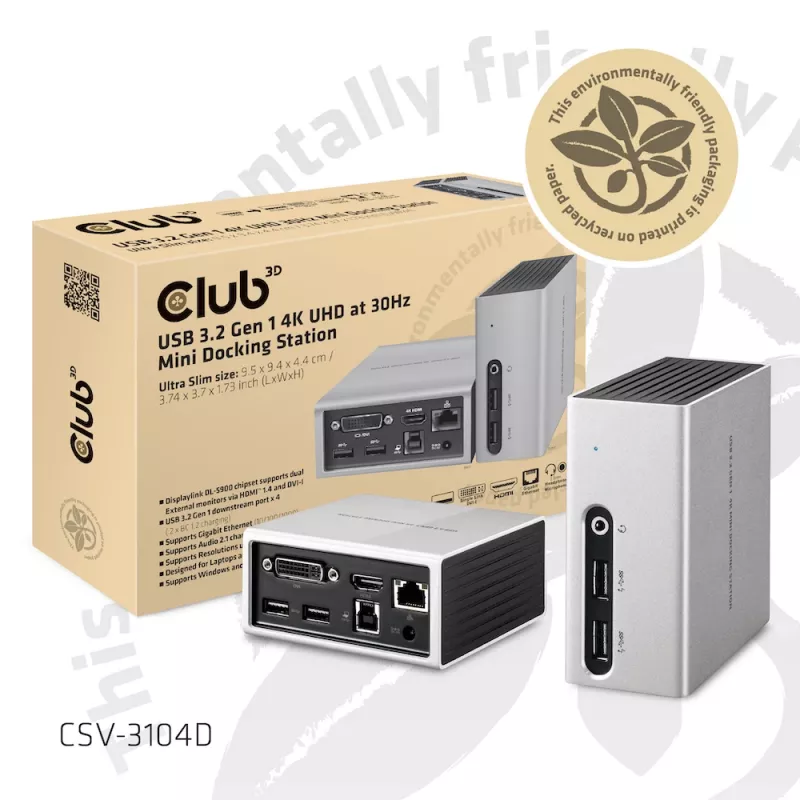

The Club 3D USB 3.2 Gen 1 Mini Docking Station (CSV-3104D) is a compact adapter that expands a laptop or ultrabook into a desktop-style workspace. Featuring a brushed aluminium design and powered by the DisplayLink DL-5900 chipset, this mini docking station provides multiple ports — including HDMI, DVI‑D, four USB 3.2 Gen 1 Type‑A ports, Gigabit Ethernet (RJ‑45) and a 3.5 mm audio/microphone jack — through a single USB 3.2 Gen 1 connection. It supports 4K UHD output at 30 Hz and is designed for portability and straightforward connectivity without requiring a large docking solution.

Advantages

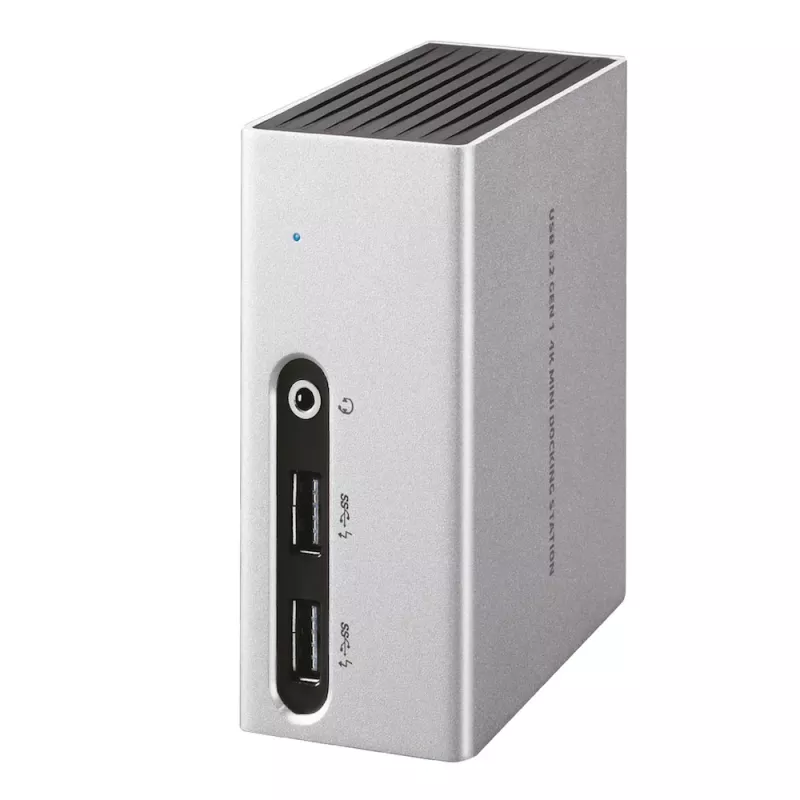

The docking station combines multiple connectivity options in a small, lightweight enclosure, allowing connection of two external displays (HDMI + DVI‑D), four USB peripherals, wired network access at up to 1000 Mbit/s and audio I/O via one USB cable. Its brushed aluminium look with black accents provides a durable, compact unit that is easy to carry and integrates LED power indicators. The device can operate without external power for increased mobility, with limited functionality when bus‑powered.

Suitable for

• Expanding laptop ports for home or office desktop setups

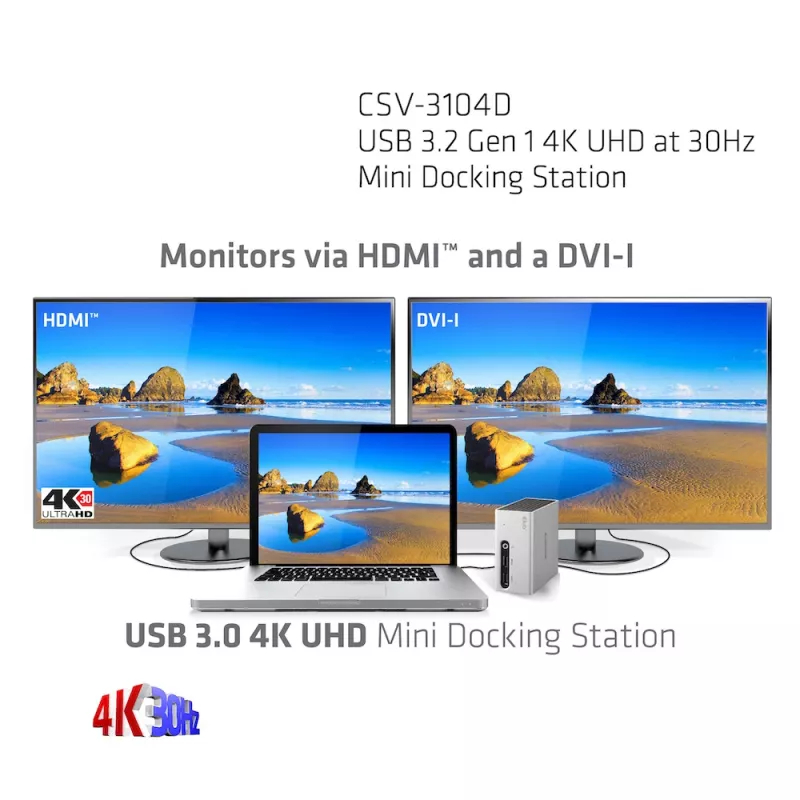

• Connecting external monitors for multitasking (HDMI + DVI‑D)
• Mobile professionals who need Ethernet and multiple USB ports on the go
• Small workstations that require audio and wired network connectivity

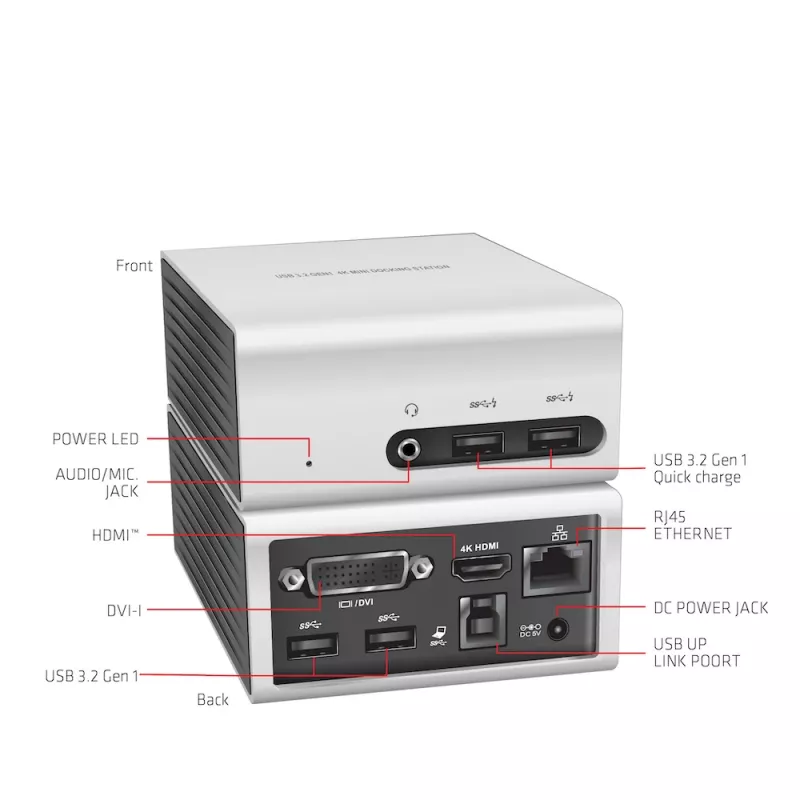

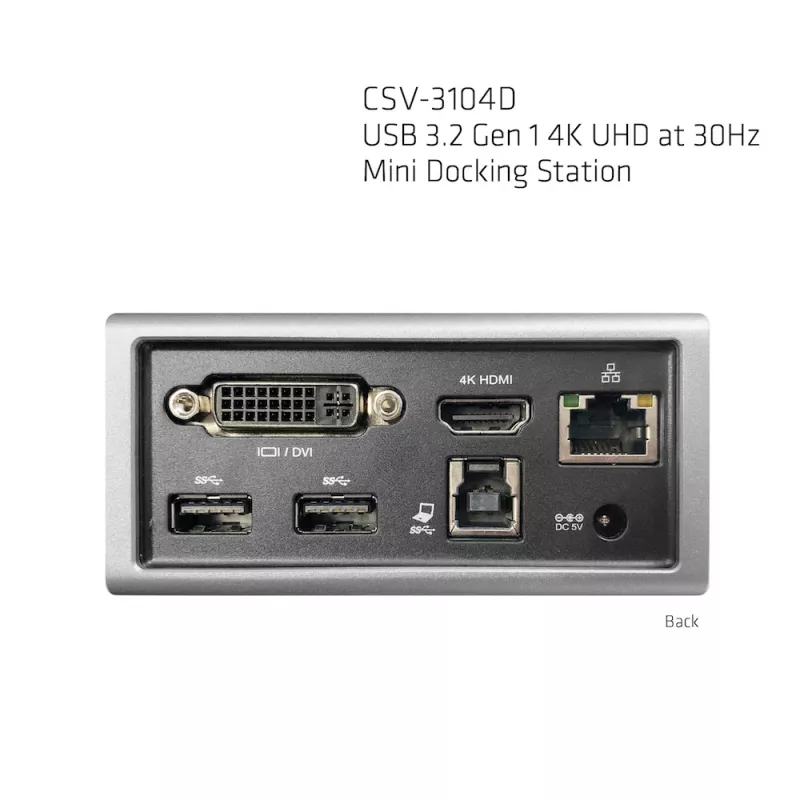

Key specifications

• Model: CLUB3D CSV-3104D
• Interface: USB 3.2 Gen 1 (Type‑A)
• Video outputs: 1 × HDMI, 1 × DVI‑D; up to 4K UHD @ 30 Hz

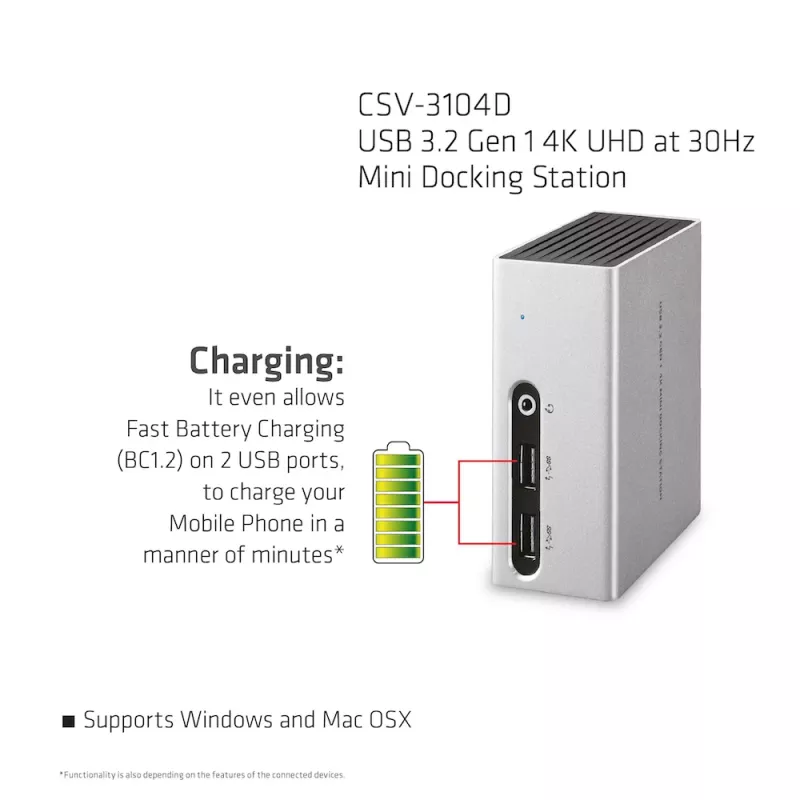

• USB ports: 4 × USB 3.2 Gen 1 Type‑A
• Ethernet: 1 × RJ‑45, up to 1000 Mbit/s (Gigabit Ethernet)
• Audio: 3.5 mm headphone/microphone jack
• Chipset: DisplayLink DL‑5900
• Power: 12 V DC, 3 A (external power available; bus‑powered operation with reduced functionality)
• Colour: Silver, Black
• Weight: 0.26 kg

How to use

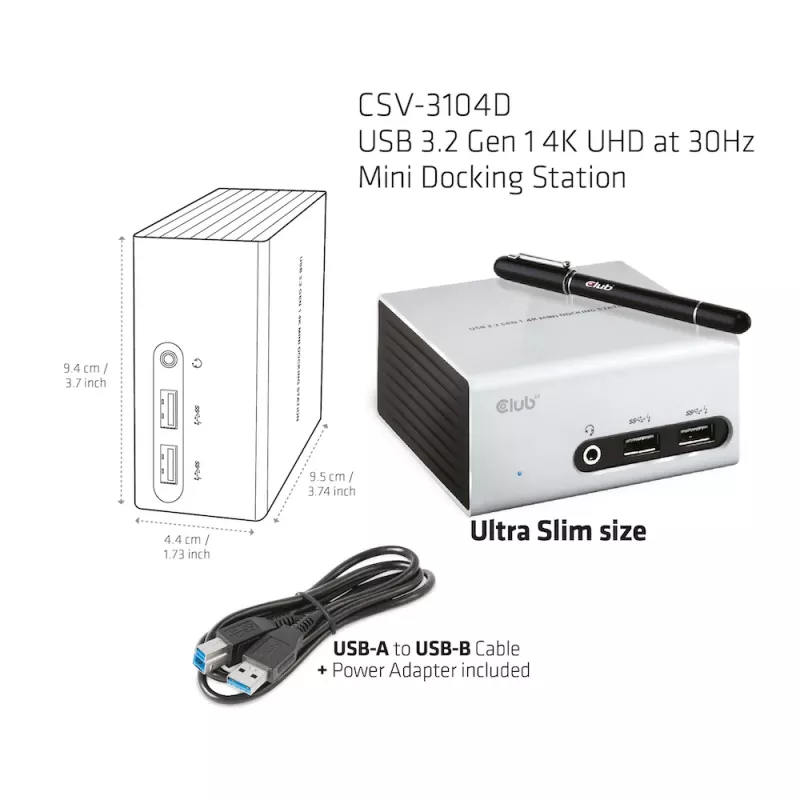

Connect the docking station to your laptop using the supplied USB 3.2 Gen 1 Type‑A cable. Attach external displays to the HDMI and DVI‑D ports and connect wired network using the RJ‑45 port. Plug USB peripherals into the available USB Type‑A ports and connect headphones or a headset to the 3.5 mm jack. If higher performance or full functionality is required, connect the supplied 12 V DC, 3 A power adapter; otherwise the unit can operate from the host USB port with limited features.

Recommendations

For stable 4K output and maximum peripheral performance, use the external 12 V DC, 3 A power adapter and ensure host drivers (DisplayLink) are installed and up to date. When using bus power, expect reduced display or peripheral capability.
