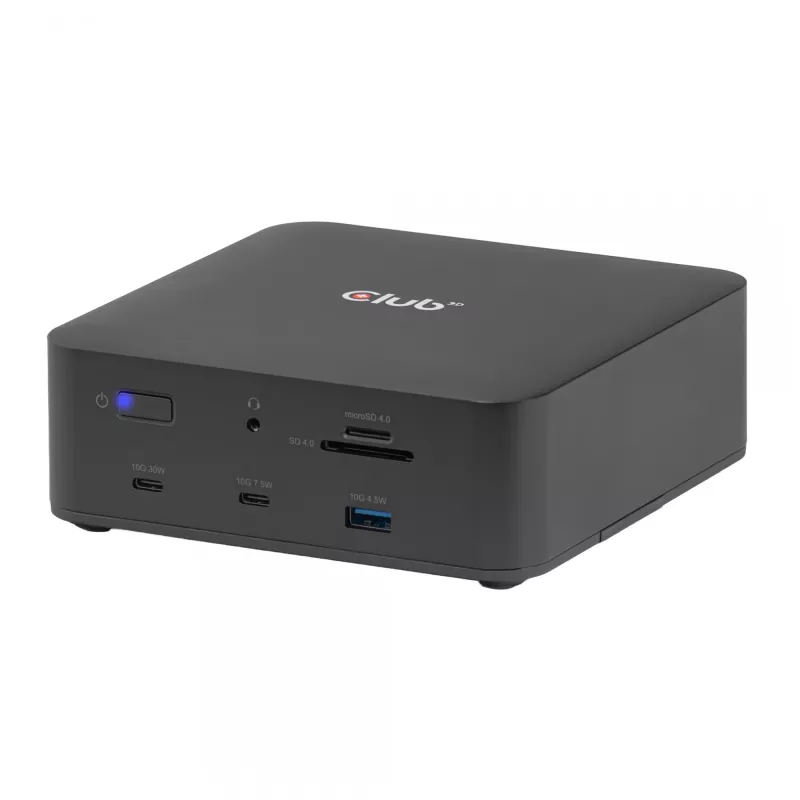

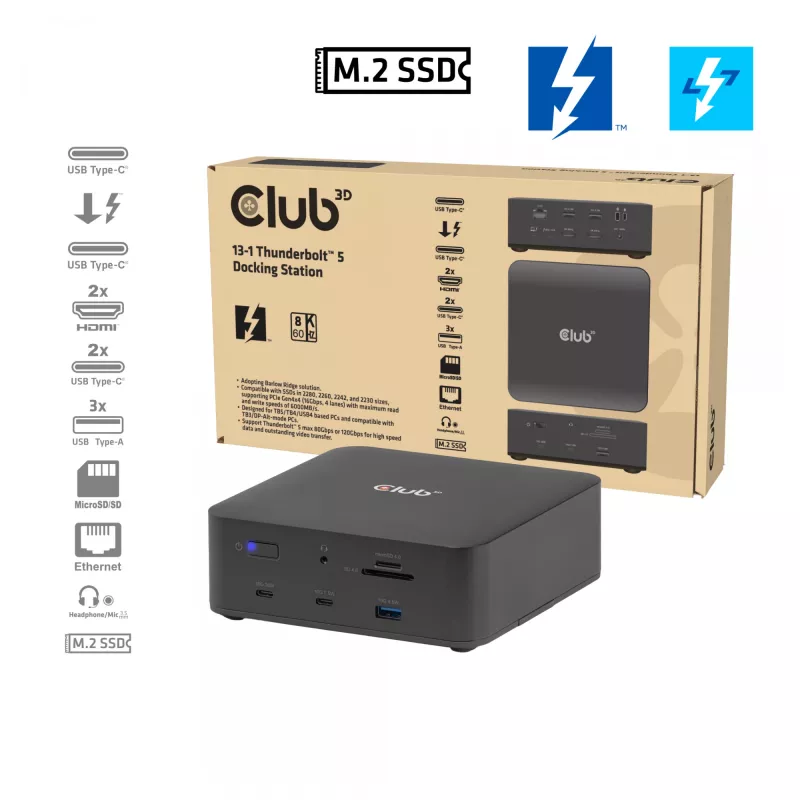

Dokovacia stanica CLUB3D CSV-2562 Thunderbolt 5, M.2 SSD, 2×HDMI 8K60Hz, 180W, 120 Gbit/s

CLUB3D CSV-2562 is a wired Thunderbolt 5 docking station that expands connectivity and performance for Thunderbolt/USB4/USB-C laptops and PCs. It supports an M.2 SSD module for additional high-speed storage, offers dual HDMI outputs capable of up to 8K60Hz, provides up to 140 W USB Power Delivery to a connected laptop (with a 180 W power supply for hub and host), and delivers high data throughput up to 120 Gbit/s. The dock also includes Gigabit and 2.5Gb Ethernet support, SD/MicroSD Express card compatibility, multiple USB Type-A and USB 2.0 ports, and security lock options.

Advantages

The docking station is fully certified for Thunderbolt 5 to ensure compatibility and peak performance. An internal M.2 SSD slot allows straightforward storage expansion with PCIe Gen4x4 support for very fast read/write speeds. Front-facing USB-C ports provide power delivery to a laptop plus additional 30W to charge phones or tablets. The product includes a Thunderbolt Share license to connect two computers directly for fast file transfer and display control. Built with recycled materials (PCR) and equipped with standard and nano Kensington lock slots, the unit combines performance with practical security and sustainability features.

Suitable for

• Users who need to expand ports and connect multiple high-resolution displays
• Professionals requiring high-speed external storage via M.2 SSD (PCIe Gen4x4)
• Setups that demand high data transfer rates and Thunderbolt-certified compatibility
• Workstations needing wired Ethernet (including 2.5Gb support) and SD/MicroSD Express card access

Key specifications

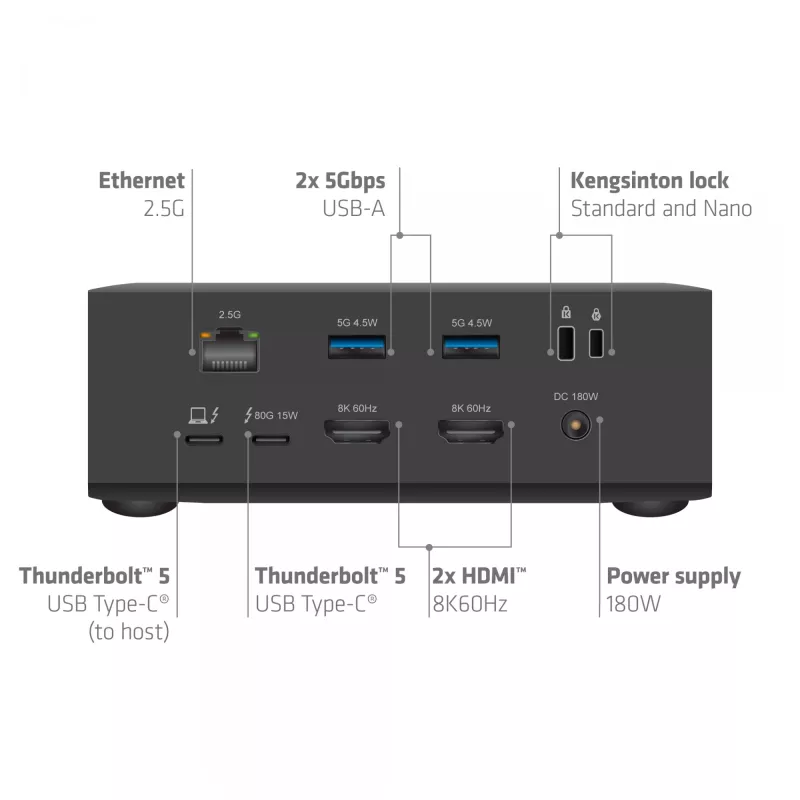

• Host interface: Thunderbolt 5; downstream Thunderbolt cascade up to 5 levels
• Data throughput: up to 120 Gbit/s (supports Thunderbolt 5 modes up to 80 Gbit/s or 120 Gbit/s)

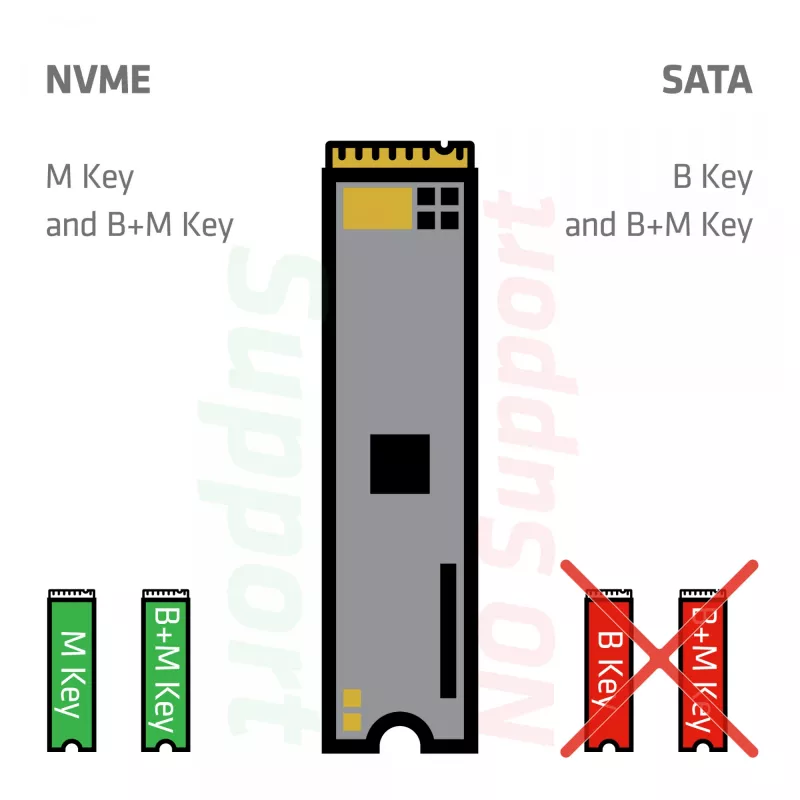

• M.2 SSD slot compatible with 2280/2260/2242/2230 sizes; PCIe Gen4x4 support with maximum read/write performance up to about 6000 MB/s

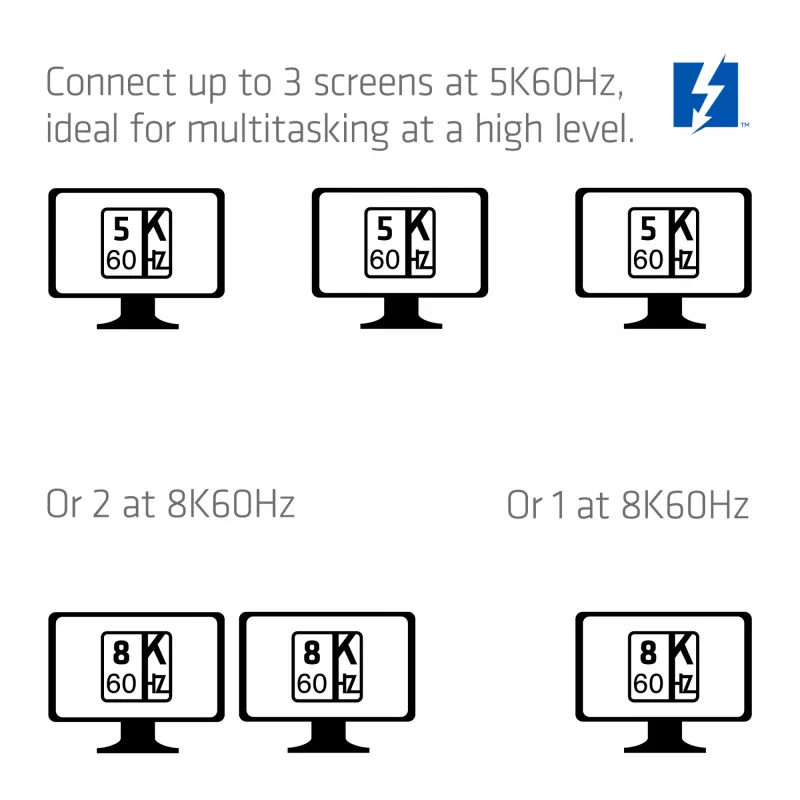

• Video outputs: 2× HDMI supporting up to 8K60Hz; single output up to 10K60Hz and multi-display modes (e.g., 5K60Hz or 4K144Hz for triple configurations depending on host)

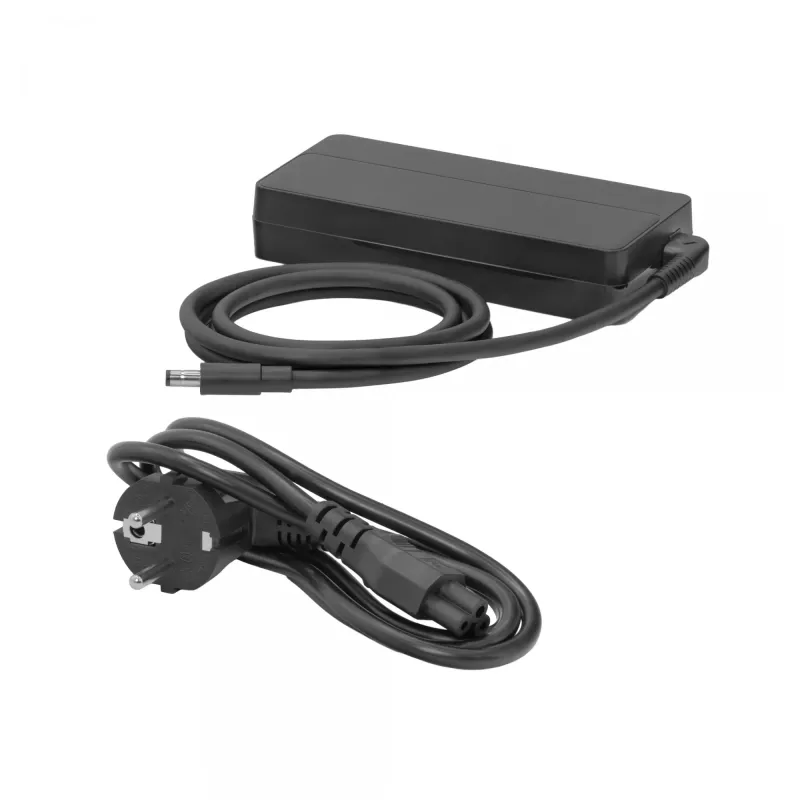

• Power: supplies up to 140 W to laptop via USB Power Delivery; 180 W external power adapter for hub and host

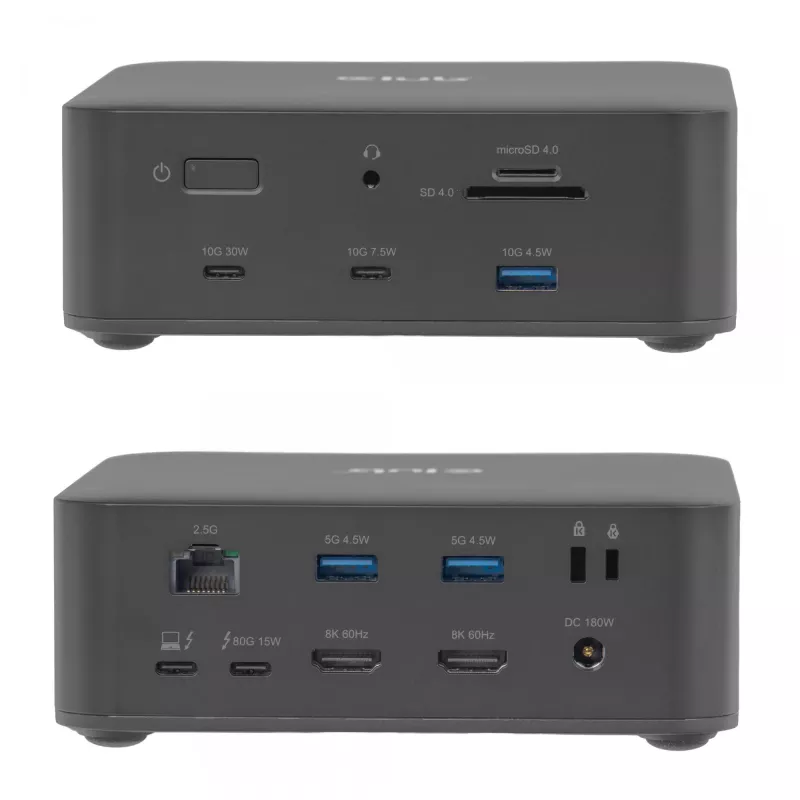

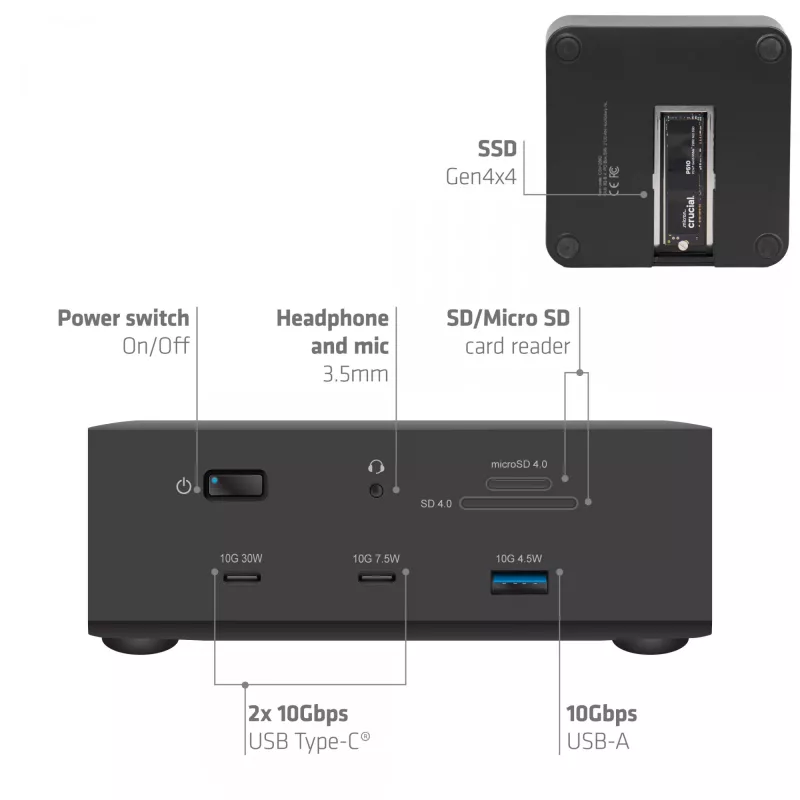

• Front USB-C ports: provide laptop power plus up to 30 W for phones/tablets
• USB ports: three USB 3.2 Gen1 Type-A and three USB 2.0 ports
• Card readers: SD and MicroSD Express compatibility
• Ethernet: supports 10/100/1000 and 2.5Gbit/s LAN
• Security: standard and nano Kensington lock slots

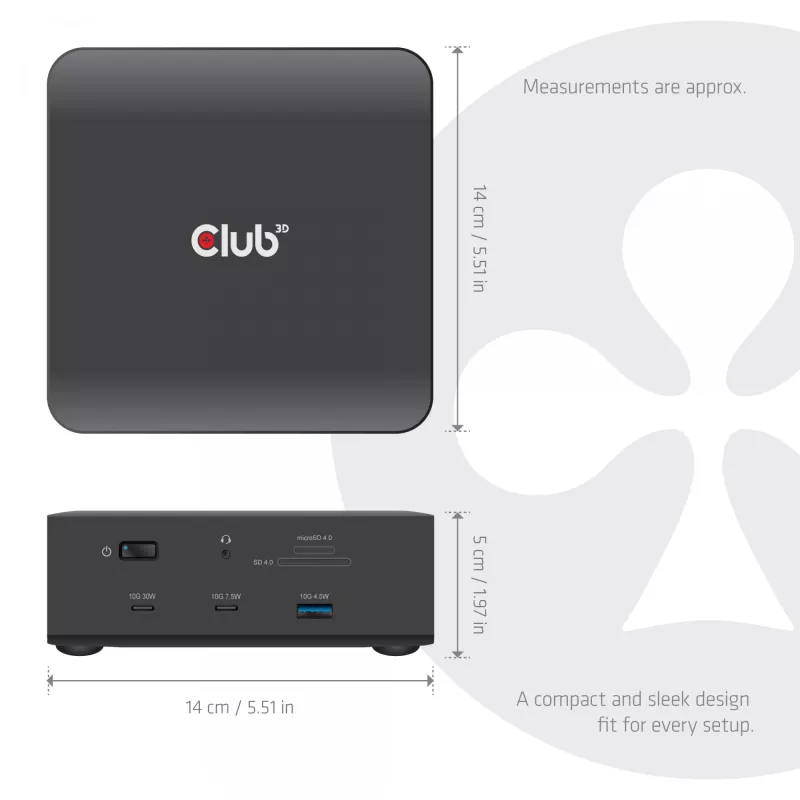

• Construction: made with recycled PCR materials; wired connectivity; weight ~0.794 kg; black color

How to use

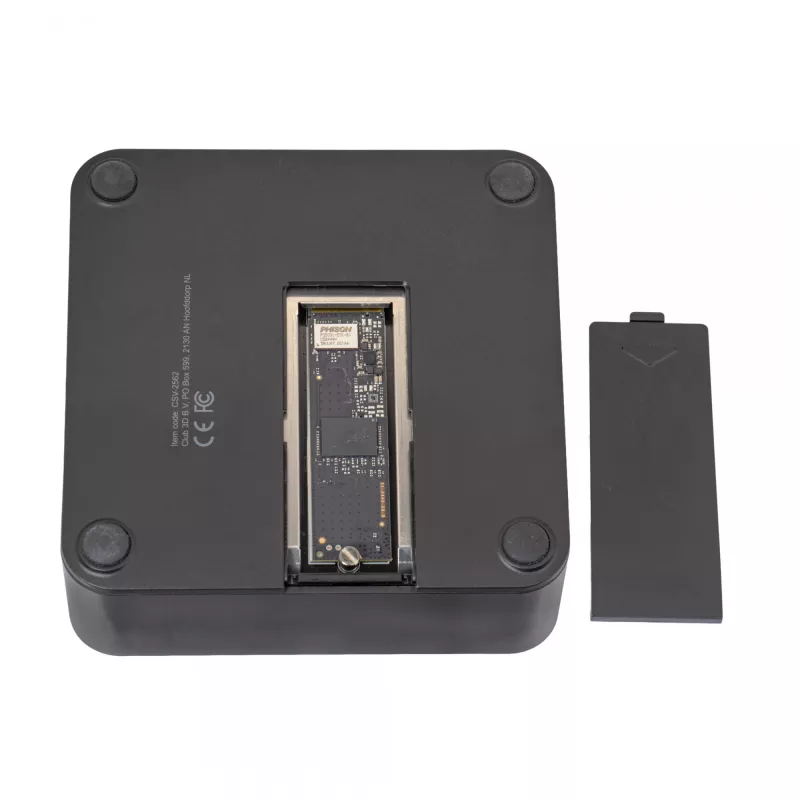

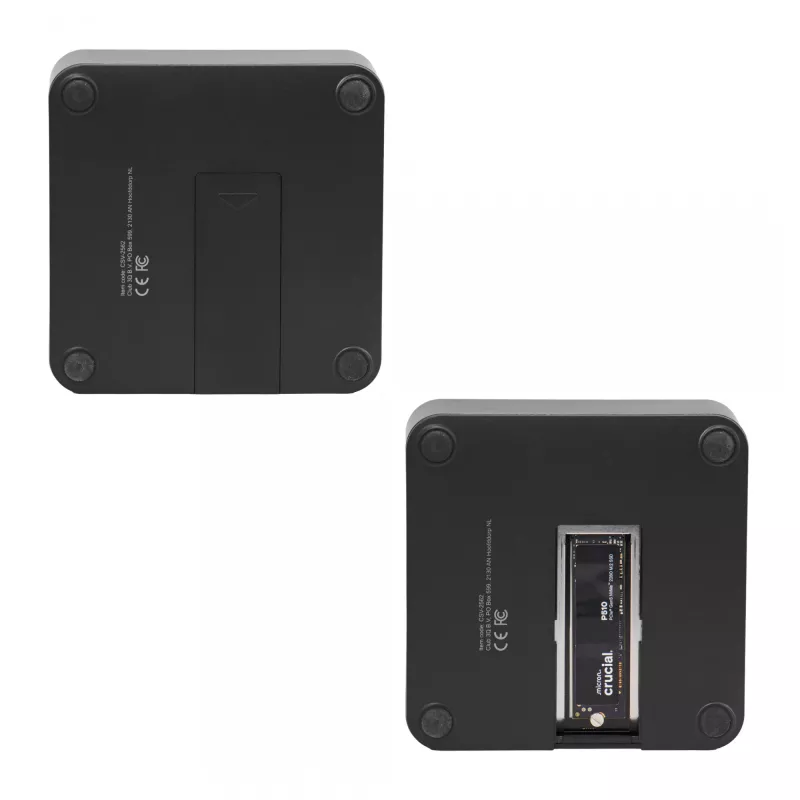

Install an M.2 SSD in the dedicated slot following the manufacturer’s instructions, ensuring the drive size (2280/2260/2242/2230) and PCIe Gen4 compatibility. Connect the dock to your computer using a Thunderbolt 5 host port and attach the external 180 W power adapter to enable full power delivery and hub functionality. Connect displays to the HDMI outputs and attach peripherals to the available USB Type-A or USB-C ports; insert SD or MicroSD Express cards into the card reader. Use the front USB-C ports to charge mobile devices while the main USB-C delivers laptop power.

Recommendations

For optimal performance, use Thunderbolt 5 or USB4 hosts with DP-Alt Mode support, install PCIe Gen4 M.2 SSDs for maximum storage speeds, and connect the supplied 180 W power adapter to ensure full power delivery to the laptop and connected devices. If using multiple high-resolution displays, verify host GPU and cable capabilities to achieve the desired resolutions and refresh rates.
